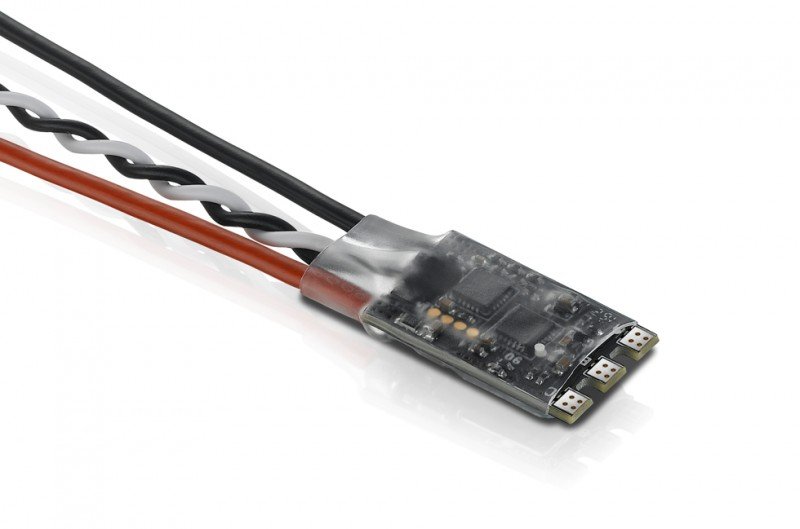

HOBBYWING XRotor micro 35A BLHeli - 30901070  [HW-30901070]

Super Small & Light

ESCs with exceedingly little size and lightweight are
particularly made for competition FPV drones.

Quality Components

The usage of F396 48MHz MCU, introduced MOSFETs (Toshiba MOSFETs for
20A &35A ESCs, Fairchild MOSFETs for 30A ESCs), ceramic capacitors
and 3-in-1 drive IC , 3-ounce copper, 4 layers of PCBs alongside
quality elements guarantees less heat, greater effectiveness and rapider response.

BLHeli Firmware Ready

Users can flash or upgrade the BLHeli firmware via the indicator cable (on ESCs), and system 4 ESCs on top of that after
connecting their trip controller on BLHeliSuite pc software whenever journey controller uses the CleanFlight firmware.

Damped Light Mode &
OneShot125 Mode Supported

Damped light mode improves the engine retardation and allows
users to brake the FPV drones better. Active-freewheeling
technology improves driving effectiveness, journey sometime heat
dissipation. The ESCs assist OneShot125 higher rate throttle
sign and regular throttle indicator (within 500Hz) modes.

Twisted-Pair Signal Cable Reduces Interference

The twisted-pair throttle indication cable effectively decreases disturbance manufactured in alert
transmission and makes the journey more stable and dependable.

Specifications

• Cont./Peak active : 35A/50A
• LiPo Cells : 3-6S LiPo
• BEC manufacturing : No

Wires & Connectors

• Output Wires : No cables but solder tabs
• Input Connectors : No
• Output Connectors : No
• Throttle quantity Calibration : Supported
• Stick Programming : Stick Programming/BLHeliSuite
• DEO : maybe not Supported
• OneShot Mode : Supported
• Timing : Supported
• Light colors : perhaps not Supported
• Motor Rotation : Supported

Size & Weight

• Size : 36.5x16.7x5.5mm
• Weight : 10g

Applications

• FPVs with 150-330mm Diagonal Wheelbase
