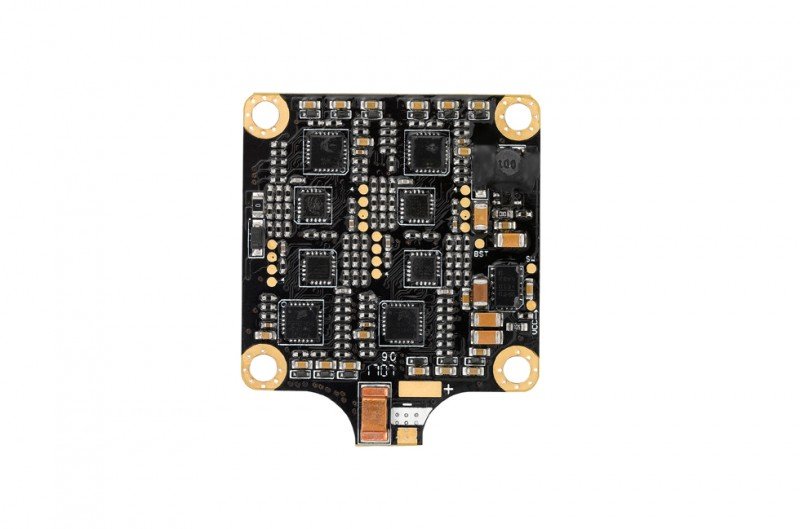

Exceptionally included & Compact
The 4-in-1 ESC not merely includes 4 superior 40A ESCs, 1 integral BEC,
and also an Amp/Volt monitoring slot enabling FC prize the volt & amp
instantly (on condition your FC supports this function); it’s only a
FC for FPV(s) and easy for installation and wiring. Utilizing the remarkably little
size, it's outstanding match for competition FPV(s).
Top-notch Components
The use of EMF8BB21F16G MCUs using the running regularity since high as
48MHz, introduced high-quality MOSFETs, 3-in-1 drive ICs and ceramic
capacitors, 3-ounce copper, and 6 levels of PCBs guarantees less temperature,
greater effectiveness and rapider response.
BLHeli-S Firmware Ready
The ESC (with great performance and rich functions)
makes use of the first BLHeli-S firmware and supports adjusting
parameters or upgrading firmware via various strategies
(efficiently placed. via throttle signal cable with utilizing other development
board or a FC flashed using the cleanfight/betaflight firmware).
DShot150/300/600 Ready
Besides the traditional PWM mode,
Oneshot125/Oneshot42/Multishot modes, the modern
DShot150/300/600 modes may also be supported. In
DShot150/300/600 modes, the ESC has great
anti-interference performance and fast response.
Hardware Generated PWM &
Damped Light Mode
The ESC firmware makes use of gear produced engine pwm for smooth
throttle reaction and quiet procedure. Damped light does regenerative
breaking, causing extremely fast engine retardation, consequently inherently in addition
does active freewheeling.
Specifications
- Cont./Peak active : 40Ax4/50Ax4
- Input Voltage : 2-5S Lipo
- BEC output : 5V & 1.5A
Wires & Connectors
- Input cables : Red-14AWG-130mm / Black-14AWG-130mm
- Output Wires : No wires but solder tabs
- Input Connectors : XT60 (w/ cables Soldered on)
- Output Connectors : No
- Firmware : BLHeli-S A-H-50 16.5
- ESC Programming : Stick Programming, BLHeliSuite
- Stick Programming : Supported
- DEO : Supported
- Throttle volume Calibration : Supported
- Oneshot125 Mode : Supported
- Oneshot42 Mode : Supported
- MultiShot Mode : Supported
- DShot150/300/600 : Supported
- Timing : Supported
- Motor Rotation : Supported
Size & Weight
- Size : 42.6x36x4mm
- Weight : 10g
