Effective Hardware &
Original Third-generation BLHeli_32 Firmware
The use of superior 32-bit supply microprocessor (which runs at 48MHz),
brought in exceptional MOSFETs (Fairchild) & ceramic capacitors, 3-in-1 drive ICs,
3-ounce copper, 4 degrees of PCBs, besides the third-generation BLHeli (BLHeli_32 firmware)
creates an ESC with additional functions & better performance especially for FPV drones.
Hardware Generated PWM & Damped Light Mode
The ESC firmware utilizes gear generated motor PWM for smooth throttle response and peaceful
procedure. Damped light does regenerative breaking, causing quickly engine retardation, therefore
inherently also does active freewheeling.
Multiple Programmable Items
The initial BLHeli_32 firmware enables users to be able to link four
ESCs in direction of FC flashed utilizing the Cleanflight/Betaflight
firmware via indicator cables (concerning the ESCs) establishing fundamental
parameters of ESCs at precisely the same time, upgrade the firmware
or adjust advanced parameters on the web at exactly the same time.
Several Protections
Multiple security functions like motor
lock-up security, heat security,
low RPM power security, low-voltage
safety and current safety effectively
prolong the answer life associated with ESC.

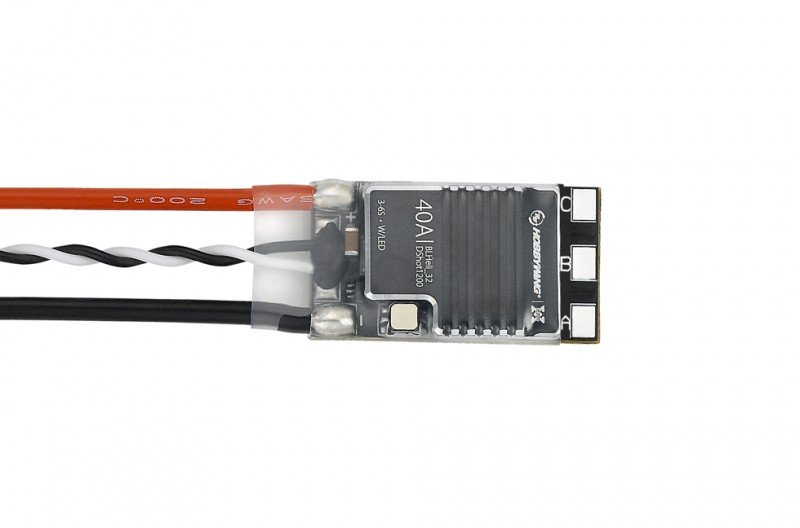

Light-emitting Diode Indicator (just the XRotor 40A
BLHeli_32 has it) & Beacon Functionality
The light color connected with Light-emitting Diode indicator on ESC is adjustable.
The Beacon functionality, that may drive the engine to beep if throttle indicator has
been zero for many time, effortlessly assists finding lost crafts.
Specifications
- Cont./Peak active : 40A / 60A
- LiPo Cells : 3-6S Lipo
- BEC production : No
Wires & Connectors
- Output Wires : No cables but solder tabs
- Input Connectors : No
- Output Connectors : No
- Firmware : BLHeli_32
- ESC Programming : Supported
- Stick Programming : BLHeliSuite
- DEO : Supported
- Throttle volume Calibration : Supported
- Oneshot125 Mode : Supported
- Oneshot42 Mode : Supported
- MultiShot Mode : Supported
- Timing : Supported
- Motor Rotation : Supported
Size & Weight
- Size : 32.7x18.4x6.2mm
- Weight : 11.5g
