Dshot 150/300/600, Oneshot125,
Oneshot42, Multishot Modes Supported
Besides the newest Dshot 150/300/600 mode, the ESC also supports
regular PWM (1000µs -2000µs) mode, Oneshot125 (125-250µs) mode,
Oneshot42 (42-81µs) mode and Multishot (2-25µs) mode.
Super Small & Light

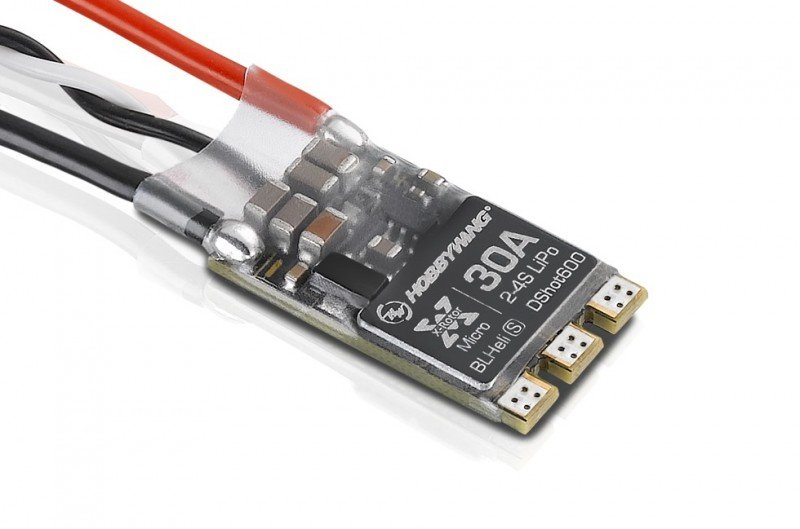

With the remarkably little size (23.8x14.5x5.8mm) and lightweight (6g),
XRotor Micro BLHeli-s 30A DShot600 is an ESC specially made for competition FPV drone(s).
Quality Components
The using EMF8BB21F16G MCU (as a consequence of running regularity of up to 48MHz),
united states of america Fairchild MOSFETs, introduced 3-in-1 drive IC and quality ceramic
capacitors, 3-ounce copper and 4 examples of PCBs guarantees less heat, greater
effectiveness and rapider response.
BLHeli-S Firmware Ready
The ESC supports initial BLHeli-S firmware. Users can flash or upgrade the firmware through
indicator cable (on ESC) and plan 4 ESCs also after linking their journey controller on
BLHeliSuite software (in the event journey controller uses the CleanFlight or betaflight firmware).
Hardware Generated PWM & Damped Light Mode
The ESC firmware employs hardware released engine pwm for smooth throttle reaction and
peaceful procedure. Damped light does regenerative braking, causing rapidly engine retardation,
and yes it inherently additionally does active freewheeling.
Twisted-Pair Signal Cable Reduces Interference
The twisted-pair throttle sign cable effortlessly decreases interruption manufactured in alert
transmission and makes the journey much more stable and dependable.
Specifications
- Cont./Peak active : 30A/40A
- Input Voltage : 2-4S LiPo
- BEC manufacturing : No
Wires & Connectors
- Input Wires : Red-18AWG-100mm*1 / Black-18AWG-100mm*1
- Output Wires : No cables but solder tabs
- Input Connectors : No
- Output Connectors : No
- Firmware : BLHeli-S A-H-50 16.5
- ESC Programming : Stick Programming, BLHeliSuite
- Stick Programming : Supported
- DEO : Supported
- Throttle number Calibration : Supported
- Oneshot125 Mode : Supported
- Oneshot42 Mode : Supported
- MultiShot Mode : Supported
- DShot150/300/600 : Supported
- Timing : Supported
- Motor Rotation : Supported
Size & Weight
- Size : 23.8x14.5x5.8mm
- Weight : 6g
