Effective Hardware for extremely fast working Speed
The STM32F405 MCU, which features effective computing capability & super working price,
along with the high-sensitivity ICM20602 6-axis motion sensor supports 32KHz PID controller &
gyro. The built-in OSD chip enables users to improve or set OSD parameters through
Betaflight/Cleanflight/Butterflight/invaflight pc software or transmitter effortlessly. The interior TF-card
expansion slot permits users to place a SD card to record more trip information.
Revolutionary Shock-absorbing Structure
The Innovative linking method via a soft cable (*it increases outcomes
whenever pairing because of the XRotor Micro 45A 4in1 BLHeli_32 DShot1200)
together with shock-absorbing design of mounting holes
effectively decreases the impact high-sensitivity FC elements
from outside shock to generate every journey more stable and accurate.
On-board Filter Circuit

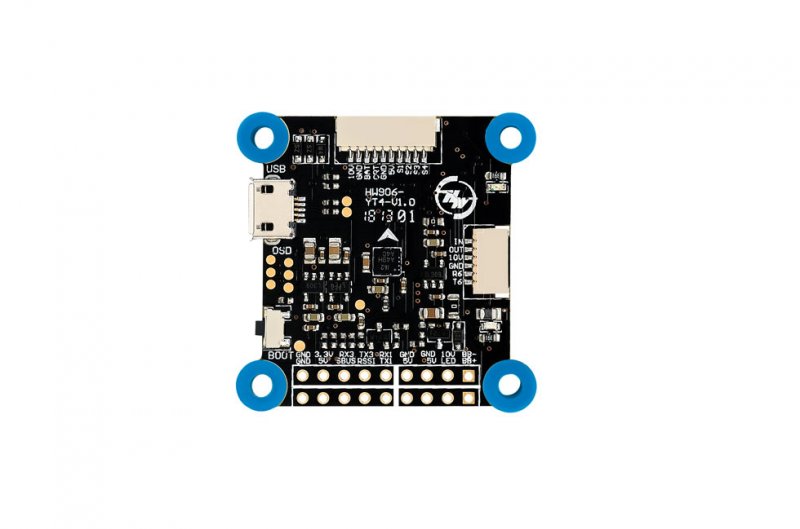

The XRotor Micro-F4-G2, which integrates with a filter circuit
module (*it merely functions whenever pairing with the 10V BEC about the
XRotor Micro 45A 4in1 BLHeli_32 DShot1200), provides purer
powering condition for VTX to produce images more clear and stable.
A few Throttle Signal
Modes Supported
Besides the modern DShot 150/300/600/1200
high-speed electronic throttle indicator modes in addition to the
Proshot1000 blended throttle indicator mode, the
Oneshot125/Oneshot42/Multishot and regular PWM
throttle indication modes can also be supported.
Several FPV Firmware Supported
The XRotor Micro-F4-G2 not just supports many main-stream FPV firmware like BetaFlight, Cleanflight,
Butterflight and invaflight, and permits users to change or set parameters through matching
pc software. All of this makes the gear more relevant to different FPV roadways & race.
Compatible(due to the Hobbywing 4IN1 ESC&VTX)
It’s very easy to wire and install whenever combining the FC with a Hobbywing 4-in-1 tower ESC & a HOBBYWING VTX (movie Transmitter).
Item Specification
Basic Features
- Compatible with (Multirotors) : Quadcopter
- Firmware : OMNIBUSF4SD
- FC Programming : Supported
- Programming via : Betaflight/Cleanflight-configurator or Others
- Compatible with (Modes) : PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300,
Dshot600, DShot1200, Proshot1000 and etc. - suitable for (Transmitters) : PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL, and etc.
- OSD : Built-in
- Voltage Monitoring : Supported
- Current Monitoring : Supported
- External Buzzer : Supported
- LED Control : Supported
- BEC : No
- USB Port : MicroUSB
Size & Weight
- Size : 36*36mm
- Weight : 6g
