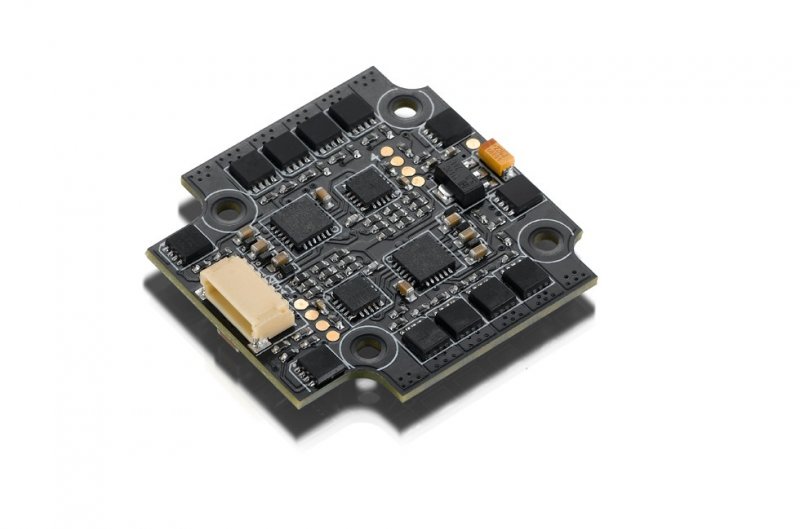

HOBBYWING XRotor Nano 20A 4in1 BLHeli-S DShot600 - 30901068  [HW-30901068]

Seriously incorporated & Compact

The XRotor Nano 20A 4in1 BLHeli-S DShot600 not only includes 4
superior 20A ESCs, and a volt monitoring slot permits FC to
monitor the voltage instantly (on condition your FC supports this function).
As a result of very tiny size, the installation and wiring may be fairly simple
and simple whenever combining it due to the Hobbywing XRotor Nano Flight Controller.
It’s an ESC particularly created for super mini-sized interior FPV(s).

Top-notch Components

The usage of EMF8BB21F16G MCUs due to the working regularity totally to
48MHz, introduced top-notch MOSFETs, 3-in-1 drive ICs and ceramic
capacitors, 3-ounce copper, and 6 levels of PCBs guarantees less heat,
greater effectiveness and rapider reaction.

BLHeli-S Firmware Ready

The ESC (with great performance and rich functions)
utilizes the first BLHeli-S firmware and supports adjusting
parameters or upgrading firmware via various strategies
(this basically means. via throttle signal cable with utilizing other development board
or a FC flashed due to the Cleanfight / Betaflight firmware).

DShot150/300/600 Ready

Besides the normal PWM mode,
Oneshot125/Oneshot42/Multishot modes, the most recent
DShot150/300/600 modes may supported. In
DShot150/300/600 modes, the ESC has great
anti-interference performance and fast response.

Hardware Generated PWM &
Damped Light Mode

The ESC firmware uses gear produced engine pwm for smooth
throttle response and calm procedure. Damped light does regenerative
breaking, causing quickly engine retardation, and it inherently furthermore
does active freewheeling.

Specifications

• Cont./Peak active : 20Ax4/ 30Ax4
• Input Voltage : 2-4S Lipo
• BEC output : No

Wires & Connectors

• Input cables : Red-16AWG-85mm/ Black-16AWG-85mm
• Output cables : No cables but solder tabs
• Input Connectors : No
• Output Connectors : No
• Firmware : BLHeli-S A-H-50 16.5
• ESC Programming : BLHeliSuite
• Stick Programming : Supported
• DEO : Supported
• Throttle number Calibration : Supported
• Oneshot125 Mode : Supported
• Oneshot42 Mode : Supported
• MultiShot Mode : Supported
• DShot150/300/600 : Supported
• Timing : Supported
• Motor Rotation : Supported

Size & Weight

• Size : 32x31.9x5.8mm
• Weight : 6g

Applications

• 130-280mm FPVs
