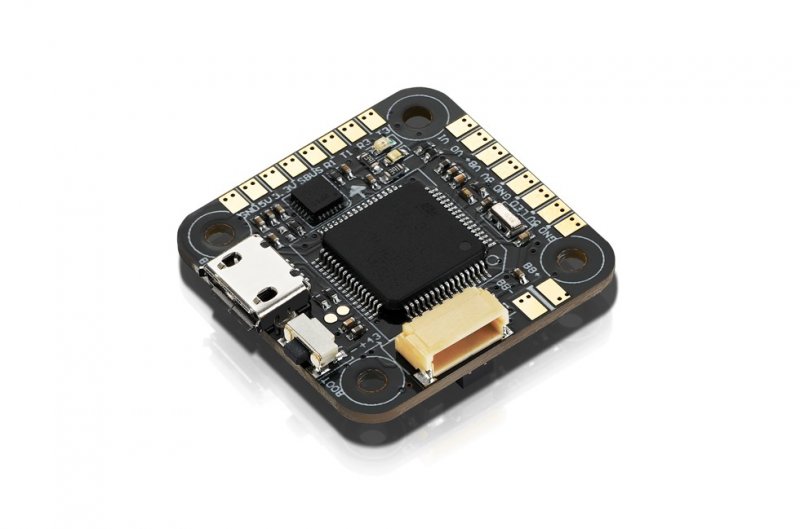

HOBBYWING XRotor Nano F4 Flight Controller - 31001001  [HW-31001001]

Small(er) Size

With the severely tiny size, perhaps it's setup on
more mini-sized airframe (simply put. 130mm or below) plus
features most of the functions that regular FC for FPV(s) has.

DShot 150/300/600/1200
Modes Supported

Besides the typical PWM mode,
Oneshot125/Oneshot42/Multishot modes,
the current DShot150/300/600 modes are
also supported.

Extremely fast working Speed

The STM32F405 MCU which features the effective
computing ability and intensely fast working cost can
provide PID controller with greater cyclic regularity &
the gyro with higher refresh rate.

Built-in BEC & OSD

The built-in BEC (5V/1.5A) provides
power for various electronics;
the internal OSD allows users to change
or set all OSD parameters through
Betaflight/Cleanflight computer programs effectively.

Betaflight/Cleanflight Firmware Supported

The trip controller supports the Betaflight/Cleanflight firmware and enables users
to change or set various parameters through the Betaflight/Cleanflight computer software effortlessly.
it really is appropriate toward FPV journey & rushing.

Appropriate Hobbywing XRotor Nano 4in1 ESC

When combining the Nano Flight Controller F4 aided by the Hobbywing XRotor Nano 4in1 ESC,
the wiring & installation can be extremely simple and quick.

Item Specification

Basic Features

• Compatible with (Multirotors) : hexacopters
• Multi-rotor Type : Quadcopters
• FC Programming : Supported
• Programming via : Betaflight/Cleanflight-configurator
• Compatible with (Modes) : PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300,
  Dshot600, Dshot1200, Proshot1000
• Compatible with (Transmitters) : PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL
• OSD : Built-in
• Voltage Monitoring : Supported
• Current Monitoring : Supported
• External Buzzer : Supported
• LED Control : Supported
• BEC : 5V @ 1.5A
• USB Port : MicroUSB

Size & Weight

• Size : 27x27mm
• Weight : 3.3g
