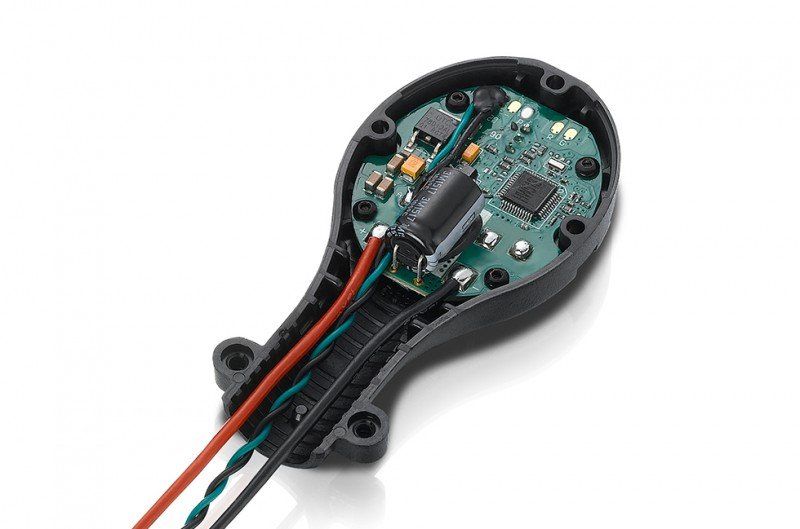

HOBBYWING XRotor PRO 25A Circular (Black Color)- 30902022  [HW-30902022]

Effortless Installation

Motor could possibly be closely set up regarding the ESC, which notably simplifies wiring and
setting up the propulsion system.

Popular Choice

The mount is excellently appropriate the absolute most used 16mm
(outer diameter) carbon fibre supply pipeline.

Exemplary Protection

The included framework the ESC and motor mount has
exceptional dustproof and splash evidence protection.

DEO Technology

The DEO (Driving effectiveness Optimization) technology implemented
into the ESC has many advantages:
● Active braking. Whenever reducing the throttle quantity, the engine will
decelerate quickly. This function enables pilots to easier
perform all maneuvers like razor-sharp turns, altitude changes, and
unexpected braking.
● greater driving effectiveness, a lot longer journey time.
● Lower ESC temperature and a far more dependable procedure .
* various organizations call this technology by different names;
“SimonK” calls it “Comp_PWM”, “BLHeli” calls it “Dampaning-light”
and Kontronik calls it “Active Freewheeling”.

A facile task to Use

Highly smart and adaptive standard settings like
auto-adjusting timing for easy procedure.

Item Specification

Product Number

Specifications

• Cont./Peak Current : 25A/40A
• LiPo Cells : 3-6S LiPo
• BEC production : No

Wires & Connectors

• Input Wires : Red-18AWG-300mm*1/Black-18AWG-300mm*1
• Output Wires : No
• Input Connectors : No
• Output Connectors : No

Features

• Throttle Range Calibration : Supported
• Stick Programming : Supported
• DEO : Supported
• OneShot Mode : not Supported
• Timing : Supported
• Light colors : perhaps not Supported
• Motor Rotation : perhaps not Supported

Size & Weight

• Size : 89.3x44.5x20.9mm
• Weight : 50.5g(w/ Engine Mount)
