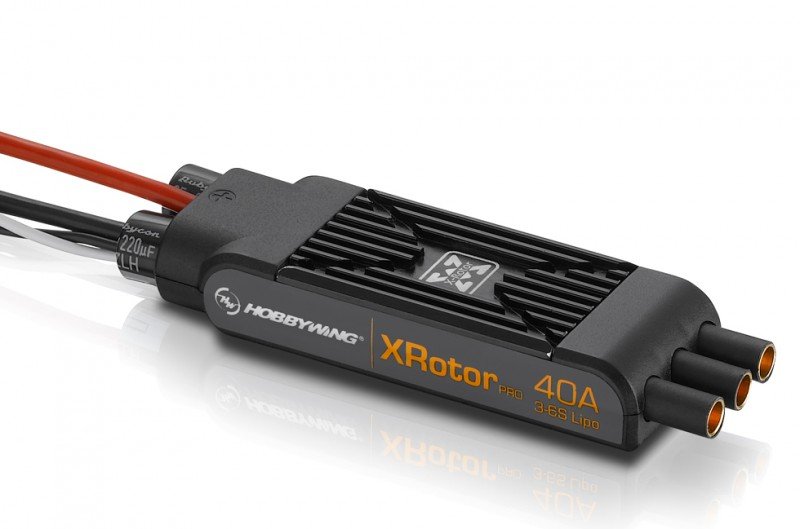

HOBBYWING XRotor Pro 40A (Version A) - 30902042  [HW-30902042]

Newly Designed Shape

A unique structural design that is enclosed within an
exquisite solid artificial instance providing you with the all-round protection
and safety the ESC. The newly produced ESC
is definitely put into a carbon-fiber pipe using the I. D. of 23mm.

Vehicle Timing modification & Preset Parameters for definitely
smart Operation

Auto timing modification and preset parameters
relevant on most applications acutely
simplify operation and optimize customer experience.

Original Core Program for fast Throttle
Response

The multi-rotor has made the need over ESC effect become even harsher than typical.
Our newly unique core system for quick throttle response cost means a more stable hover and
fast movement during journey. Combined with the XRotor 3D and expert show ESC’s groundbreaking quick reaction price,
the ESC was made for difficult and fresh challenges comfortable.

Driving effectiveness Optimization(DEO)
tech for Better Performance

Driving effectiveness Optimization (DEO) Technology is used for a heightened driving effectiveness

Open Cooling Fin

A high-performance aluminum folded fin temperature sink is combined
utilizing the particularly produced heat-conductive slotted framework that
brings excellent heat-dissipating impact. This is an exceptionally
Simplified Operational Procedure.

Specifications

• Cont./Peak active : 40A/60A
• LiPo Cells : 3-6S LiPo
• BEC production : No

Wires & Connectors

• Input cables : Red-16AWG-500mm*1/Black-16AWG-500mm*1
• Output cables : Black-16AWG-75mm*3
• Input Connectors : No
• Output Connectors : 3.5mm silver Connectors (Female)
• Throttle number Calibration : Supported
• Stick Programming : Supported
• DEO : Supported
• OneShot Mode : perhaps not Supported
• Timing : Supported
• Light colors : maybe not Supported
• Motor Rotation : perhaps not Supported

Size & Weight

• Size : 66.0x21.8x11.0mm
• Weight : 50g

Applications

• 550 Course Multirotors
