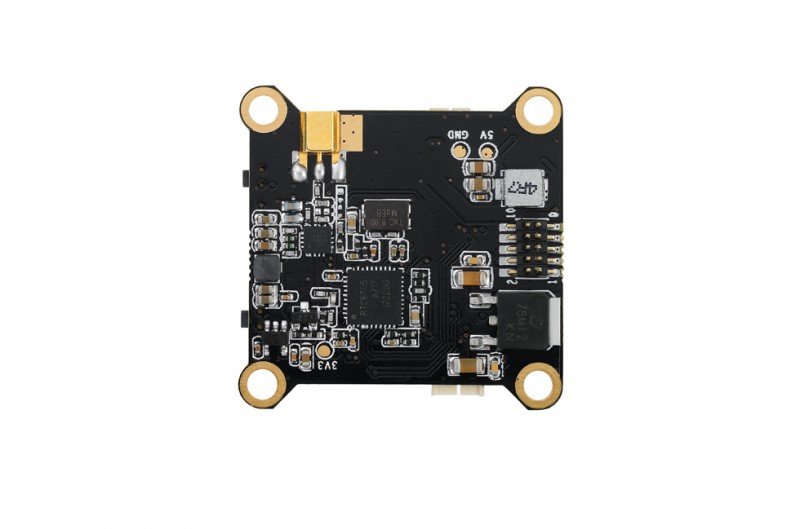

HOBBYWING XRotor Video Transmitter - 30505000  [HW-30505000]

Tiny Size & Exquisite Design

The STM32F405 MCU which features the effective computing capability and super-high
working regularity enables the FC to execute the PID and gyro with greater regularity.

Voltage-regulating Filter,
Adjustable Transmitting energy &
Adjustable Voltage for Camera

The included voltage-regulating filter isolates the interruption
the energy system through VTX to make sure the image remains
clear and stable in the event that aircraft flies at higher level. The
adjustable transmitting power (0/25mW/200mW) and
stable production power guarantee long transmission distance.
For different applications, the supply voltage the digital camera
is adjustable between 5V and 12V.

48 Adjustable Frequencies & Race Bands Supported

The 6 regularity groups with 8 systems in each group form 48 frequencies; the frequency circulation is
highly relevant to countless getting gear. Among the regularity teams, group D and team F are
regularity groups for competition; users may use the 8 frequencies in identical group also
without fretting about interference.

Stack-up Installation Supported

When combining the VTX because of the Hobbywing F4 flight controller
and XRotor Micro 40A 4-in-1 ESC, the installation is incredibly
incorporated, easy and simple convenient, and makes the aircraft
more appropriate towards FPV Racing.

Item Specification

Part No.

• 30505000

Basic Features

• Input Voltage : 7-25V
• Current : 70mA / 100mA / 250mW @ 12V
• Output Voltage : 5V/12V Adjustable (limited by powering the webcam)
• Transmitting power : 0/25mW/200mW Adjustable
• Transmitting Frequency number : 5.3GHz-5.9GHz
• Transmitting Frequencies : 48 Frequencies Adjustable
• Antenna Connector Type : MMCX-to-SMA (a MMCX-to-SMA cable is roofed in box)

Size & Weight

• Size : 36x36mm
• Mounting Holes : 30.5x30.5mm
• Weight : 5g
