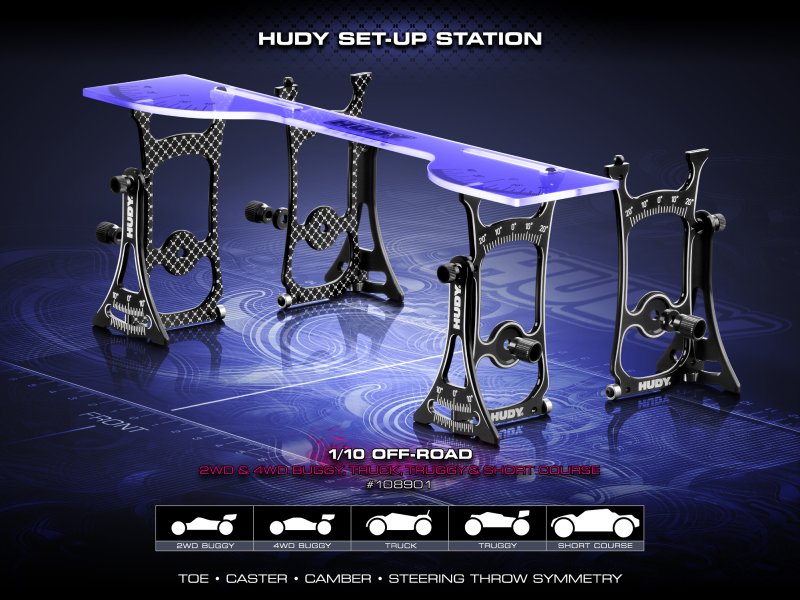

The HUDY Set-up facility for many 1/10 off road cars is an essential set-up device ideal for a complete suspension system system geometry modification. The Set-up facility is used determine and change leading & straight back toe, caster, camber, camber gain and steering throw symmetry.
HUDY Set-up stations are getting to be market standard after more than 30 years as the utmost popular set-up tools in RC world. Acquiring the proper automobile setup is one of the most critical indicators in winning occasions which explains why HUDY Set-up networks are employed by your whole earth Champions.
The actually really stands are CNC-machined from high-grade Swiss 7075 T6 aluminum, black colored coated and laser etched from both sides. The upside measure meal ideal for toe/steering modification is CNC-machined from tough acrylic synthetic and features printed scratch resistant scales.
The Set-up center includes aluminum construction peanuts for quick and straight-forward "one screw" construction. The 12 high-precision ball-bearings guarantee backlash-free & wobble-free procedure and ultra-precise set-up customizations.
Your whole system is quite tiny, light, and well-designed for easy transport towards track.
This universal Set-up center fits all standard 1/10 down road 2WD and 4WD automobiles. The included Upside Measure meal in #108901 Set-up center fits all standard 1/10 down road 2WD and 4WD automobiles. To utilize this Set-up target 1/10 off road arena vehicle, truggy and brief system automobiles, the optional #108840 - Upside Measure Plate is employed.
Set-up facility is used for dimension and modification of:
- Camber & camber gain
- Caster
- Front and back toe
- Steering throw symmetry
Main features:
- Must-have set-up device for an entire suspension system system geometry adjustment
- fast and straight-forward "one screw" assembly/disassembly
- Backlash-free, wobble-free mounting
- totally ball-bearing prepared set-up actually appears (12 high-precision ball-bearings)
- Ultra-smooth, ultra-precise motion and procedure
- CNC-machined from high-grade premium Swiss 7075 T6 aluminum
- CNC-machined upside measure dish kind tough acrylic synthetic
- All elements have in fact in fact prevision engraving for instant & trustworthy readings
- keeping package with foam inserts for safe room for storing & transport
- top-notch, super precision & endurance
- business standard for set-up tools since 1992
Includes:
- 4 set-up appears with installed ball-bearings
- 4 camber gauges (triangular) with create ball-bearing
- 4 construction peanuts
- 4 wheel peanuts
- 2 aluminum shims (5x11.8x4mm) to be utilized in line with the offset
- 1 acrylic upside measure meal
- Set-up Book
- keeping industry with foam inserts for smart & secure storage space and transportation
