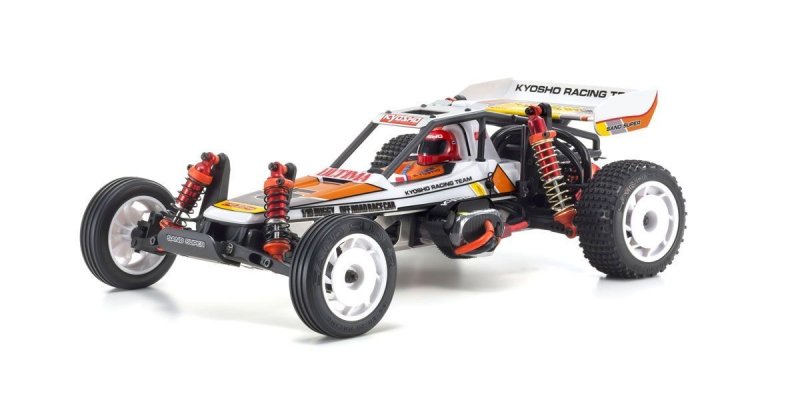

Kyosho 30625 - 1/10 Ultima EP 2WD Off-Road Racer Buggy [KY30625]

Price:

NZD$468.88

Brand:

Kyosho

Model:

KY30625

GTIN:

4548565369539

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - Off-Road - Buggy - Electric Powered category

Write a review

alt="Kyosho 30625 - 1/10 Ultima EP 2WD Off-Road Racer Buggy" title="Kyosho 30625 - 1/10 Ultima EP 2WD Off-Road Racer Buggy"

Description

The outcome the ULTIMA’s dominantTQ & 1-2-3 finish on 2WD system at 2nd Electric Off program World Championship in England in 1987 completed up being sensed through RC vehicle scene. Now Kyosho’s famous ULTIMA turns straight back the clock featuring its return even though 8th model inside Kyosho Vintage Series! Now Kyosho’s famous ULTIMA turns right back the clock featuring its return because 8th model within the Kyosho Vintage Series!
First circulated in 1986, the 2WD ULTIMA channeled rushing technology through OPTIMA into an electric competition buggy whirlwind that swept around the world. Good Vintage Series, the 2019 ULTIMA variation is promoting in design and build to meet with performance criteria for contemporary R/C battle circuits and power sources. For example, the monocoque framework comprises aircraft grade A60601T6 aluminum alloy and multi-pin block pattern straight back tires deliver optimal performance on modern off road songs. Complete ball bearing specs reduce drive loss and complement high-durability sintered alloy steel gears, slipper clutch and motor guard to shield the drive system while crash-resistant resin straight back wing are included.
Relive the nostalgia with this ULTIMA’s glory utilising the 2019 variation with progressed into a modern-day competition unit that allows anyone to drive like some kind of champ.

ULTIMA is faithfully recreated, with component improvements for compatibility with contemporary power sources.

Polycarbonate human anatomy with motorist cockpit recreates the design and environment the initial ULTIMA.

Full ball bearing specs (14)

Equipped with battery pack guard that prevents battery power fast circuit during a collision.

A monocoque framework created from tempered A6061T6 pressed clear anodized aluminum alloy ideal for aircraft make combines with a glass strengthened resin top deck to produce light-weight and durability for difficult driving. The battery power remain works and battery power sorts and utilizes a hook & duration fastener (includes battery band printed with KYOSHO company logo) for effortless battery pack mounting.

Front and straight back increase wishbone suspension system adopts the proven OPTIMA design. Comparable front-rear geometry assures managing protection anyhow speed ranges. Impact-resistant nylon paid down supply combines with steel pole upper arm make it possible for camber modification. Upgrade with optional titanium adjust pole 38mm (No.92413) for both front component and rear.

The same big capability 12mm diameter oil shocks because OPTIMA deliver superior running security over uneven areas. Long type nylon resin molded shock tower allows tuning for modern RC battle circuits. Upgrade with optional silver shocks OTW128 (F) and OTW129 (R).

Optimized geometry with aluminum steering hyperlink and steel bushings aided by the servo saver including aluminum pipeline and metal springtime design within current competition buggies, provides stable and exact steering feel. Upgrade with optional ball bearings and titanium adjust pole 50mm (No.92416).

Toe angle settings inside the rear hub businesses are set to 1.0°, 2.0°, 2.5°by changing resin bushings. Detail by detail settings may be adjusted good specific rushing conditions.

Gear module happen changed to 48-pitch through initial model’s 8-pitch to offer paid down drive loss. As well as the newly produced 46 nylon 57T very first gear, all the gears are upgraded towards the sintered metal gears from OPTIMA. Upgrade with optional diff OTW101 to boost driving feel.

Gearbox has slipper clutch to shield the gearbox and drive system from unforeseen load customizations such as for example jump landings. A simple task to modify and adaptable to various competition conditions. Upgrade with optional slipper pad (SCW021 HD) for compatibility with higher energy and hard driving.

Included motor guard (had been merely available as optional enhance in regards to the initial ULTIMA) is manufactured from A6061T6 product while offering increased durability. Resin wing mount provides selection of 2 height settings and angle might set between 3 ° - 6 ° with shims. Previously made out of polycarbonate, the resin wing delivers improved crash opposition. And white, there are 5 color choices to include extra design to your unit.

Rear tires work optimized multi-pin pattern to create stable hang on numerous areas including been recreated in the image regarding the initial difficult block tires. Upgrade with optional OTT244S (smooth) and OTT244H (difficult) tires. High rigidity one-piece tires exchange the 50mm three-piece tires making use of this initial Ultima. Along with white, there is 3 color options to select from.

TECHNICAL INFORMATION

Length: 370mm
Width: 244mm
Height: 106mm
Wheelbase: 260-263mm
Tread (F/R): 206mm / 208mm
Tire(F/R): 75f x 20mm / 82f x 36mm
Gear Ratio: 8.64:1
Weight: approx. 1,500g
motor: 540 program size

KIT CONTENT

Pre-assembled kit
Polycarbonate clear body
Decals
Chassis parts
Cross wrench
Shock wrench
Grease

REQUIREMENT TO EXECUTE

2ch 1 servo R/C system for cars
540 program motor
ESC ideal for motor used
Battery for framework suited to ESC used
Battery charger
Paint for polycarbonate body
Batteries for transmitter
