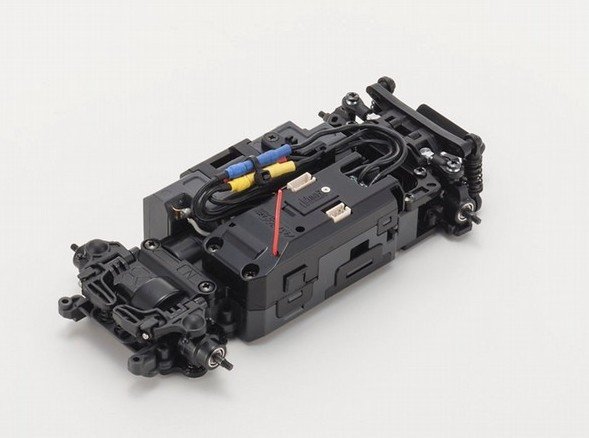

Kyosho 32170 - MA-020VE PRO Chassis Set Mini-Z AWD  [KY-32170]

The latest MINI-Z AWD framework evolves to your professional program!

Brushless engine power and AWD originated the MA-020VE recently and it's also evolving with a brand new higher level RC device installed. Along with the technical the different aspects of very first MA-020VE create, the modern variation features comparable MHS (MINI-Z Hybrid Spread Spectrum) 2.4GHz system placed on the MR-03VE professional. The mixture of brushless motor power and AWD along with the quickest control impact available makes this revolutionary product the utmost effective spec in its show. The MHS 2.4GHz system had been designed to be used along with the latest high-end SYNCRO EX-6 transmitter (provided individually) and offers impact 16 times faster in comparison with ASF 2.4GHz system and KT18 transmitter combination, and 4 times quicker compared to the KO EX-1. With faster processing rate and superior servo maintaining power, you can expect to locate lines through corners like no time before. Linear control feel plus the unique AWD traction performance give you the ultimate part in battle competition. As the framework matches the MR-03VE professional, it is suited to today's ASF 2.4GHz system so owners of KT-18 and KO PROPO EX-1 transmitters can instantly setup during pairing.

• The much-anticipated MA-020 framework set installed with brushless engine has turned up. Shaft drive AWD produces a development in driving performance.
• 8500kV XSPEED VE brushless engine providing you with drive power to any or all four tires will be the perfect match the AWD framework.
• Newly developed receiver target features area the optional gyro to be effortlessly bolted on and eliminated.
• DWS features downstop device, ball-connected system on suspension system system system shafts and friction damper that use oil to modify volume of damping force.
• VCS optimizes camber according to suspension system system system stroke to deliver sure-footed traction and grip.
• Brushless motor create on AW-020 framework as standard function.
• Incorporates the ‘VCS’ front suspension system system system from MR-03.
• Features back double wishbone suspension system system system (DWS).
• Comprehensive ball bearing requirements have 14 ball bearings.
• Designed with top address appropriate starting the optional gyro.
• ASF2.4GHz R/C system removes need to manage regularity bands. *Transmitter offered separately.
• Up to 40 cars could be run at the same time.
• Ultra quick indication processing price contributes to very nearly instantaneous control response.
• Shipped pre-assembled in slim tread and M size wheelbase setup.
• Includes components for changing to wide tread and elements for changing to L and LL wheelbases.
• Other developing modifications might be made utilizing I.C.S. USB adapter (offered independently).
• Using the narrowest 65mm framework design, many MINI-Z 01/015 human body designs are set up.
• Factory set steering with zero point demands.
• Control timing of reverse is adjusted.

Chassis Set Articles:

• Factory assembled framework with R/C product set up
• Pinion gears (15T, 17T, 19T, 21T)
• Spur gears for wheelbases: 27T, 29T, 31T for M, L, and LL correspondingly
• Parts for changing wheelbase
• Parts set for changing front side tread
• Pinion gear device
• Spare peanuts
• Wheel wrench

Necessary for procedure:

• ASF 2.4GHz KT-18 transmitter or MHS 2.4GHz EX-6 transmitter
• Car Scale Collection (human anatomy set, tires, tires)
• 4 x AAA alkaline batteries or 4 x Ni-MH for framework
• 4 x AAA alkaline batteries for transmitter

Chassis Technical Suggestions:

• Length: 126mm
• Width: 65mm
• Height: 28.5mm
• Wheelbase: 90(M)-98(LL)mm
• Tread (F/R): 65-76mm/65-76mm
• Tire(F/R): F25 x 8.5mm/F25 x 11mm(offered separately)
• Gear Ratio: 7.2, 6.4, 6.0, 5.7, 5.3, 5.0, 4.5 : 1
• Body fat: 130g (approx.)
• Engine: 8500kV XSPEED VE Brushless
