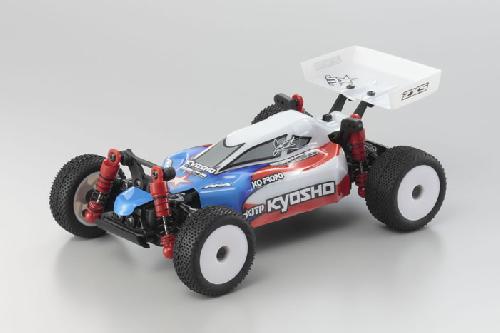

Kyosho 32282BCJT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Body Chassis Set with Jared Tebo Body  [KY32282BCJT]

Kyosho 32282BCJT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Body Chassis Set with Jared Tebo Body
Price:
NZD$246.16
Brand:
Kyosho
Model:
KY32282BCJT
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - On-Road - Mini-Z category
Write a review
alt="Kyosho 32282BCJT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Body Chassis Set with Jared Tebo Body" title="Kyosho 32282BCJT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Body Chassis Set with Jared Tebo Body"
alt="Kyosho 32282BCJT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Body Chassis Set with Jared Tebo Body" title="Kyosho 32282BCJT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Body Chassis Set with Jared Tebo Body"
alt="Kyosho 32282BCJT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Body Chassis Set with Jared Tebo Body" title="Kyosho 32282BCJT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Body Chassis Set with Jared Tebo Body"
alt="Kyosho 32282BCJT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Body Chassis Set with Jared Tebo Body" title="Kyosho 32282BCJT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Body Chassis Set with Jared Tebo Body"
alt="Kyosho 32282BCJT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Body Chassis Set with Jared Tebo Body" title="Kyosho 32282BCJT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Body Chassis Set with Jared Tebo Body"
alt="Kyosho 32282BCJT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Body Chassis Set with Jared Tebo Body" title="Kyosho 32282BCJT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Body Chassis Set with Jared Tebo Body"
alt="Kyosho 32282BCJT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Body Chassis Set with Jared Tebo Body" title="Kyosho 32282BCJT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Body Chassis Set with Jared Tebo Body"
alt="Kyosho 32282BCJT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Body Chassis Set with Jared Tebo Body" title="Kyosho 32282BCJT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Body Chassis Set with Jared Tebo Body"
alt="Kyosho 32282BCJT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Body Chassis Set with Jared Tebo Body" title="Kyosho 32282BCJT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Body Chassis Set with Jared Tebo Body"
alt="Kyosho 32282BCJT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Body Chassis Set with Jared Tebo Body" title="Kyosho 32282BCJT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Body Chassis Set with Jared Tebo Body"

Jared Tebo colored body captures the smoothness of down road competition!
Dynamic buggy performance, regarding palm of your respective hand!

Advanced design top top features of the MINI-Z buggy contain a drive train with 2-differential shaft-drive 4WD and slipper clutch to shield the gears, plus 4-wheel split double-wishbone suspension system beautifully made with oil shocks that surpass all performance goals from compact size. The world-class performance the 1/10 size LAZER ZX-5 FS is targeted into a palmtop size dynamo designed with body printed utilizing the celebrities & stripes design of America's celebrated buggy racer, Jared Tebo. Many precision elements are protected in the shell framework towards framework that keeps out dirt and optimal rigidity. In addition included could be the circuit board through MINI-Z MR-03, especially tuned for off road buggy performance. The framework are fitted with gyro (optional) also it's made with Chase Mode (minimum 3channel transmitter needed) and ICS connectivity. 7-stage gear-type steering servo provides torque and precise a reaction to supply the MINI-Z distinguished linear steering feel and control. Just a few actions are required to begin competition and revel in the aggressive driving performance of MINI-Z in Jared Tebo's effective colors.

  • Shaft drive 4WD and 4-wheel separate suspension system, in MINI-Z lightweight size. Energy over gaps and actions without an additional concept.(photograph is a No.32282BCRG LAZER ZX-5 FS)
  • Oil shocks on 4-wheel separate double-wishbone suspension system system supports effective with superior road keeping.(photograph is a No.32282BCRG LAZER ZX-5 FS)
  • Regardless for the constraints of its size, the integrated coupling of drive shafts etc. recognize a 10-degree skid angle for increased operating performance.
  • Shell framework regarding the framework with battery pack containers for each component (2 cells in each) provides high rigidity to get 100per cent effectiveness from suspension system system system.
  • Each component in flat-bottomed framework is perfect for maintenance effectiveness. Including tie-rods are changed by eliminating the framework cover.
  • Dirt-proof framework like sealed gearbox protects critical elements to exert effort self-esteem on any area. Needs include slipper clutch and 15 ball bearings.
  • I.C.S. function allows precision environment of ESC drive regularity, virtual inertia and steering faculties through a PC connection.
  • Features space for optional gyro become mounted. Detects alterations in operating place to straight away appropriate steering and throttle for alot more stable control.

  • Totally pre-assembled framework with imprinted polycarbonate body loaded with markings.
  • Genuine rushing performance to please buggy owners. Ideal for training inside.
  • ASF2.4GHz system calls for no musical business allocation. Solitary transmitter can be used along with your second and third model.
  • needs no regularity crystals and enables around 40 cars become run on top of that.
  • Ultra fast indication processing understands razor-sharp control reaction.
  • Complete with standard setup at time of distribution. Chase Mode might be triggered with only one switch. Other settings are modified through a PC with the I.C.S. USB adapter (offered separately).
  • Equipped with Light-emitting Diode energy degree indicator.
  • Selection of optional elements have been in the pipeline for launch.

< Kit Contents >

  • Factory assembled framework with pre-installed R/C product
  • Pre-painted polycarbonate human anatomy loaded with markings
  • Pinion Gear x 3 (11T, 13T, 15T)
  • Spur Gear x 2 (33T, 35T)
  • Pinion tool
  • Pairing stick
  • Wheel wrench
  • Spare wheel peanuts

< Required for Operation >

  • 3-channel transmitter for MINI-Z suited to ASF 2.4GHz or Perfex KT-18 transmitter (and sometimes even utilizing the Chase mode)
  • AAA-size alkaline batteries x 4 or NiMH batteries x 4 for chassis.
  • Batteries for transmitter
  • (PREFERENCE) I.C.S. USB adapter (No.82080) to make use of I.C.S. functions and Chase Mode modification.

< NOTE >

  • Overtake function may utilize R246 2.4GHz module adapter it is actually not guaranteed with transmitters besides Kyosho or KO 3-channel transmitters.
  • 2-channel KT-18 transmitter works extremely well but cannot run the Chase Mode.

Chassis Technical Information
Size
167mm
Width
106mm
Height
63mm
Wheelbase
115mm
Tread (F/R)
F:89/R:89
Tire(F/R)
F:O37x13.5mm / R:O37x18.5mm
Weight
200g(approx.)
Motor
130-Class
Battery
AAA-size alkaline x 4
R/C System
KT-18(sold independently)
