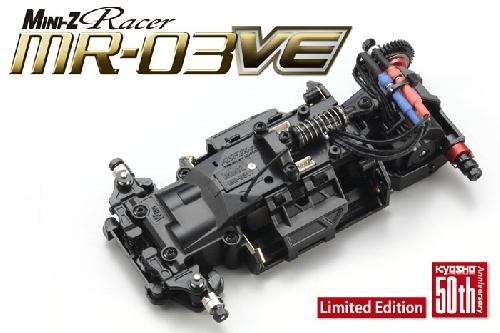

Kyosho 32761 - 1/27 R/C EP Touring Car MINI-Z Racer ASF 2.4GHz Brushless Motor MR-03VE Chassis Set (50th Limited Edition)  [KY32761]

These development linked to MINI-Z Racer now includes the most recent brushless engine technology into its performance. Never ever utilized before on a MINI-Z, this model includes the same-sized ‘Team Orion XSPEED VE’ brushless motor having its characteristic high durability, energy, RPM and a group torque feel. The MINI-Z takes complete advantageous asset of the brushless motor’s efficient low friction; non-contact properties that minimize use and reduce electric sound to offer outstanding linear impact and smooth acceleration for a sensorless brushless motor which authorized to be utilized inside MINI-Z Cup as well as other formal occasions. A restriction placed on optimum RPM keeps the playing industry level for a number of motorists. Also, a newly developed circuit board with ICS function links to a PC (adapter offered individually) for precision environment improvements. Just install the ‘ICS VE Manager’ pc software from Kyosho website to manage the brushless motor settings and get gone the RPM limitation to remove the complete potential from your own device. The newly designed top address in addition allows easy mounting associated with the optional gyro towards the most truly effective even though the framework gets the MR-03 ball diff which was formerly optional. Now the MR-03’s powerful performance is turbo-charged with brushless motor capacity to mark a fresh stage in growth of MINI-Z performance and technology.

Features:

• MR-03 Chassis Set installed with brushless motor
• Complete bearing, ball differential, gold-plated battery power terminal gear.
• Suitable for all current MINI-Z Racer human body sorts.
• Unique brushless motor circuit board features 3 LEDs to point proper function.
• Redesigned top address enables easy installing gyro.
• Appropriate optional elements the MR-03 framework.
• Features newly developed revolutionary ‘VCS’ front suspension system system that improvements camber position alongside suspension system system system system move.
• ASF2.4GHz R/C system removes must manage regularity bands. One transmitter works well with many models. **Transmitter comes independently.
• Designed with electronic steering servo with integral coreless motor.
• Coil springs on front suspension system system might be simply changed by eliminating the springtime stopper with just two screws.
• Features high effectiveness silver plated motor terminals.
• Pre-calibrated zero point steering environment.
• Brushless motor may be the identical size as present 130-class devices. Delivers outstanding durability and power.
• Newly developed brushless motor circuit board can be included to the MR-03 framework. Made with 3 LEDs to indicate appropriate procedure and ICS function.
• Upper address redesigned to check brand-new circuit board that will be ideal for all present body types. Features area ahead for mounting optional gyro.
• Top quality silver plated engine terminals and silicon cables included as standard to regulate the high energy output.
• Ball differential unique kind of Red anodized.

Kit Articles

• Factory assembled MR-03W framework set up with Team ORION XSPEED VE brushless engine.
• One-piece RA-27 receiver and brushless motor circuit board beautifully created using ICS connector
• Modification components for RM-type engine mount
• Upper and paid down meal and steering tie pole for (front part) slim tread (included)
• Front suspension system system spacers for adjustment
• Pinion Gears (7T, 8T, 9T)
• Wheel wrench
• Pinion gear product
• Pairing stick
• free wheel peanuts

Needed for procedure

• ASF 2.4GHz Perfex KT-18 transmitter for MINI-Z or Kyosho EX-5UR ASF transmitter (No.82011)
• AAA size alkaline batteries or Ni-MH x 4 for framework
• AAA size alkaline batteries x 4 for transmitter (KT-18), AA size alkaline batteries x 8 (EX-5UR)

*PERFEX EX-5UR ASF Transmitter

Chassis Technical Information

• Length:124~133mm(MM Chassis:125~133mm?RM Chassis:124~132mm)
• Width: 65~76mm
• Height: 34~35mm
• Wheelbase: 86~106mm(86,90,94,98,102,106)
• Tread (F/R): (Wide)61.5mm / 59mm (Narrow)56.5mm / 56.5mm [when wheel offset is 0]
• Tire(F/R): 23.5~25x8.5mm / 25~27x8.5~11mm
• Gear Ratio: 7.3,6.3,5.5,4.9:1
• Bodyweight:135g approx.
• Motor: Team ORION XSPEED VE
