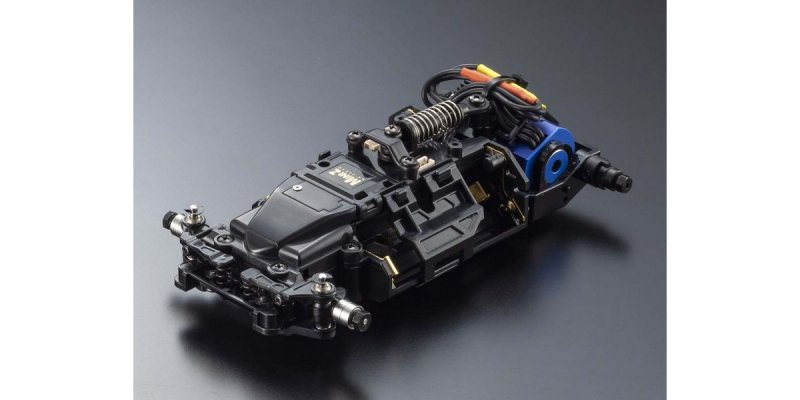

Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV)  [KY-32797]

Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV)
Price:
NZD$307.76
Brand:
Kyosho
Model:
KY-32797
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - On-Road - Mini-Z category
Write a review
alt="Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV)" title="Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV)"
alt="Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV)" title="Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV)"
alt="Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV)" title="Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV)"
alt="Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV)" title="Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV)"
alt="Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV)" title="Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV)"
alt="Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV)" title="Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV)"
alt="Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV)" title="Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV)"
First released in December 2018 the MR-03EVO series delivered amazingly fast processing price and showcased another receiver board that provided the flexibleness of transmitter option. couple of years as a result of its stunning very first, the MR-03 EVO lineup is strengthened with a race-based framework. To date the rate range environment finished up being KV8500 for wide chassis, nonetheless it wound up being reduced a sum to KV5600. While keeping the sum total bearing specifications and Ball Diff Set II, align underneath framework using the fresh standard price range and start a wider musical company of users. From suitable receiver devices : RA-40 (EX-6R / EX-II / EX-RR); RA-41 (KT-531P / KT-432PT); RA-42 (Futaba T7PX / T7XC / T4PM), and RA-43 (Flysky Noble NB4), the RA-41 provides the perfect step-up through Readyset. Likely the MR-03EVO framework set’s best benefit often it's also along side a brushed engine (No.MZ9E, provided separately) to comply with a straight wider variety of driving conditions.

●First MINI-Z MR-03 Chassis Set that adopts split ESC and receiver design.
●Includes completely new KYOSHO SPEED HOME XSPEED 56 brushless engine (5600KV).
●I.C.S manager features thorough steering and throttle parameter modification, and switching between brushless and brushed modes.
●Powered by split CPUs for ESC and receiver, increased inside processing cost leads to accuracy steering and throttle control.
●Equipped with ball bearings and Ball Diff Set II. *Newly developed split receiver target and front top supply mount render tread modification easier. *Compatible with MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV) the MR-03 framework.

Based on the MR-03VE expert framework, newly produced split receiver address and front top supply mount render tread modification easier.

Receiver item come in the offing for KYOSHO, KO, FUTABA and Flysky transmitters and will be attached/detached by removing receiver target from top framework.

New KYOSHO SPEED ABODE brushless motor (5600KV) features a one-piece aluminum situation that understands efficient temperature dissipation.

Designed with Ball Diff Set II that reduces fat of aluminum elements on spur gear component and optimizes security concerning the hub component. This could be a must-have item and is used frequently in competition-level competition.

Comprehensive ball bearing requirements reduce drive loss.



TECHNICAL INFORMATION

  • Length 123.5mm
  • Width 70~76mm
  • Height 35mm
  • Motor Mount MM
  • Wheelbase 98.0mm(L)
  • Tread F:61.5~65.0mm/R:61.5~65.0mm
  • Tires (F/R) 25x8.5mm (offered separately)/25x8.511mm (offered separately)
  • Gear Ratio 7.36.35.54.9:1
  • Weight 135g (approx.)
  • Motor KYOSHO SPEED HOME / XSPEED 56 (5600KV)


KIT CONTENT

  • MR-03EVO-W-MM Factory assembled framework with KYOSHO SPEED ABODE XSPEED 5600KV
  • components set for changing front side tread
  • 6T7T8T9T Pinion gears
  • Wheel wrench
  • Tools for pinion gears
  • Spare wheel peanuts


REQUIREMENT TO PERFORM

  • Receiver unit
  • Transmitter appropriate receiver unit
  • Auto Scale Collection (human anatomy set, tires, tires)
  • AAA x 4 alkaline batteries or Ni-MH batteries for chassis
  • Batteries for transmitter
