Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)  [KY-32798]

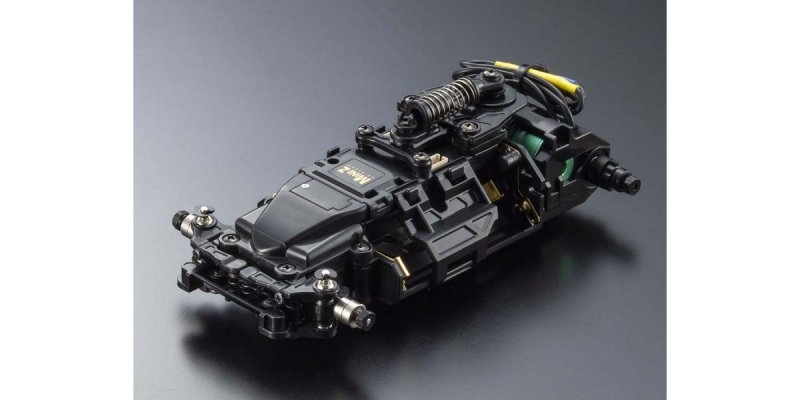

Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)
Price:
NZD$261.68
Brand:
Kyosho
Model:
KY-32798
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - On-Road - Mini-Z category
Write a review
alt="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
alt="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
alt="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
alt="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
alt="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
alt="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
alt="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
First released in December 2018 the MR-03EVO series delivered amazingly quick processing rate and showcased another receiver board that offered the flexibility of transmitter option. few years after its stunning very first, the MR-03 EVO lineup is strengthened with a race-based framework. Confirmed the rate range environment have been KV5600 for wide framework, nonetheless it is reduced a straight to KV4100. While keeping the entire bearing specs and Ball Diff Set II, align the beds base framework as a result of fresh standard price range and initiate a wider degree of users. Through appropriate receiver items : RA-40 (EX-6R / EX-II / EX-RR); RA-41 (KT-531P / KT-432PT); RA-42 (Futaba T7PX / T7XC / T4PM), and RA-43 (Flysky Noble NB4), the RA-41 offers the optimal step-up from Readyset. Probably the MR-03EVO framework set’s greatest advantage frequently it is also along with a brushed engine (No.MZ9E, supplied by themselves) to adhere to a straight wider assortment of driving conditions.

●First MINI-Z MR-03 Chassis Set that adopts split ESC and receiver design.
●Includes brand new KYOSHO SPEED HOME XSPEED 41 brushless engine (4100KV).
●I.C.S manager features step-by-step steering and throttle parameter modification, furthermore switching between brushless and brushed modes.
●Powered by split CPUs for ESC and receiver, increased interior processing price plays a factor in accuracy steering and throttle control.
●Equipped with ball bearings and Ball Diff Set II.
*Newly designed split receiver address and front top supply mount render tread modification easier. *Compatible with MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV) the MR-03 framework.

On the basis of the MR-03VE professional framework, newly developed split receiver target and front top supply mount make tread modification easier.

Receiver product may be found in the offing for KYOSHO, KO, FUTABA and Flysky transmitters and you will be attached/detached by detatching receiver target from top framework.

New KYOSHO SPEED RESIDENCE brushless motor XSPEED 41(4100KV) features a one-piece aluminum example that understands efficient heat dissipation.

Designed with Ball Diff Set II that decreases weight of aluminum elements on spur gear part and optimizes balance inside hub component. This is actually a must-have product and it is used usually in competition-level race.

Comprehensive ball bearing needs minimize drive loss.



TECHNICAL INFORMATION

  • Length 119.5mm
  • Width 70~76mm
  • Height 38mm
  • Motor Mount MM2
  • Wheelbase 94.0mm (L)
  • Tread F:61.5~65.0mm/R:61.5~65.0mm
  • Tires (F/R) 25x8.5mm (provided individually)/25x8.511mm (offered separately)
  • Gear Ratio 7.36.35.54.9:1
  • Weight 135g (Body / tires / tires maybe not included, battery pack included.)
  • Motor KYOSHO SPEED ABODE 4100KV


KIT CONTENT

  • MR-03W-MM2 Factory assembled framework with KYOSHO SPEED RESIDENCE KV4100 brushless motor
  • Parts set for changing front part tread
  • 6T7T8T9T Pinion gears
  • Wheel wrench
  • Tools for pinion gears
  • Spare wheel peanuts


REQUIREMENT TO EXECUTE

  • Receiver unit
  • Transmitter well suited for receiver unit
  • Auto Scale Collection (body set, wheels, tires)
  • AAA x 4 alkaline batteries or Ni-MH batteries for chassis
  • Batteries for transmitter
