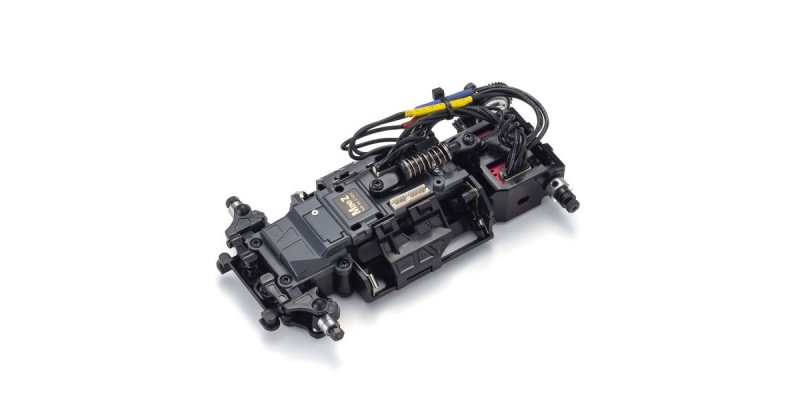

Kyosho 32890 - MINI-Z Racer MR-04EVO2 Chassis Set (W-MM/8500KV)  [KY-32890]

While keeping facets of the superb MR-03 design, the existing MR-04EVO2 chassis achieves significant performance improvements with modifications towards front suspension system system and a low C of G that help synergy with a sensored brushless motor. Both slim and wide tread settings is available by changing the reduced and top dishes regarding the front component utilizing the steering tie pole. Adjustable wheelbase allows framework developing predicated on real stature.

- While camber angle is optimized during cornering using the move today's top supply design, leading suspension system system system makes use of the present kingpin-integrated knuckle to improve camber stability. Geometric modification of caster and program an such like. provides more linear maneuverability. Amazing spec front part springs the MR-04 with various hardness can be had as choices.

- Front knuckle design features included kingpin with optimized approval utilising the kingpin ball for smoother procedure. Ball bearings have been changed to 3mm inside diameter for paid down rotational opposition.

- All 7 ball bearings are 3mm interior diameter for reduced rotational opposition to attenuate friction loss.

- paid off mounting for the AAA batteries on framework knows a lowered center of gravity compared to the MR-03. In conjunction with the framework type, this improves protection through corners and boosting speed and control.

- Ball differential included as standard optimizes the rotational distinctions whenever considering staying and right back tires when switching. Also provides moderate slip action to boost traction whenever extortionate load is used. Silver clear anodized complete to aluminum components produces a formidable design to match performance.

- This brand new unit besides supports high-speed discussion with various high-end transmitters and receivers to comprehend unprecedented control reaction. Achieves transmission rates of 0.99ms with KO devices (ADV mode) and 0.9ms with Futaba services and products (EVO2 mode). *Previously 2.6ms ~ 3.0ms

TECHNICAL INFORMATION

• Length 124.5mm
• Width 72-76mm
• Height 31mm
• Motor Mount MM
• Wheelbase 98.0mm (LL)
• Tread(F/R)63.5-65.0mm/61.5-65.0mm
• Gear Ratio 7.3/6.3/5.5/4.9:1
• Weight 135.5g (Body / tires / tires perhaps not included.)
• Motor KYOSHO SPEED RESIDENCE XSPEED 85 (KV8500)

KIT CONTENT

• MR-04 EVO2-W-MM Factory assembled framework with KYOSHO SPEED ABODE KV8500 brushless motor
• Parts set for changing front part tread
• 6T/7T/8T/9T Pinion gears
• Wheel wrench
• Tools for pinion gears
• Spare wheel peanuts

REQUIREMENT TO PERFORM

• Transmitter
• Receiver item (ideal for EVO/EVO2)
• ASC
• AAA x 4 batteries for chassis
• Batteries for transmitter
