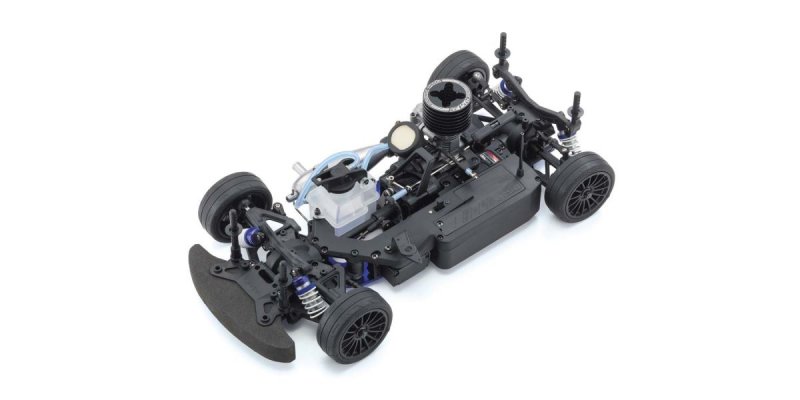

Kyosho 33216 - 1:10 Scale Radio Controlled .15 Engine Powered 4WD Touring Car FW-06 Chassis Kit  [KY-33216]

Full of KE15SP motor with autumn carburetor fitted with sluggish idle modification.

Double wishbone suspension system system with adjustable camber and toe views.

Machined aluminum oil shocks with dial for stepless anxiety and height modification to comprehend stable performing performance.

2-speed automatic transmission included as standard makes effective using the engine's power musical company. Durable shaft-driven 4WD framework are enjoyed many areas.

Turnbuckle tie-rods useful for steering pole and straight back top arms for completely adjustable positioning.

Universal swing shafts increase dependability of front drive.

TECHNICAL DATA

• Length 375mm
• Width 200mm
• Wheelbase 258mm
• Tread (F/R) 176mm
• Tire(F/R) 66x25mm
• Gear Ratio 7.47 / 5.44:1
• Weight 1,800g (approx.)
• Engine KE15SP with recoil starter
• Max Speed 64Km(approx.)

• chassis kit
• FAT701M TC Tire (M)&Inner spongeVZH003BK Wheel(perhaps maybe not glued)
• Pre-mounted KE15SP engine with recoil starter
• Setting modification parts
• 1.5mm/2.0mm/2.5mm/5.0mm Hex wrench
• Cross wrench
• 3/4/5/5.5/7/8mm Spanner

REQUIREMENT TO GET RESULTS

• 2ch R/C car transmitter
• Body
• Servos x 2
• 4 x AA size alkaline batteries for receiver and Battery Holder or Battery
• 4 x AA size alkaline batteries for transmitter
• Switch
• Silicon oil for Shock
• Silicon oil for diff
• Grease
• GP opening Tool Set
• Fuel Bottle
• Glow Fuel
• Tool
