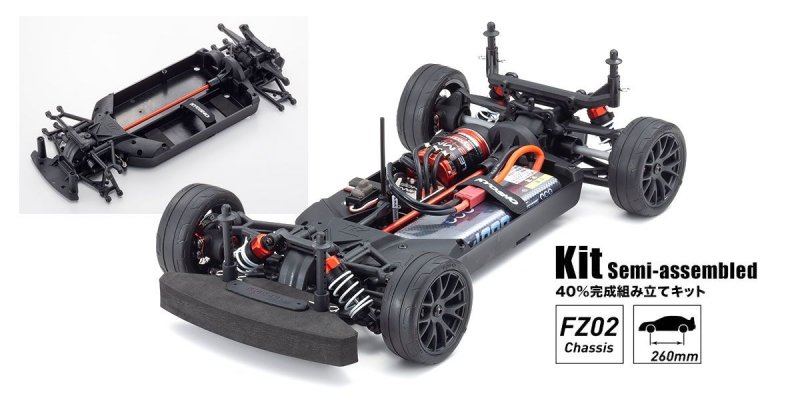

The FAZER Mk2 Readyset is perfect for the pure satisfaction of R/C vehicle driving. Available nowadays as a framework kit, owners have actually in reality in fact the flexibleness to include unique body and R/C system. Specs happen elevated with optional components including HD TC center shaft S and TC universal move shaft L to boost the unrivaled symmetrical design and front-rear suspension system system system balance using this lightweight framework for R/C racers to savor. Since the deckless design seems effortless, a minor range elements improves upkeep effectiveness and optimizes torsional rigidity. Incorporation of nylon item further decreases fat and improves impact opposition. Having its unique design, the FZ02 framework embodies features and satisfaction that could attract R/C drivers of all quantities.
40percent pre-assembled (shocks and diff gears aren't filled up with oil so installation is completed to preferred environment). The FZ02’s effective low center of gravity design compliments the high energy and rigidity recognized through front side & back stiffeners and rib reinforcement at key parts of the framework.
Duralumin HD TC center shaft S (FAW209) provides increased rigidity set alongside the standard resin shaft into the Readyset. And smoother driving transmission, the red anodized color has striking look. Included aluminum meal protects the motor from dirt and effective heat dissipation, particularly in the temperature of summer season competition.
TC Universal swing shafts L (FAW202) regarding forward drive component don’t autumn on hefty contact like dog bone tissue muscle tissue muscle shafts. Besides, the move shafts deliver constant drive transmission although joint come in a thorough steering angle.
A specific resin transponder mounting stay is roofed for once the framework is contending in battle occasions. You don't need to produce a handmade stay or holes within the body to match a transponder.
Included human anatomy mounts enable systems from different manufacturers become fitted. In addition, two different brake-disk wheel hubs allow 190mm and 200mm framework width settings for compatibility with different body types.
Oil shocks and springs optimize the front-rear geometric safety, delivering both light handling and precise control. (Silicone oil the shocks comes individually)
Bump steer and scrub radius, the two factors along with the most readily useful influence on control, have already been optimized regarding front suspension system system. Interchangeable front-rear and left-right hub carriers improve elements effectiveness and upkeep.
Included initial low-profile semi-slick pattern FAT701M TC Tire (M), inner sponge and FAH701BK Wheel (unglued), providing superior performance.
Designed with Front and right back light buckets suitable for optional 97054 LED Light device which are generally provided separately.
By establishing the LED light device, improves scale realism for human anatomy shell.
TECHNICAL INFORMATION
- Length (Body Size) 375mm(464mm)
- Width(Body Width) 200mm /190mm(207mm)
- Ground approval 8mm (approx.)
- Wheelbase 260mm
- Tread(Body width:190mm)F:164mm/R:164mm
- Tread(Body width:200mm)F:174mm/R:174mm
- Tires F: φ66mm x 25mm/R:φ66mm x 25mm
- Gear Ratio 6.54:1
- Total space for stocking fat Approx. 1,490g (with 7.4V4000 LiPo)
KIT CONTENT
- 40percent pre-assembled chassis
- FAW202 TC Universal Swing Shaft S
- FAW209 HD TC Center Shaft S
- Aluminum Motor Dust Plate
- transponder mounting stay
- +0mm off-set wheel hub & M4 x 16 Wheel screw(for 190mm width human body)
- +5mm off-set wheel hub & M4 x 22 Wheel screw(for 200mm width human body)
- body mounts for various manufacturers bodies
- FAT701M TC Tires(M)
- Inner Sponge
- FAH701BK Wheel
- 1.5/2.0/2.5mm Hexagonal wrench
- 3/4/5/5.5/7/8mmSpanner
REQUIREMENT TO EXECUTE
- 2ch 1 servo R/C system for cars(Receiver size:L45xW28xH22mm or less)*Recommended items No.82138/82151
- 540-550 system engine *Recommended items No.37031/37032
- ESC appropriate engine used(Size:L36xW32xH23mm or less)*Recommended things No.37051
- Survo *Recommended services and products No.82273
- Battery charger
- Battery for framework ideal for ESC used(SIze:L145xW47xH25mm or less)*Recommended items No.GAB4201
- 4 x AA batteries for transmitter
- Damper Oil *Recommended items No.SIL0400-8
- Grease(for Ring Gear & Diff)*Recommended services and products No.96162
- Silicone OIL(for Diff)*Recommended things F:No.SIL50000/R:No. SIL3000
- Velvet Coating Pinion Gear No.PNGA4832 - No.PNGA4837 (For brushless engine )
- Steel Pinion Gear No.PNGS4829 - No.PNGS4836 (For brushless engine )
- Paint for polycarbonate body
- Tools
