The FAZER Mk2 Readyset is good for the pure satisfaction of R/C vehicle driving. Available nowadays as a framework kit, owners have actually actually the flexibleness to incorporate their human body and R/C system. Needs had been elevated with optional elements such as HD TC center shaft S and TC universal move shaft L to improve the unrivaled symmetrical design and front-rear suspension system system system security in regards to the lightweight framework for R/C racers to relish. Even though deckless design seems simple, a low number of elements improves maintenance effectiveness and optimizes torsional rigidity. Incorporation of nylon product further decreases fat and improves effect opposition. Having its unique design, the FZ02 framework embodies features and performance that will attention R/C motorists of amounts.

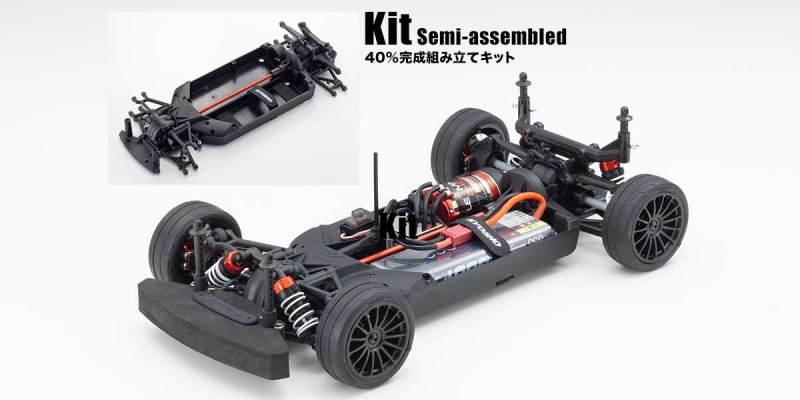

40percent pre-assembled (shocks and diff gears aren't filled with oil therefore set up may be completed to preferred environment). The FZ02’s effective low center of gravity design compliments the high power and rigidity recognized through front part & back stiffeners and rib reinforcement at key chapters of framework.
Duralumin HD TC center shaft S (FAW209) provides increased rigidity compared to the standard resin shaft in the Readyset. Including smoother driving transmission, the red anodized color has striking visual appeal.
TC Universal swing shafts L (FAW202) concerning the front drive component don’t autumn on hefty contact like dog bone tissue muscle muscle shafts. Additionally, the move shafts deliver constant drive transmission although joint are in a comprehensive steering angle.
A certain resin transponder mounting stay is roofed for after the framework is contending in competition tasks. You should not produce a handmade stay or holes within the body to support a transponder.
Included human anatomy mounts enable systems from various manufacturers become fitted. Also, two different brake-disk wheel hubs enable 190mm and 200mm framework width settings for compatibility with various human anatomy kinds.
Included aluminum meal protects the motor from dust and offers effective temperature dissipation, particularly into the heat of summertime rushing.
Oil shocks and springs optimize the front-rear geometric protection, delivering both light managing and accurate control. (Silicone oil the shocks is sold independently)
Bump steer and scrub radius, the 2 facets using the most useful affect handling, have already been optimized in to the front suspension system system. Interchangeable front-rear and left-right hub providers improve elements efficiency and maintenance.
Original low-profile semi-slick pattern tires and inside sponge (FAT701M) match 15-spoke black colored colored colored tires for enhanced rushing appeal.
TECHNICAL INFORMATION
- Length 375mm
- Width200mm/190mm
- Ground approval 8mm (approx.)
- Wheelbase 260mm
- Tread(Body width:190mm)F:164mm/R:164mm
- Tread(Body width:200mm)F:174mm/R:174mm
- Tires F: 66mm x 25mm/R:66mm x 25mm
- Gear Ratio 6.54:1
- Total wardrobe fat Approx. 1490g (with 7.4V / 4000 LiPo)
KIT CONTENT
- 40per cent pre-assembled chassis
- FAW202 TC Universal Swing Shaft S
- FAW209 HD TC Center Shaft S
- Aluminum engine Dust Plate
- transponder mounting stay
- +0mm off-set wheel hub & M4 x 16 Wheel screw(for 190mm width body)
- +5mm off-set wheel hub & M4 x 22 Wheel screw(for 200mm width human body)
- human anatomy mounts for various manufacturers numbers
- FAT701M TC Tires(M)
- inside Sponge
- VZH003BK Wheel
- 1.5/2.0/2.5mm Hexagonal wrench
- 3/4/5/5.5/7/8mmSpanner
REQUIREMENT TO EXERT EFFORT
- 2ch 1 servo R/C system for cars(Receiver size:L45xW28xH22mm or less)*Recommended things No.82138/82151
- Body
- 540-550 course engine *Recommended solutions No.37031/37032
- ESC right for engine used(Size:L36xW32xH23mm or less)*Recommended products No.37051
- Survo *Recommended solutions No.82273
- Battery charger
- Battery for framework suitable for ESC used(SIze:L145xW47xH25mm or less)*Recommended products and services No.GAB4201
- 4 x AA batteries for transmitter
- Damper Oil *Recommended products No.SIL0400-8
- Grease(for Ring Gear & Diff)*Recommended products No.96162
- Silicone OIL(for Diff)*Recommended solutions F:No.SIL50000/R:No. SIL3000
- Velvet Coating Pinion Gear No.PNGA4832 - No.PNGA4837 (For brushless motor )
- steel Pinion Gear No.PNGS4829 - No.PNGS4836 (For brushless motor )
- Paint for polycarbonate human body
- Tools
