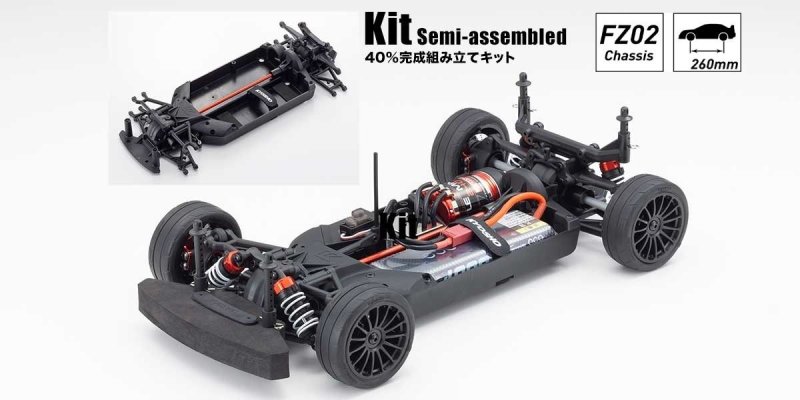

The FAZER Mk2 Readyset is made the pure satisfaction of R/C vehicle driving. Available nowadays as a framework kit, owners have actually actually in fact really the flexibleness to add their body and R/C system. Needs have now been elevated with optional elements like HD TC center shaft S and TC universal move shaft L to improve the unrivaled symmetrical design and front-rear suspension system system security in regards to the lightweight framework for R/C racers to possess enjoyment from. Even though the deckless design seems effortless, less degree of elements improves upkeep effectiveness and optimizes torsional rigidity. Incorporation of nylon product further decreases fat and improves impact opposition. Along side its unique design, the FZ02 framework embodies features and satisfaction which may attention R/C motorists of quantities.
40per cent pre-assembled (shocks and diff gears aren't filled up with oil so construction are finished to preferred environment). The FZ02’s effective low center of gravity design compliments the high power and rigidity recognized through front side & right back stiffeners and rib reinforcement at key chapters with this particular framework.
Duralumin HD TC center shaft S (FAW209) provides increased rigidity compared to the standard resin shaft inside the Readyset. Along with smoother driving transmission, the red anodized color has striking look.
TC Universal swing shafts L (FAW202) inside front drive part don’t autumn on hefty contact like dog bone tissue muscle shafts. Besides, the move shafts deliver constant drive transmission even though joint reaches an intensive steering angle.
Included body mounts enable systems from various manufacturers become fitted. Besides, two various brake-disk wheel hubs enable 190mm and 200mm framework width settings for compatibility with various human anatomy kinds.
Included aluminum dinner protects the motor from dirt and effective temperature dissipation, particularly on temperature of summertime competition.
Oil shocks and springs optimize the front-rear geometric protection, delivering both light managing and accurate control. (Silicone oil the shocks comes separately)
Bump guide and scrub radius, both factors combined with most readily useful affect maneuvering, have been completely optimized inside the front suspension system. Interchangeable front-rear and left-right hub companies improve elements effectiveness and maintenance.
Original low-profile semi-slick pattern tires and internal sponge (FAT701M) match 15-spoke black colored colored colored tires for improved rushing appeal.
TECHNICAL INFORMATION
Length 375mm Width200mm/190mm Ground approval 8mm (approx.) Wheelbase 260mm Tread(Body width:190mm)F:164mm/R:164mm Tread(Body width:200mm)F:174mm/R:174mm Tires F: ?66mm x 25mm/R:?66mm x 25mm Gear Ratio 6.54:1 Total storage space fat Approx. 1490g (with 7.4V / 4000 LiPo)
KIT CONTENT
40percent pre-assembled chassis FAW202 TC Universal Swing Shaft S FAW209 HD TC Center Shaft S Aluminum engine Dust Plate Transponder mounting stay +0mm off-set wheel hub & M4 x 16 Wheel screw(for 190mm width human body) +5mm off-set wheel hub & M4 x 22 Wheel screw(for 200mm width human anatomy) Body mounts for various manufacturers bodies FAT701M TC Tires(M) Inner Sponge VZH003BK Wheel 1.5/2.0/2.5mm Hexagonal wrench 3/4/5/5.5/7/8mmSpanner
REQUIREMENT TO PERFORM
2ch 1 servo R/C system for cars(Receiver size:L45xW28xH22mm or less)*Recommended things No.82138/82151 540-550 program motor *Recommended services No.37031/37032 ESC suited to engine used(Size:L36xW32xH23mm or less)*Recommended things No.37051 Survo *Recommended products No.82273 Battery charger Battery for framework suited to ESC used(SIze:L145xW47xH25mm or less)*Recommended services No.GAB4201 4 x AA batteries for transmitter Damper Oil *Recommended items No.SIL0400-8 Grease(for Ring Gear & Diff)*Recommended products No.96162 Silicone OIL(for Diff)*Recommended services F:No.SIL50000/R:No. SIL3000 Velvet Coating Pinion Gear No.PNGA4832 - No.PNGA4837 (For brushless engine ) Steel Pinion Gear No.PNGS4829 - No.PNGS4836 (For brushless motor ) Paint for polycarbonate human body
