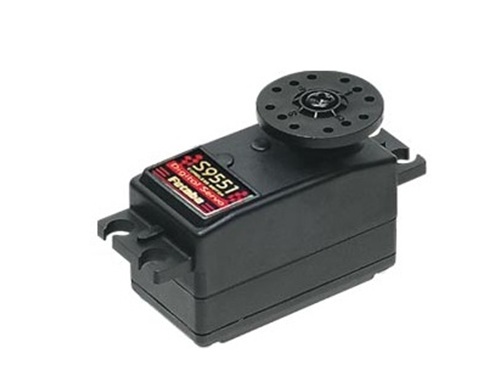

Here is the S9551 high Torque minimal Profile Digital Servo w/Coreless Motor for Aircraft and car usage. QUALITIES:
- Digitally enhanced microprocessor cuts about half the response time from transmitter input to servo response
- Low profile allows the servo to accommodate into wings and construct in automobile framework at a lesser price obstruction
- Coreless engine
- Metal gears
- Twin ball-bearings
- Black synthetic situation
- Dust and waterproof (not waterproof)
- Ideal for F3A aileron application and 1/10 scale electric touring automobile
CONTAINS:
One S9551 Digital Low Profile Servo with 0.83" (21mm) diameter circular horn, 1.7" (44mm) long T-shaped horn, four eylets, two synthetic gromments (order FUTM2250 if mounting screws are anticipated)
SPECS:
- Speed: 0.14 sec/60?X @ 4.8V 0.11 sec/60?X @ 6.0V
- Torque: 98 oz-in (7.0kg/cm) @ 4.8V 122 oz-in (8.8 kg-cm) @ 6.0V
- Weight: 1.6oz (45g)
- Measurements: 1.6 x 0.8 x 1.0" (41 x 20 x 25mm)
- Distance Between Mounting Hole Centers: 0.39" (10mm)
- Horn Screw Size: 3x8mm
RESPONSES:
S9551 Digital Servo Precautions, you need to avoid long leads and Y-harnesses especially with standard grade cables. If problems are skilled, consider using hefty fat cable particularly Futaba's durable Series or Hobbico's expert Series, minimizing lead lengths, and/or getting rid of Y-harnesses. Present Drain: Futaba S9551 Servo is specifically made for high- Torque and High-Speed, consequently quite high Active Drain Is Normal At company. For Ultimate Effectiveness Whenever Using This Servo, Please Review Another Points. (1) when working with methods with all the current Battery Fail secure Function it is an elevated Cut-Off Voltage establishing that may Cause reduced Procedure Time. (2) whenever producing the Servo Please check Pushrod Linkage to make sure there is absolutely no Binding to avoid Excessive power Consumption and minimize steadily lifespan connected to engine and Battery.
This digital servo can not be found in combination with one of these * will always be * transmitters whilst the servo basic indication is: 1310us). CONQUEST happen, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), Groundbreaking Terratop, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK show. For complete performance use with FM, PCM and HR systems.
An email on Coreless machines. An everyday servo engine has a metal core armature covered with with cable that spins in magnets. In a Coreless design, the armature employs a slim cable mesh that types a glass that spins through the entire exterior towards magnet eliminating the rock core. This design is lighter finally causing smoother procedure and faster impact time.
