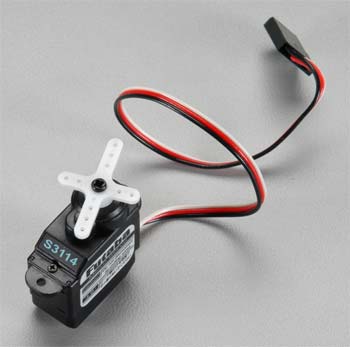

Futaba S3114 Micro High-Torque Servo  [S3114]

TRAITS:

• Ideal for electric planes and small electric helis
• Nylon gears
• 12 months guarantee

INCLUDES:

• Futaba S3114 Micro Tall Torque Servo
• One .91" x .64" (23mmx16mm) 4 supply servo horn (comes pre-installed)
• One 1.33" x 1.33" (34mmx34mm) 4 supply servo horn

REQUIRES:

• Starting in aircraft and linking to receiver
• Order DUBM6924 if mounting gear is required

SPECS:

• 6V 4.8V
• Torque: 24 oz-in (1.7 kg/cm) 21 oz-in (1.5 kg/cm)
• Speed: 0.09 sec/60? 0.10 sec/60?
• Dimensions: 0.9 x 0.4 x 0.8" (7/8 x 7/16 x 13/16) (22 x 11 x 20mm)
• Body fat: .28oz (1/4oz) (7.8g)
• Lead size: 6.5" (165mm)
• Output Spline Diameter: 4mm

COMMENTARY:

• Avoid using S3114 servos with gas or high energy engine models, big gliders, or other models that want high torque
• Making use of supply voltage above 6V or making use of high load to servo will reduce living span.
• Alway usage servo horn specially created for this servo. Avoid main-stream servo horns.
• Extortionate force or surprise towards servo horn may damage the ultra mini precision gears within the servo.
