Futaba S3103 Servo Micro Mini  [S3103]

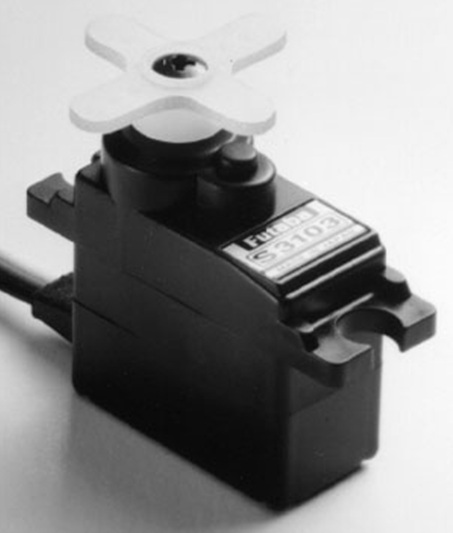

Here is the S3103 Micro Mini Precision Servo
Designed to be used with Futaba broadcast Control Systems.
This Servo Takes the positioning concerning the S133 Servo and possesses Less Torque.

This servo trigger high-current draw from your own batteries.
If utilizing NiMH or Li-Po batteries, cause them to become capable
of delivering sufficient Amps.

QUALITIES: Tiny Compact Design for Small Electrical Engine Airplanes.
3-pole motor

INCLUDES: One S3103 Micro Mini Servo
One Servo Accessory Pack (Horn, Grommets, Screws, Bushings) FUTM23500

SPECS: Speed: .11 sec/60 deg @ 4.8V - .09 sec/60 deg @ 6V
Torque: 17 oz/in @ 4.8V - 21 oz/in @ 6V
1.2 kg/cm @ 4.8V - 1.5 kg/cm @ 6V
Length: 23mm (.9")
Width: 10mm (.4")
Height: 20mm (.8")
Weight: 9.5g (.3oz)

OPINIONS: The S3103 Servo may possibly not be found in combination with Gasoline engine Airplanes and
with big Gliders and also other variations that require Torque.
The Utilizing a big Load at a top Power Supply Voltage Will Shorten-
the use life. (4.8V Recommended)
The Accessory Servo Horn is good for utilize using this Servo just.
Conventional Servo Horns May Possibly Not Be Used. Always utilize the Special
Servo Horn.
ir/jl
9-15-00 UPDATE
The latest circulation of the sevos are now coming with white servo arms, which
some consumers may mistake for Hitec. They are not Hitec. They look like they
will fit, however the customer runs the likelihood of stripping the production shaft if
they try and use them on Hitec.
