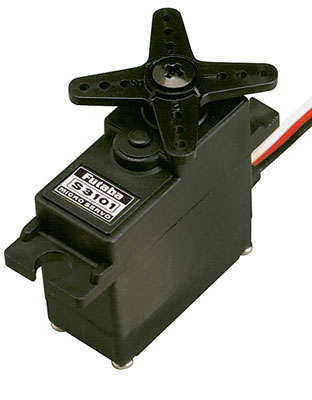

Futaba S3101 Servo Micro Precision  [S3101]

this is actually the Futaba S3101 Micro servo that replaces the S133.
TThis servo is utilized for aircraft or where in fact the littlest servos are expected.

This servo may cause high-current draw from your own batteries.
If utilizing NiMH or Li-Po batteries, make them capable
of delivering enough Amps.

It's nylon gears 3-pole engine, and an oilite bushing.
Futaba services and products have actually actually in fact a 1-Year Warranty against defects w/material & workmanship

SPECS Speed: .18sec/60 deg @ 4.8V - .14sec/60 deg @ 6V
Torque: 35 oz/in @ 4.8V - 43 oz/in @ 6V
2.5 kg/cm @ 4.8V - 3.1 kg/cm @ 6V
Length: 1.1" (28mm)
Width: 0.5" (13mm)
Height: 1.2" (30mm)
fat: 0.6 ounce (17 grams)
Connector: "J" type with about 5" cable

INCLUDES: One S3101 micro servo with pre-installed "x" servo horn
Two steel eyelets
Two black colored colored round plastic grommets
Two servo mount screws
Two servo horns (1 round, 1 "X" and 1 straight)
NOTE: for additional servo horns utilize FUTM1985

REVIEWS: ins (millimeters) .54 (13.6) flange to
Side view: 1.17 (29.7) __?-------�__ top of
bottom to top ? ? shaft
of situation (perhaps not ? ? .85 (21.5) flange to
output shaft) �________? base of
1.1(28) servo

Top view: we ?-----------?
.51(13) ) * (
we ?-----------?
1.38(35)
center-to-center of holes
6/6/95axy
9-15-00 UPDATE
The latest shipment for the sevos are in reality coming with white servo arms, which
some clients may mistake for Hitec. They have been maybe not Hitec. They look like they
will fit, however the consumer operates the probability of stripping the output shaft if
they you will need to utilize them on Hitec.
