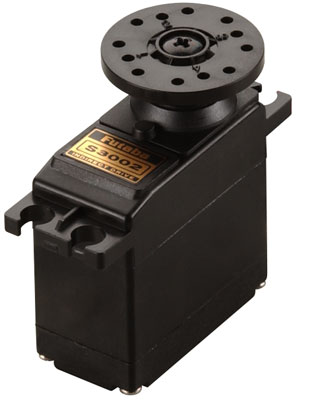

Futaba S3002 Mini Ball Bearing Metal Gear Servo  [S3002]

this really is a S3002 tall Torque Mini Servo for Cars or Sailplanes.
This has steel gears, 3-pole motor, and two ball bearings

This servo could make high-current draw from your own batteries.
If utilizing NiMH or Li-Po batteries, get them to capable
of delivering adequate Amps.

INCLUDES: One S3002 High Torque Mini Servo w/J connecter.

SPECS: Length: 1.2" (30mm)
Width: 0.6" (15mm)
Height: 1.2" (30mm)
fat: 1.3 oz (37.2g)
Torque: 53 oz/in @ 4.8V - 64 oz/in at 6V
3.8 kg/cm @ 4.8V - 4.6 kg/cm @ 6V
Transit Time: .26 sec/60 deg at 4.8V - .21 sec/60 deg at 6V
upJ2M 9/06/92
ir/jl
9-15-00 UPDATE
The newest circulation of sevos are now actually coming with white servo hands, which
some customers may mistake for Hitec. They're perhaps not Hitec. They resemble they
will fit, even so the customer runs the possibility of stripping the manufacturing shaft if
they attempt to utilize them on Hitec.
