Kyosho 32780 - MINI-Z ASF 2.4GHz MR-03VE JSCC Blue Limited sho 50th Anniversary Specification  [32780]

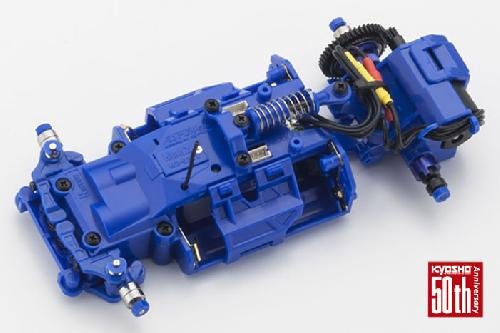

Vivid blue colored framework and framework elements mark the MR-03VE Blue Limited 50th Anniversary Chassis as a certain unit. Featuring its brushless motor demands the MR-03VE framework competes at most useful level in the popular JSCC system linked to the MINI-Z Cup. Besides the ECO Tuned VE motor’s motorist friendly traits, comes the dependability and high torque of brushless engine performance. Inside heat of JSCC system race battle, these advantages could offer the power. This limited variation with full bearing requirements is delivered on very same expense even though the current framework set. Additionally, the framework allows an optional gyro become bolted on and it's befitting all human body designs (someone designs need extra elements). Download the free ICS VE Manager computer programs through Kyosho internet site and step-by-step settings could be modified (adaptor provided individually will become necessary). Advanced features and technology prepare the motorist along with the product for future development. Utilising the MR-03VE Blue Limited 50th Anniversary Chassis, there exists the particular essence associated with rushing experience.

Priced just like the prevailing framework set, this model features complete ball bearing must provide high effectiveness and low opposition for JSCC system competition.

• Pre-assembled MR-03VE N-RM framework set fitted with ECO Tuned brushless motor.
• distinctive version blue color finish.
• Complete ball bearings, ball diff, silver plated battery pack terminals included as standard.
• RM motor mount and slim tread requirements.
• Includes MM engine mount and front tread replacement components.
• Compatible utilising the the majority of human anatomy designs. (Some systems need additional components)
• Upper address allows optional gyro to be effortlessly fitted.
• Appropriate for volume of optional components the MR-03 framework.
• Revolutionary front suspension system system design adjusts camber with suspension system swing.
• ASF 2.4GHz system instantly manages regularity bands. ※Transmitter offered separately
• Digital steering servo featuring coreless motor.
• Spring stopper is established or eliminated with only 2 screws.
• Tall conductivity silver plated power packs terminals.

  ＜ Kit articles ＞

• Pre-assembled MR-03VE N-RM framework fitted with ECO Tuned VE brushless engine
• One-piece RA-27 receiver with ICS connector and brushless motor circuit board
• MM motor mount change components
• Front part lower and top meals, steering tie-rod for wide tread.
• Front suspension system system modification spacer
• 7T, 8T and 9T pinion gears
• Wheel wrench
• Pinion gear tool
• Pairing stick
• Spare wheel peanuts

＜ needed for procedure ＞

• ASF2.4GHz PERFEX KT-18 transmitter for MINI-Z or Kyosho EX-5UR ASF transmitter (No.82011)
• Auto Scale Collection (human body set, tires. tires)
• 4 x AAA-size alkaline or NiMH batteries
• 4 x AAA-size alkaline batteries for transmitter (KT-18), 8 x AA-size alkaline batteries (EX-5UR)

Chassis Technical Information

• Size
  124 – 133mm (MM Chassis:125 – 133mm, RM Chassis:124 – 132mm)
• Width
  65 – 76mm
• Height
  35mm
• Wheelbase
  86 – 106mm (86,90,94,98,102,106)
• Tread (F/R)
  (Wide)61.5mm/59mm (Narrow)56.5mm/56.5mm (whenever Wheel Offset=0)
• Tire(F/R)
  23.5 – 25 x 8.5mm (provided individually) / 25 – 27 x 8.5-11mm (available individually)
• Gear Ratio
  7.3, 6.3, 5.5, 4.9 : 1
• Weight
  135g (approx. without body)
• Engine
  ECO Tuned VE Brushless
