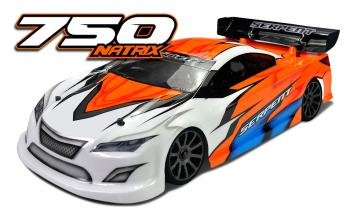

Serpent SER804011 Natrix 750 1/10 200mm gp car  [SER804011]

Item Description

• Key new features
  Michael Salven as chief designer, developed this successor the worldchampionship winning 748. The key brand new feature may be the fresh straight back geometry which improves back traction while nevertheless keep an unbelievable rotation and steering in corners. This might be alongside enhanced accessability and ease of maintanance of essential elements since the diffs for example.
  Other key top features of the 748 like big-bore shocks and Xli gearbox it's still unchanged.

  Serpent 750; details

  Chassis
  Symmetrical chassisplate optimised flex and torsion, in 7075 T6 aluminium, anodised and laser etched. Chamfered sides to obtain additional ground approval whenever cornering and countersunk holes. Central slots to setup fat, that could slip towards the proper place and guaranteed in full.

  Radioplate
  The 2mm carbon dietary fiber radioplate has many functions. It holds the fueltank constantly in place that is become set up on 3 aluminum articles in synthetic. In regards to the staying hand component the receiver and right component the battery pack mounts to a nicely shaped carbon fiber supper that links toward radiotray, sqeezed in right between gear and tank. The radioplate sits all over again reduced on automobile , for reduced center of gravity. Unique features are the possibility to install an additional gear tensioner and improved accessability and flex control through a new way of fixing the servosaver.

  Central Flex system
  a large component section of the radioplate incorporates an excellent flex-control system. It offers 2 machined aluminium elements. The reduced one links towards radioplate supports an the top one with screws towards upper aluminum meal and radioplate. You are going to either run the 748 rigid or with flex . The optional ball-bearings and screws are available seperate. Testing demonstrates flex in center backside associated with car gets the numerous effect and responds many predictable additionally.

  750 servo owner
  The composite servo owner is unchanged from 748. Its designed to have both servo nearer on center distinct the automobile then when low that you may. Both lay-down low profile servos are seated acutely near together and install actually efficent and easy technique. The dog owner mounts on radio-tray.

  Linkages
  The throttle / braking system linkage is identical design as positioned on the 977 1/8 vehicle. A pivot-lever system with an ingenius ball-cup system towards guide the cable and still have almost friction free action.


• 750 receiver industry
  The composite receiver industry is little but holds and protects numerous frequent contemporary receivers effortlessly. The antenna mounts toward top. The container is firmly fastened on radioplate with a nylon bracket . The container is relocated many of on the way to in that you can. Regarding the radioplate only a little owner is equipped to just accept the plugs the battery power, to be on/off switch.

  Battery-holder
  Carbon fibre battery-holder placed in the middle of your tank and pipeline, to discover the best level fat security. The battery power is not hard to strap alongside tape towards the bracket. Spacers lets you install the battery greater or lower according to the battery you wish to utilize.

  750 fueltank
  confirmed 75ccm nylon fueltank with clear product to effortless see fuel-content. Big springloaded quick-fill restriction with seal with big tank opening for effortlessly refills. The bronze sintered filter are able to keep gas neat and ensure tank will clear till last fall if required. Fueltank sits lower in on vehicle for low center of gravity. Fueltank is installed with videos on 3 aluminum articles with synthetic buffers.

  minimal bigbore shocks
  covered threaded shockbodies in good aluminium. Supersmooth x-ring / machined bushing package, to steer and seal the spring-steel piston rods. Precision machined pistons integrated into 3 sorts. Threaded pre-load shocknuts in aluminum with o-ring inside. Light but strong nylon spring-cups. Selected, matched and paired shockabsorber springs with color coding.

  Front bumper and bodymount
  the newest front side part bumper has a larger aerodynamic effect and excellent safety. Moderate or small foam bumper pad can nevertheless be fitted as optional. The top carbon fibre bodyplate mounts towards front part bumper with aluminum post and secures top bodyposts


• Shocktower front component
  Superlow 3.0mm carbon fibre shocktower with 3 jobs for top level level shockmounting. In the centre you can expect to install another bodypost as needed.

  Front brackets
  a great and superlight framework of topquality aluminium elements include top-brackets, L and R equal bearing brackets, reduced suspension system system system system bracket front part. The available style design enables quickly elements trade as required, like gear, diff or anti-roll club. Furthermore te upper bulkhead are available truth split-design aluminium brackets. A silly nylon downstop bracket secures constant and easy-to-adjust settings.

  suspension system system front
  unique front liwer hands are no a closed-bottom design. Plastic or optional carbon covers offer adjustable tightness. The strong long double A-arm suspension system usage aluminium pivotballs, which pivot in light nylon cups. The hands pivot internally on springsteel pins. The top pivot-inserts are acclimatized to change rollcenter. Very easy to reach and change journey height, front width, toe-in, caster and camber.

  Steeringblocks
  excellent composite steeringblocks with 2 Ackermann jobs, L and R use exact same . The steeringblocks work inserts, which permit to change the kingpin inclination to a respected or trailing location. The steeringblocks moreover allow utilizing the optional carbon fiber aero disks become put up on cheap flex and an immediate steering feel.


• Wheelaxles / cvd
  The spring-steel wheelaxles are seated in advanced bearings. The light and durable spring-steel cvd’s bring the ability to leading and straight back tires. Wheels are set up to orange anodised top quality aluminium hex-adaptors utilizing flanged wheelnuts.

  Anti-roll club front
  The ballraced cable kind anti-rollbar inside front component is really available and alter for just about any other sort or depth as needed. The anti-roll club is from paid back a-arms with a traditional pivotball/cup system, which provides direct and smooth procedure and it is a facile task to set and adjust.

  Servo-saver / steering
  The servosaver is obviously fixed in another way on top. It would likely remian fixed in to the automobile whenever tje radioplate is eliminated. And this additionally improves tweak of automobile. Two various inserts enable 2 ackermann settings. As a result of the open design the linkages with L/R threading are reached easily. The complete system allows extremely exact steering and minimal bumpsteer.

  Middle shaft owner
  Machined 2 piece aluminium center shaft owner, which firmly holds the springtime steel center shaft, and doubles up as owner associated with the pipe-mount.


• Right back brackets
  exceptionally rigid but available tail design with a composition of machined aluminum brackets, allowing effortless upkeep. The differential brackets, L and R equal, are toothed and chair the excentric bearing owner, which make it possible for developing the belttension. The newest produced straight back bulkheads triggered that it's feasible to do business with super slim back reduced pivots for improved traction and rotation. Plus the acces towards diff is feasible without reduction associated with the gear. The machined aluminium paid down suspension system system system brackets have in fact really roll-center inserts with 2 functions available.

  The 2-speed gearbox shaft holders are typical amazing. They're lighter versus earlier versions. The right hand component is maintaining the entire brand new braking system system which much like the one if 988 and very an easy task to steadfastly continue. All topquality machined parts with anodising and laser-engraving.

  Brake -system
  the latest braking system system is fixed with just 2 screws and enables access immediately and maintenance. The superlight disk allows smooth and stopping, although the available system avoids overheating. The ball-raced excenter and lever provides an exceedingly smooth and direct brake-feeling.

  straight back carbon shocktower and camber bracket
  the reduced 3.0mm carbon shocktower has 3 top mounting spot the shocks consequently mounts the body-posts. The camber bracket provides 8 jobs to select from, 4 interior and 4 out holes. The shocktower is preparing to install the surplus body-protectors, being optional.

  Suspension rear
  the reduced back composite arms are another design whenever key fingers underneath is closed. With a plastic or carbon top cover the tightness is adjustable. They are considerably longer versus arms regarding 748 and produce a wider set-up sweet-spot with a rise of grip and lots of other activities steering. The top of camber rods relate to the carbon camber bracket with 8 mounting jobs for roll-center in addition to the camber pole is easy to accomplish use of and possesses L/R threading for quick modifications. The aluminium pivotball system enables fast changes in width and toe-in. In paid off the wishbone pivots on springsteel pins, which chair with roll-center inserts in anodised aluminum suspension system system brackets.



• Uprights / wheel-axles
  Durable medium kind composite uprights, which seat the wheel-axles bearings. The upright offers the mounting place for the steel camber-rod with L/R threading. Rolll center chnages is made out of the upright with shims. The upright is mounted utilising the optional carbon fibre aero disks to get extra right back hold and straight line protection.

  Wheelaxles and driveshaft
  The durable springtime metal wheelaxles along with springtime metal driveshafts bring the capability from gear-diff towards tires. Tires are fitted on high grade anodised aluminum wheelhex adaptors and guaranteed in full with flanged wheelnuts.

  Anti-roll bar backside
  The ballraced cable type anti-rollbar within the straight back is truly accessible from top and change for any other kind or depth as needed. The anti-roll club is by using this paid down a-arms with a spring-steel pole.

  750 Gear-differentials
  The compact, durable and lighter gear differentials could be the proven design concerning the 748. Precision moulded steel gears, 2 small 14T and 2 big 28T people. The durable and light springtime steel lightened diff-adaptors put on your driveshafts. Front and straight back geardifferential share comparable interior elements.

  CVD driveshafts
  Spring steel, light and extremely durable CVDs situated in the foremost and backside. Precision mounted hard metal pins



• Pullies
  Precision moulded super-true pullies, which work holed sidewalls to let debris transfer easier. Light and durable.

  Belts
  minimal friction Kevlar reinforced belts with fine pitch. Longlasting and smooth.

  Belt-tensioner
  Ball raced belt-tensioner, machined from aluminium and certainly will install on top or underneath the radioplate. With all the new design radioplate its likely to add yet another tensioner for improved gear stress.

  Gear-box SL6 - Xli
  The fine confirmed SL6 gearbox finished up being redesigned and lighter. Smaller bell, adaptor and footwear decrease fundamental weigth and rotating mass, because of this paid off intertia. Durable and longlasting gears. Exceptional bearings. Actually grippy smaller springloaded 2-speed footwear, a simple task environment.

  genuine movement Centax clutch
  Serpent created the Centax clutch inside mid 90-ties, and all sorts of sorts of brands accompanied it. Tiny improvements can be found to make the initial system better yet. The specific movement Centax has a group flywheel, along with the taper component about the stress dinner. This permits the flyweights getting worthwhile results better yet. The difficult anodised aluminium flywheel has 4 holes to get comfortable using keep the flywheel in position whenever establishing the pre-tension. The flyweights are constructed with topquality teflon in addition to another area to work with grubscrews to make sure they have been heavier. The red friction clutch footwear is incredibly grippy, and works exceptional utilising the steel clutch housing. The hard anodised gears screw on threaded metal bell.

  engine mount
  The light machined and anodised motor mounts completely seats the motor, well alligned combined with gearbox. Tiny modification might be made to have the engine nearer towards gearbox.

  handbook / set-up sheet
  The 750 comes with all total color construction manual, with a facile task to check out set up steps. The manual also contains exploded views area showing all component numbers, which means complete parts-list, showing additionally all optionals. The kit includes a default and blank set-up sheet. Editable sheets will likely be inside Serpent internet site.

  Decals
  The 750 includes one sheet with Serpent generic logos one other with 750 logos. Decals have grown to be slim item and come pre-cut.

  Packing
  The 750 is necessary a good, little carton package with good photos. The packaging the bags follows those activities in manual.


  made by World and European Champion Michael Salven and tested by world champ Dominic Greiner.
