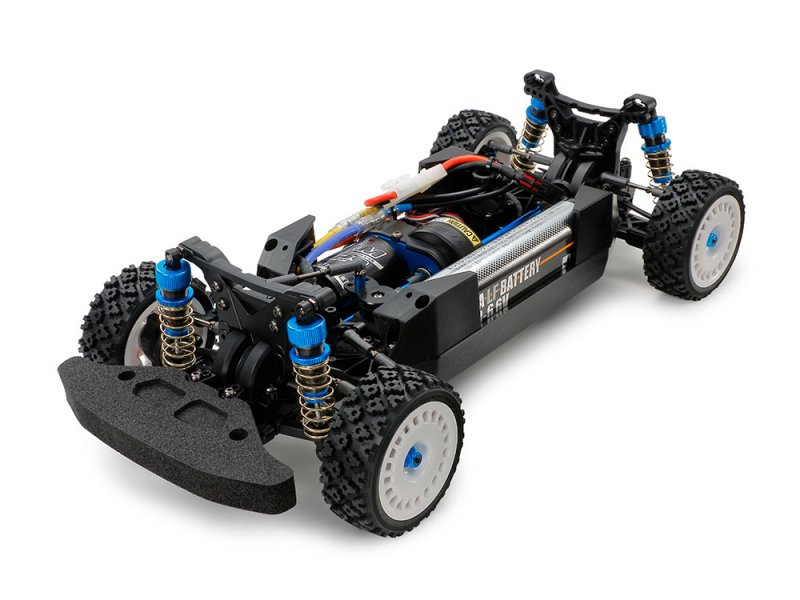

Tamiya 58707 - 1/10 XV-02 Pro Chassis Kit [58707]

Price:

NZD$408.59

Brand:

Tamiya

Model:

58707

GTIN:

4950344587070

Condition:

Brand New

Quantity:

Available in warehouse

2 Reviews

Write a review

alt="Tamiya 58707 - 1/10 XV-02 Pro Chassis Kit" title="Tamiya 58707 - 1/10 XV-02 Pro Chassis Kit"

Description

The all-new XV-02 expert framework kit is Tamiya’s next modern age, function built, 4WD Rally unit! The XV-01 professional included a 4WD gear drive system with clever positioning the RC electronic elements with debris protection compartments. The all-new XV-02 professional took its 4WD drivetrain into another way if you use a shaft-driven system with front mid-ship engine positioning including equal size front side and back propeller shafts!

XV-02 chassis immediately:
• includes two 39T differential gears and something 40T differential gear for modification of front part and right back drive safety. (Over-Drive and Under-Drive modification)
• usage 39T gear (w/15T gear) on front component and 40T gear (w/15T gear) in backside for drive balance bias to front and vice-versa for drive security bias to rear.
• Features newly-designed elements such as for instance gears, bath tub frame framework, framework target, caster obstructs featuring 6-degree caster angle (XV-01 framework: 10-degree caster angle), and bumpers with skid perspectives to reduce surface contact.
• The engine mount, propeller shafts, input and center shafts, and urethane bumpers have really in fact unique steel elements.
• Features a longitudinal battery invest center-left for maximum balance.
• considerably longer aluminum dampers can be used at front part and back.
• A polycarbonate framework address with wheel well liners help with preventing dirt and dust from getting back.
• Suspension hands and front uprights are based on the XV-01 framework kit.
• comes with rally block tires and tires.
• demands: Tamiya Rally Body, 2-channel radio, servo, ESC, 540-type engine, and 7.2-7.4volt battery power with suitable charger.

specifications

● Chassis size 368mm (excluding human body)

● Chassis width 180mm

● Wheel base 257mm

● Frame = tub type

● Drive system = front midship engine / shaft drive 4WD

● Diff gear = oil-filled gear differential for both front component and right back

● Steering = 3-split tie pole type

● Suspension = 4-wheel double wishbone

● Damper = Aluminum cylinder long oil damper (blue restriction specification)

● Gear ratio = 9.58: 1 with all the current 19T pinion inside the kit (10.71: 1 to 6.28: 1 with the separately offered pinions (around 14 forms of gear ratios is plumped for)

Specification:

Adjustable Gear Ratio : Yes
Bearings : Includes complete ball bearings
Chassis Material : FRP Fiberglass Reinforced Plastic
Chassis Type : XV-02
Construction Type : Assembly Kit
Differential Type : Gear-Type (Oil-Filled)
Drive sort : 4WD
Required to perform : 2-channel radio, steering servo, ESC, 540-size engine, 7.2-7.4volt battery power & electric batteries charger, Rally Body, and Tamiya PS paint.
Scale : 1/10
Shock Damper : CVA Oil Filled
Suspension : entirely Independent Double Wishbone
Terrain utilize : Multi-Purpose
