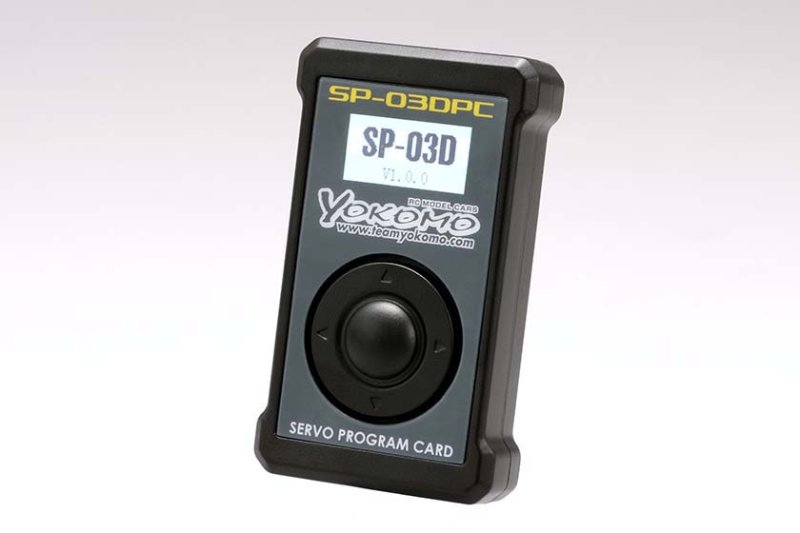

Program card for SP-02DV2/SP-03DV2 series servo Steering \/ Servo by Yokomo SP-03DPC-1
The drift servo program card is now available, which is equipped with a steering hunting suppression function and further enhances the functions of the drift-specific servo, which is now essential for competitive RWD drift cars!
Adjust the power, torque, hunting suppression, and neutral width values, and also realize a servo-operated reverse function. Although the default performance of SP-03D and SP-02DV2 is sufficient, detailed settings can be made to meet the demands of expert drivers who require even more delicate operation.
For example, if the driver himself wants to increase the feeling of operation, or if the machine is well balanced and there is no need to raise the hunting suppression ground, increase the power and torque to give a more direct feeling of operation. On the other hand, in severe situations such as chasing races (such as when you want to increase the gyro gain value), you can easily adjust the steering characteristics according to the situation, such as reducing the power and torque and increasing the hunting suppression value. It will be possible to pull it out.
The main unit is equipped with a servo connection port and a power port. For power supply, you can use a BEC power source such as an ESC or receiver, or you can connect it from a computer or mobile battery with a micro USB connector. A connector cord for BEC power connection is also included.
*Connecting a BEC power source and a micro USB power source at the same time will damage the ESC's BEC circuit and program card circuit, so please never connect two types of power sources at the same time.
Supported Chassis
SDR-020 / SDR-020P / SDR-020R / MDR-020 / MDR-020BL / MDR-020P / MDR-020R< /p>
