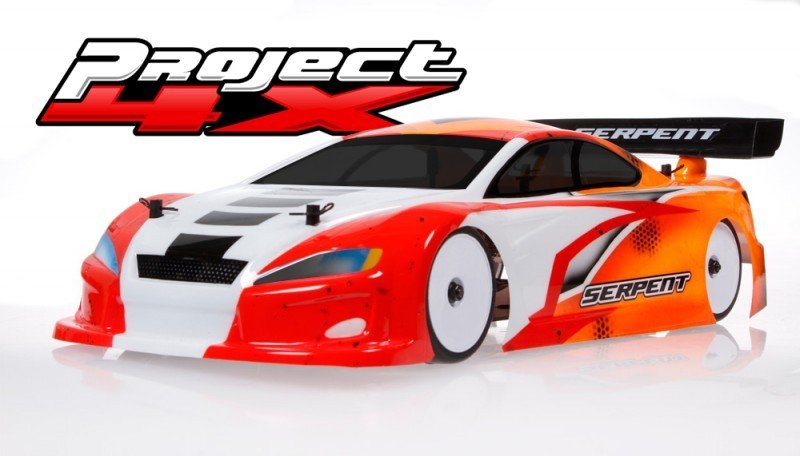

Venture 4X Touringcar EP 1/10 Serpents Venture 4X brand-new, revolutionary and revolutionary 1/10 Touringcar The venture 4X touringcar has a genuine groundbreaking and proven design, which suspensions works in a really effective different technique, with an incredibly low center of gravity, quite simple to possess results on and extremely durable. An easy task to push and lightning fast ! 2016-2017 IFMAR World Championship third location 2016 EFRA EC A-main finalist 2016 a couple of ETS A-main finalist
Specs:
- Car: Venture 4X #400030
- Class: 1/10th scale 190mm Electric
- Purpose: 190mm Competition touring automobile
- Chassis: 2mm carbon, CNC machined
- Suspension system: Separated heave and move system
- Back axle: right back gear- differential with composite gears
- Front axle: Front spool with blades
- Drive system: 4wd through 2 kevlar strengthened timing belts
- Shock absorbers: 2 heave dampers and 2 roll dampers
- Wheel base: 254mm +/- 4mm
- Track-width front component: 190mm + /- 6mm
- Track-width straight back: 190mm + /- 6mm
- Weight (framework): 550 grms
- Adjustability: Camber, Caster, Down-stops, Up-stops, Toe-in, Track width and Roll facilities
- maybe not Included: motor, electric batteries, price Controller, tires, body, radio equipment.
Features:
- Separate roll and heave movement towards the automobile to create set-up easier and many more precise
- Roll and heave dampers are little, they could require just lower amounts of oil
- Dampers have machined pistons for some effective perseverance
- All dampers are through pole piston systems therefore no membrane layer layer needed
- Good collection of heave and roll springs
- Anti-roll club function contained in roll damper/springs
- easy and simple fast to alter / substitute your entire damper items
- Front and tail are specially nearly identical, so less free elements needed
- Pivotball suspension system system for ease and free movement
- The Pivotballs are plenty smaller in diameter when compared with past touringcars
- Easy diff and spool reduction
- extremely low center of gravity
- Reversed steering system for better Ackermann geometry
- No top deck needed (topdeck are had as optional for tough sporting circumstances)
- Center stiffener produced from 7075 T6 aluminium for rigidness and anti-tweak, connecting foremost and end
- One piece motorholder which also links toward center stiffener and also the straight back RRS system
- Re-Active back steering RRS system is standard
- Ballraced mid-shaft holders enable effortless maintenance and changing of spurgears
- Pullrod activated system with rockers to stimulate the dampers
- same heave damper front component and right back that may effectively be installed within the diff/spool just over the framework for cheapest feasible center of gravity
- groundbreaking differential utilizing brand new gears furthermore for smoother functioning
- Battery mounting system permits reposition the power packs more front or right back
- in the event of shorty Lipos are utilized, the Lipo could be possitioned in 3 designs
- One screw ride-height modification from framework component
- Lightweight front part aluminium spool with hardened steel outdrives to make use of blades
- Carbon fibre framework in 2mm as standard
- DJC system inside the front side component made from spring-steel countertop wheelchatter and back regular cvds constructed from 7075 T6 aluminium save fat
- One fast the other considerably longer kevlar strengthened drivebelt and supertune working pulleys, midshaft pulleys created from hard anodized aluminium for optimum durability
Ball-bearings
good, high accuracy lubricated longlife NSK bearings constructed from hardened steel throughout.
Fasteners
Quality steel fasteners for durability. Minimised range different screws for effortless arranged and maintenance
Framework
Carbon fibre framework in 2.0mm depth. Countersunk holes and created to have equal flex left to recommended.
The screws to set trip height are modified from base associated with framework with just a unitary screw ahead and another to the back with an easy and effective procedure to modify the rideheight.
Battery mounts
current battery power mounts stated in aluminum and carbon fibre and invite to put the battery pack more tot he ahead or back and secure it well setup. Shorty lipos are positioned concentrated, inside front or rearward location.
Drifting servo mount
The servomount is a variety of a carbon brace and aluminum articles. The carbon brace is bolted towards main brace and may not touch the framework to get rid of any flex impact.
Steering system
The ballraced aluminium steering system consist of an inversed leversystem to higher control the Ackermann environment. The angle difference involving the inside and outside wheel will undoubtedly be more linear versus main-stream designs.
Drivetrain
in the front side the 4X features durable springtime steel twin joint cardan shafts, alongside blade kind spool.
toward right back lightweight coated aluminium cvd style dogbones are utilized with durable springtime metal wheelaxles.
Both front component and right back wheelhexes are a lightweight aluminium design
Steeringblocks / uprights
inside front component and rear the very same steeringblocks/uprights are around being used. The pivotball system allows fast and simple quick set-up improvements and works really efficiently. In front side there clearly was 3 Ackermann functions and shimming below the steeringrod can be employed for fine tuning of bumpsteer faculties. In back the device allows establishing Reactive straight back Steering. This RRS system allows an adjustment of toe-in because the suspension system system system compresses so increases cornerspeed.
Wishbones / pullrods / rockers
the paid off wishbones are exactly the same front side and backside as well as the identical pertains to the most notable arms.
The paid off supply mounts of 2 brief pivot pins combined with mounts have a bit of space to flake out and play with wheelbase with the use of videos. The paid hands additionally function 2 downstop screws front and back.
The surface of the wishbones assist fast caster modifications with videos and run using an easily removable long pivot pin.
Rocker and pullrods system
The pullrods connect to the utmost effective arms and run the ballraced aluminium rockersystem which activates the dampening systems for heave and roll action. All trackrods and pullrods had been produced in coated lightweight and tough 7075 T6 aluminum.
Aluminium top hinge pin holders and alu stiffeners
The arranged is split in 2 sections allowing for simple maintenance and change of settings. The interior top brace links both sides and creates a remarkably strong framework preventing tweak. The topbrace is from low brackets with alu stiffeners. These stiffeners might merely removed whenever more flex will become necessary.
The arranged rest on roll center spacers. To incorporate additional shims for changed cambergain and rollcenter is a straightforward and fast environment.
Bumpers and bodymounts
in the front component a solid bumper-set utilizing an amazing size but light foam bumper which can be sandwiched between paid down composite bumper and top graphite owner. The versatile moulded bodyposts with swivel-system undergo. Optional human anatomy height systems can be found.
in the straight back the reduced bumper will avoid problems for the back of 4X and so the moulded bodyposts with swivel system mount on a dense and rigid carbon dish, that's the main strong end installation.
Suspension System
Inside 4X vehicle the heave and roll linked to the vehicle run and therefore are additionally set individually. One of many keys and end the automobile have grown to be nearly identical in design and share lots of the identical components front component and back, and that means you require less various spares.
Heave damper
there was clearly one have actually really damper right right in the front then one in back addition it works with all the exact same method. The heave damper is available just above the framework to lessen the guts of gravity. Pullrods which are attached to the top of arms url towards the rocker system. The rocker system is linked through a swivel product towards heave damper and roll damper product. The tiny heave damper has a small strong shockabsorber springtime and it is oil filled. Various sebum and springs can be used for setup work, impacting mainly bump and on-throttle/off-throttle transitions. Its a simple task to find yourself in from base concerning the framework.
The journey height is prepared with an easy one screw environment in framework, both front and straight back.
Roll damper
The roll damper device include an oil human anatomy for dampening with a thru shaft and contains now now some springtime for each component. The product controls the roll the framework, it really works as an anti-roll club.
Various oils and springs can be used for setup work. The whole device arrives after releasing merely 2 screws. You can have complete rolldamper assemblies prepared to alter settings in moments.
Chassis stiffner
The 7075 T6 main alu brace manages the connection between front part and buttocks and stops undesired tweak and manages torsional anxiety. For some circumstances it eliminates the need of a topdeck.
Motor mount
Acutely low 7075 T6 aluminium motormount which doubles up as connector for the midshaft holders, connection the RRS system, owner the alu stiffener and connector toward main brace, all-in one.
Gear differential
The nicely shaped renewed gear differential features groundbreaking inside gears which assists its supersmooth. The compact and light product holds sufficient oil to give stable performance through the whole run. It's without headaches available have to straight down and re-mount the differential.
Front spool
The coated aluminium front side spool with lightened springsteel outdrives is a blade sort which guarantees superb administration and durability through the entire battle, and it's a facile task to change blades as needed. It is without headaches to have and re-mount the spool. The springsteel is strong enough that one can efficiently complete your run despite a broken blade without damaging the outdrives too much.
