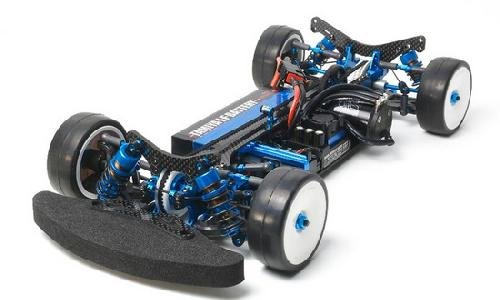

Tamiya 42270 - 1/10 RC TRF418 Chassis Kit  [42270]

• New TRF418 chassis is registered towards the IFMAR World Championships become held in 2014 industry. Device another primary elements all test tires and power of latest. Major framework area system in minutes, to link the servo mount and suspension system hands, stabilizer additionally has become a fresh design. Aluminum engine mount plus bulk customizations, like weight and front/rear stability. It is a machine which includes been developed set the triumph from battle.
• The all new TRF418 race framework may be the successor toward TRF417 framework show, that has provided TRF magnificently since its 2010 first, securing the elite group many competition victories including a third IFMAR ISTC World Championships consecutively and unprecedented 5th general. The TRF418 is planned for your requirements have to touring car racing to some other level with all the current 2014 IFMAR world Championship beingshown to people there! The TRF418 represents first complete overhaul that Tamiya's top competition framework has withstood in 36 months. Honed through countless tests utilizing cutting-edge power sources, tires, and for that reason linked to the feedback of TRF works motorists Marc Rheinard, Viktor Wilck and of course reigning World Champion Jilles Groskamp, the framework boasts an almost 100per cent new design. Tamiya is consistently pushing the limitations of R/C rushing technology in an endeavor to help keep prior to the pack and secure the TRF group's sixth title, and TRF418 claims become another success story.
• front side and rear paid off bulkheads function identical design, while top hands have really an optimal accessory angle.
• Center bulkhead is split from top deck, optimizing framework roll traits.
• Features redesigned front/rear suspension system arms with accessory points in certain battle functions just.
• a weight-loss of 2g is achieved with a lighter direct coupling.
• Newly-designed stabilizers are now linked utilizing ball connectors.
• Brand brand new steering arms offer an even more linear steering feel.
• Includes a 20T pinion gear for the next gear decrease ratio of 1.85 (minimizing rate loss when throttle is disengaged.)
• The usa launch of the TRF418 should include another bonus elements. These bonus elements will nevertheless simply be around in kits throughout the initial launch date of December 2013. Kits produced after the December date will not are the bonus elements.
• Damper Springs - soft & hard, 2pcs. each
• Soft Stabilizer Rods- front & back, 1pc. each
• 1 additional group of Suspension Arms - enough to kit from chassis
• 1 additional few Front Uprights - sufficient to kit from the framework
• 1 additional group of Rear Uprights - sufficient to kit from framework

Specs and characteristics:

• Scale : 1/10
• Construction sort : assembly kit
• Terrain usage : on-road
• Drive-train : 4WD
• Drive kind : gear
• Drive line : universal
• Differential type : sealed oil filled gear and Spool
• Suspension : totally split double wishbone
• Steering device : bell-crank
• Shock damper : oil-filled damper
• Shock damper item : aluminum
• Tire kind : perhaps not included
• Tire tread : n/a
• Body product : not included
• Chassis product : carbon fibre dish
• Electronic Speed Control (ESC) : maybe not included
• ESC model : n/a
• LED Light buckets : no
• Light-emitting Diode lights : no
• Motor : perhaps not included
• Bearings : sealed ball bearing
• Adjustable camber : yes
• Adjustable toe perspectives : front part and rear
• Adjustable ground approval : yes
• Adjustable gear ratio : yes
• Adjustable wheelbase : yes
• Adjustable track width : yes
• Adjustable surprise angle : yes
• Unique function 1 : completely new finish redesign from TRF417 show.
• Special feature 2 : front side side and rear lower bulkheads work identical design, while top hands have really an optimal accessory angle.
• Special function 3 : Center bulkhead is split from top deck, optimizing framework roll traits.
• distinctive function 4 : characteristics redesigned front/rear suspension system hands with accessory points in particular rushing functions just.
• distinctive function 5 : a weight-loss of 2g is actually accomplished with lighter direct coupling.
• Special function 6 : Newly-designed stabilizers are now linked utilizing ball connectors.
• distinctive function 7 : new steering hands provide a linear steering feel.
• Unique function 8 : Includes a 20T pinion gear for a additional gear decrease ratio of 1.85 (Minimizes rate loss whenever down throttle)
• needs A : 7.2 battery pack & charger
• Needs B : 2-channel radio gear
• requires C : tires, tires, human anatomy set, motor, esc
• Needs D : polycarbonate paint
