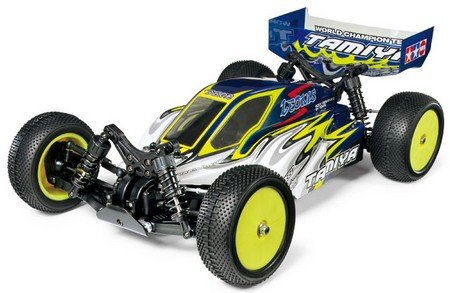

Tamiya 58507 - 1/10 RC DB02 Leonis - DB02 - 4WD High Performance Off Road Racer  [58507]

• [Tuner-Styled Off-Road Racer]This 1/10 scale R/C buggy Leonis features the newly-designed DB02 framework, including a highly-efficient shaft-driven 4WD system and exemplary controllability because of a horizontally-positioned motor nearby the guts the framework. It features an aerodynamic body shell that has been produced by famous Japanese battle group and tuning company, TOM'S. The "cab ahead" human anatomy follows design trends available on actual competition cars to scale back drag including direct smooth airflow on back wing to simply help increase the machine's performance.
• [Unique Shaft-Driven 4WD Layout]The balanced DB02 has a drivetrain design which makes utilization of four bevel gears to transfer the motor ability to leading and right back gearboxes via propeller shafts. An extremely durable one-piece die-cast motor mount holds the engine and spur/bevel gears while front/rear enclosed gearboxes function ball differentials designed to use identical inch-sized diff balls as those found in the high-end TRF502X. The proven 4-wheel double wishbone suspension system system system from DB01 includes CVA shock products. An array of present DB01 choice elements may also be appropriate the DB02 make it possible for fine environment modification.

Specs and Features:

• 1/10 scale R/C installation kit.
• Polycarbonate body created by Toyota Tuner TOM'S.
• Polycarbonate right back wing included.
• Shaft-driven 4WD layout
• Engine lies horizontally within center of chassis to produce maximum energy transmission also safety and stability.
• Durable Fiberglass Reinforced vinyl bath tub framework is mated with front & right back top braces to offer additional framework rigidity.
• Front & back lightweight gearboxes have actually ball differentials.
• The proven 4-wheel double wishbone suspension system is through the DB01 framework (suspension fingers and axles originate from the DB-01 framework)
• Plastic human body CVA shock devices are included
• 3-piece steering linkage
• Front & rear Dual Block Tires and dish tires included.
• Battery energy is positioned toward the trunk for better security while leaping.
• Compatible with 7.2 volt stick-type battery packs
• Length: 410mm ,Width: 248mm ,Height: 139mm
• body weight: 1,165g (excluding R/C products, battery power)
• Wheelbase: 280mm
• Tread: 214mm (front part), 210mm (straight back)
• Tire Width/Diameter: 31/89mm (front side), 42/89mm (straight back)
• Fiberglass-Reinforced Nylon Resin Bathtub Frame & Upper Braces
• Gear Ratio=8.16:1 (whenever along with individually offered 23T pinion gear)
• demands an electrical rate Controller (provided separately)
• Type 540 Motor (offered separately)
• Established suspension system from DB01 has CVA surprise products.
• 4 metal bevel gears housed inside one-piece die-cast engine mount send motor ability to propeller shafts.
• Battery pack lies through the back for excellent framework stability. Both right and split battery power packages may be used.
