Kyosho 30570SP - 1/27 R/C Electric Powered Touring Car - MINI-Z AWD MA-010 Chassis Assembly KIT SP Limited [30570SP]

Price:

NZD$325.01

Brand:

Kyosho

Model:

30570SP

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - On-Road - Mini-Z category

Write a review

Description

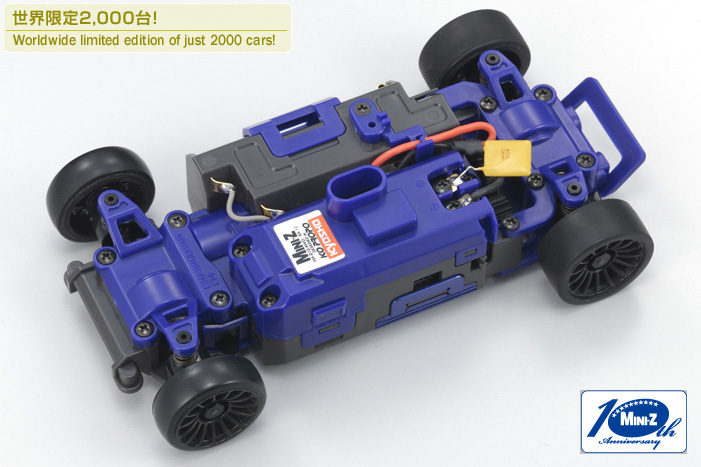

Mini-Z 10 year Anniversary AWD!
Original kit without circuit board works together both 27MHz and 2.4GHz R/C systems!

Precision differential gears on front component and back connected with shaft-driven energy train complement the 4-wheel split suspension system system system inside unique kind of the Mini-Z AWD which include complete ball bearing needs and aluminum engine owner. Designed solely for rushing performance, the AWD chassis also creates superb drift driving control. As this original model is produced without circuit board, you could utilize your own private receiver-amp product and transmitter. Ideal for either 27MHz or ASF 2.4GHz products, this kit features a signature blue receiver address amongst other unique features that mark the tenth year anniversary version associated with Mini-Z. Distinctive in features and satisfaction, simply 2,000 kits will undoubtedly be released international causeing the AWD a certain addition towards MINI-Z collection.

＜SP Limited Special characteristics＞

No.MDF003GB	Blue / grey SP color framework with a greater effectiveness silver plated terminals
	Specially colored receiver cover (for ASF 2.4GHz, perhaps not offered individually)
No.MZW1	Ball bearing set
No.MDW007-01	Aluminum engine owner set
No.MDW008	Aluminum engine address
No.MDW018	Ball differential set (front)
No.MDW023	Xspeed V engine
	Multi offset wheels
	Nylon tires x 4
	Wide tires x 2

Necessary for procedure

Automobile Scale Collection human anatomy set for MA-010 (wheelbase M / L) *some human anatomy sets for MR-015 usually utilized
R/C product / MD013 2.4GHz (ASF) or MD010 27MHz+MZW3 MZ crystal set
Transmitter / KT-18 (for 2.4GHz) or other manufacturer transmitters for Mini-Z (for 27MHz)
Batteries for transmitter
4 x AAA-size batteries (alkaline or Ni-MH) for framework

Chassis Technical information

Length	127.5 mm(M)/131.5mm(L)
Width	65.0～72.0mm
Height	43.0mm
Wheelbase	90.0mm(M)/94.0mm(L)
Tread (F/R)	56.5～63.5mm / 56.5～61.0mm
Tire(F/R)	Φ25.0mm � 8.5mm / Φ25.0mm � 8.5mm, 11.0mm
Gear Ratio	7.2, 6.4, 6.0, 5.7, 4.3, 5.0, 4.5 : 1
Weight	130g (approx.)
Motor	Xspeed　V motor
