Tamiya 58463 - 1/10 RC FF03 PRO Chassis Kit - FF-03 PRO Chassis  [58463]

• the FF-03 professional, the newest touring vehicle framework kit in your line-up. The FF-03 framework features a horizontally-placed front-motor, front-wheel drive and comes improved with a range of high end parts to produce you anew driving experience. Due to its unique framework layout and FWD setup, it is possible to enjoy a way of driving various then 4WD framework products. The framework features a newly developed paid deck and includes an excellent front side gearbox. Suspension has brief reversible suspension system arms and TRF416 uprights concerning the Inboard Front Suspension(IFS) setup. True to its title "PRO", high-spec elements such as TRF dampers, aluminum turnbuckle shafts, and aluminum ball connectors may within the kit.

FF-03 PRO Chassis Kit includes the next Option components:

• Item 42102 TRF Unique Damper (tough Ebony Coating) plus Titanium Coated Piston Rods and White Coil Springs (moderate x2, difficult x2)
• Item 51000 Hi-Torque Servo Saver (Ebony)
• Item 53159 4mm Anodized Aluminum Flange Lock Nuts (Blue)
• Item 53642 5mm Aluminum Ball Connector (Blue)
• Item 54121 Aluminum Horn For Hi-Torque Servo Saver
• Item 54223 FF-03 Aluminum Motor Dish (Blue)
• Aluminum Turnbuckle Shafts (Blue)
• 5mm Adjuster (Gray)

FF-03 framework devices are appropriate numerous 1/10 R/C touring vehicle SpareBody Sets, nevertheless they are never suitable for the annotated following:

• Item 50809 Peugeot 306 Maxi WRC parts of the body Set
• Item 51223 Audi A4 DTM 2005 Lightweight Parts Of The Body Set (Finished)
• Item 51265 ADVAN Courage LC70 Mugen parts of the body Set (Finished)
• Item 51288 BMW 320si WTCC 2006 Team Germany parts of the body Set
• Item 51292 EBBRO 350R areas of the body Set
• Item 51295 BMW Z4 M Coupe Racing body parts Set
• Item 51306 Raybrig NSX 2007 body parts Set
• Item 51322 Nissan Fairlady Z Variation NISMO areas of the body Set
• Item 51357 ARTA Garaiya parts of the body Set
• Item 51359 Xanavi NISMO GT-R (R35) parts of the body Set
• Item 51395 Corolla Axio apr GT areas of the body Set
• Item 51396 BMW M3 GT2 2009 Areas Of The Body Set
• Item 51401 Lancia Delta Integrale parts of the body Set

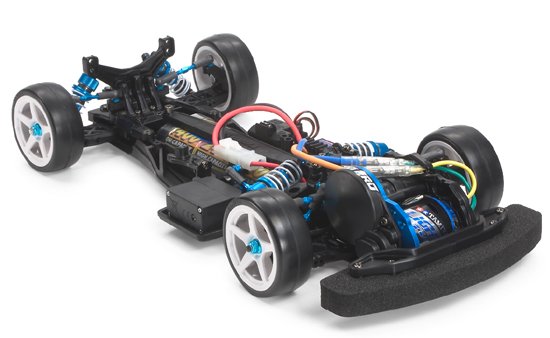

Slim framework features longitudinal battery position. R/C product is wear each side for optimized chassis security. Engine is firmly attached to blue-anodized aluminum engine dish which improves dissipation of engine temperature. The lightweight gearbox includes a large-sized ball differential. Front suspension system system features the IFS system. The damper mount comes with stabilizer holders. 3 wheelbases (257, 245, 233mm) is made by replacing back block elements.Rear dampers is set up to either component linked to suspension system system system arms.

Specs & Characteristics:

• 1/10 R/C construction model kit.
• Chassis size: 384mm, basic width: 185mm, Tread: 157mm, Wheelbase: 257, 245,233mm.
• FWD chassis features front-mounted engine which is designed for maximum fat blood circulation and a low center of gravity.
• Body, tires, ESC, motor, R/C item, battery power and charger not included.
