Tamiya 58469 - RC Ford Bronco 1973 - CC01  [58469]

Let's Go Off-Road

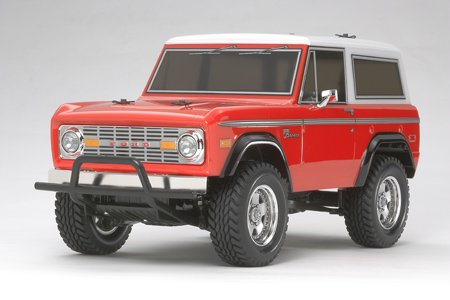

This may be a 1/10 scale R/C construction kit of Ford Bronco to create “Early Bronco” which is considerably popular as a cross-country automobile inside U.S. the primary topics this R/C vehicle may be the 1973 wagon model which include a white back target. The distinctive human body style, including raised front side bonnet edges, is realistically reproduced with polycarbonate. Individually molded metal-plated parts, which depict front grille, light covers, and component mirrors, add great scale realism. The Ford Bronco happens the shaft-driven 4WD CC-01 framework that gives enjoyable off road driving performance.

All Terrain Chassis

Exceptional ground-hugging, long-stroke suspension system is composed of front twin wishbone and straight back 4-link rigid setups which is fashioned with 4 oil dampers. Definitely dependable and efficient full-time 4WD system features a front-mounted engine, which transmits capacity to leading tires through the gearbox and also to a large component wheels through propeller shaft with universal bones. Front and back differentials permit smooth cornering. Additionally for greater off road performance on rough area, a corner differential might be locked during installation. Practical block-pattern tires are mounted on metal-plated tires.

According to the Ford Bronco

United states 4WD cars produced before 1966 had been considered big, crude products, even so the Ford Bronco that is released that 12 months broke the mold along side its lightweight design and created a dynasty. It had been available in three body types: the open-top roadster, the “sport utility” half cab, alongside wagon. The framework showcased a drivetrain from Ford F100 pick-up that matched the latest framework and suspension system system. Specially, the best suspension system system system ended up being designed with coil springs to produce both a comfy journey and superb off road ability. The original generation “Early Broncos” have been produced until 1977 and stay acutely popular as cross-country and rock-climbing automobiles right now.

Specs & Features

• Length: 422mm
• Width: 195mm
• Height: 200mm
• weight: 1480g
• Wheelbase: 242mm
• Tread (F/R): 160mm
• Tire Width/Diameter (Front & rear): 33/90mm
• Ladder Frame Bathtub Type Chassis
• Longitudinally-Placed engine Shaft-Driven Full-Time 4WD
• Front and right back 3-Bevel Differential Gears
• Front Suspension: Double Wishbone, back Suspension: 4-Link Rigid
• front side and right back CVA Oil Dampers
• Gear Ratio=1:14.67

Individually Needed Things

• Finespec broadcast Control System w/ESC
• 8xR6/AA/UM3 Batteries for Transmitter
