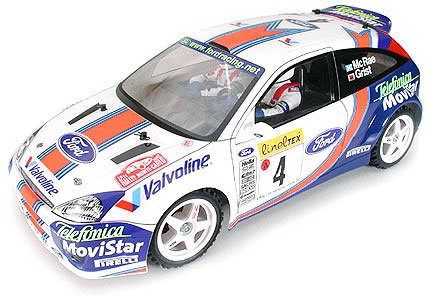

Tamiya 58281 - 1/10 RC Ford Focus RS WRC 2001 (TB-01)  [58281]

Tall Drive effectiveness TB-01 ChassisFor increased drive effectiveness the framework employs a longitudinally setup engine plus shaft drive and a total band of ball-bearings. The durable, hardened resin main and top structures are equipped with wheel dampers and split 4-wheel double wishbone suspension system system. Aluminum engine heat sink happens to be set up to finish overheating.

fundamental Requirements

• general size: 418mm
• General Width: 185mm
• General Height: 143mm
• Clearance: 24mm
• bodyweight completely prepared: 1,767g (measurement includes TP-S3003 servo, CPR product and RC2400SP Battery.)
• Wheelbase: 257mm
• Tread F/R: both 157mm
• Chassis Material: ABS
• Chassis Shape: bathtub frame
• Steering Tie Rod: 3 component
• suspension system system system: front component and straight back twin wishbone
• Caster Angle-F/R: 10deg/0deg
• Camber Angle-F/R: adjustable
• Toe Angle-F/R: adjustable/2deg
• Damper: F/R CVAMiniII
• Transmission Type: longitudinally setup motor with shaft drive 4WD
• Gear Ratio: 9.91:1 (kit standard)
• Diff. Gear System: F/R 3-bevel diff
• recommended Speed Controller: mechanical cost controller included
• Tire Width: F/R both 27mm
• Tire Diameter: F/R both 69mm
• Tread Pattern: F/R rally block

Necessary products (Available Individually)

• R/C product: Adspec GT-1 or FET 2-channel R/C device with electronic price control
• Battery: Tamiya 7.2V Racing Pack, or 7.2V Advanced Pack
