Tamiya 58480 - 1/10 RC Honda Civic Type-R R3 - TT01E JAS Motorsport  [58480]

J.A.S. Tuned Hatchback

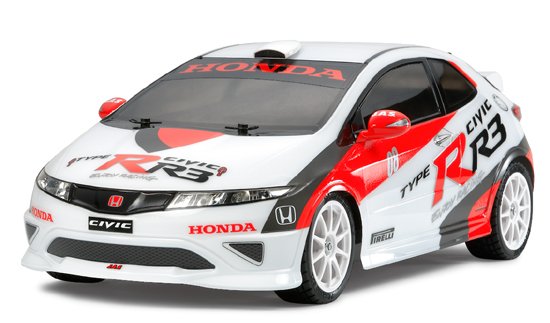

This is often a 1/10 R/C construction model kit with this Honda Civic Type-R R3 that's been made by Italian official Honda competition partner, J.A.S. Motorsport. The shape about the 3-door hatchback, which features an air-intake ahead, is realistically reproduced. The stated air-intake, component mirrors, and rear spoiler are reproduced with split components to really make the model with a sharper existence. LEDs are positioned up inside front part & rear metal-plated light circumstances to depict mind (white) and end (red) lights. The kit includes a sticker sheet to faithfully replicate the red and dark grey livery and also the Type-R logos.

Evolved Chassis

The bathtub framework regarding the developed shaft-driven 4WD TT-01 Type-E has its motor and battery power near the ground for reduced center of gravity and optimum stability. Connected to the tub framework are a fiberglass reinforced nylon top deck and gear covers which improve rigidity, plus a 3-piece tie pole to generate smooth steering action. The paid down center of gravity, great balanced design, 4 wheel dual wishbone suspension system system system system, and front and rear differential gears all relationship to bring about superb driving faculties. Additionally, rushing radial tires with practical tread pattern are installed on 10-spoke tires.

Specs & Features

• Length: 423mm,
• Width: 188mm,
• Height: 140mm
• Wheelbase: 257mm
• Tire Width/Diameter (Front & straight back): 27/67mm
• tub Type Chassis Frame
• Longitudinally-Placed Motor Shaft-Driven Full-Time 4WD
• 3-Bevel Differential Gears
• 3-Piece Steering Tie-Rod
• 4-Wheel Double Wishbone Suspension
• Front & back Friction Dampers
• Gear Ratio=8.35:1
• Type 540 Motor
• Needs electronic speed controller (offered separately)
• a number of choice elements are so as you are able to further change your device:
  Item 53694 TT-01 Front Stabilizer Set
  Item 53695 TT-01 straight back Stabilizer Set
  Item 53800 Aluminum Toe-In Backside Uprights
  Item 53664 Aluminum motor Heat Sink
  Item 53448 4mm tough Lock-Nut & Spacer Set
