Tamiya 84339 - 1/10 RC TB-04 PRO Chassis Kit TB04  [84339]

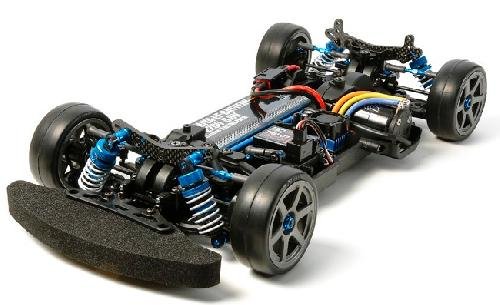

• The TB-04 PRO framework is the successor on TB-03 chassis, and this also competition circuit framework inherits its efficient shaft-driven 4WD system with a newly developed, horizontally-positioned motor positioning design. The framework features many newly-designed components and will be offering selection of price and management that R/C racers will definitely enjoy.
• The TB-04 shares comparable double wishbone, separate suspension system system elements seen concerning the TB-03, TA-05 variation II and TRF 416/417 collection of proven framework designs.

Specification:

• Scale : 1/10
• Construction sort : construction kit
• Terrain use : on-road
• Drive-train : 4WD
• Drive kind : shaft
• Drive line : dog bone
• Differential kind : gear
• Suspension : completely independent twin wishbone
• Steering device : bell-crank
• Shock damper : oil-filled damper
• Shock damper product : aluminum
• Tire type : not included
• Tire tread : n/a
• Body item : perhaps not included
• Chassis item : plastic
• Electronic Speed Control (ESC) : perhaps not included
• ESC model : n/a
• LED Light buckets : no
• LED lights : no
• Motor : perhaps not included
• Bearings : shielded ball bearing
• Adjustable camber : yes
• Adjustable toe views : front side and rear
• Adjustable ground approval : yes
• Adjustable gear ratio : yes
• Adjustable wheelbase : yes
• Adjustable track width : yes
• Adjustable surprise angle : yes
• Special function 1 : Low center of gravity design
• Special function 2 : Newly-designed transmission instance helps you to provide increased protection during acceleration
• Special feature 3 : brand-new differential gear features 40T musical organization gears and 16T bevel gears
• Special function 4 : Uses an extended steering tie-rod system refined into the TRF417 framework.
• Special function 5 : Newly-designed battery pack owner provides quick and easy safe attachment
• Special function 6 : Racers can pick from inboard and outboard front suspension system system system.
• Special function 7 : Features a new motor guard to shield the motor in results.
• Special function 8 : Employs fast oil dampers for touring cars enable paid down ground approval, while maintaining stroke
• Requires A : 2-channel radio gear & electronic cost control
• Requires B : 7.2 battery power & charger
• Requires C : polycarbonate paint
• Requires D : tires, tires, body set, motor, esc
