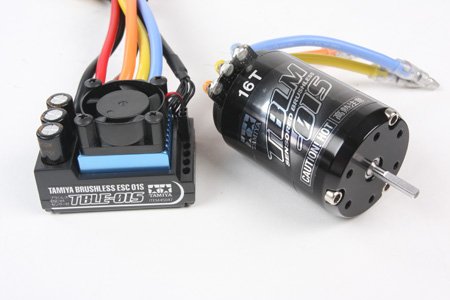

Tamiya 45049 - RC Tamiya Brushless Motor 01 - 16T Brushless ESC01 Sensored  [45049]

About Sensored Brushless Motors

Sensored brushless devices offer smooth procedure at both low and high prices. The sensor's positional feedback is with the ESC's RPM information to provide a high level of control. Brushless design produces long motor life and paid down upkeep hassle.

*Not suitable for cars, CR-01 and twin-motor framework devices.

*To enhance performance together with life about the engine, frequently lubricate motor bearings with Item 53508 or 53782.

18T Specification

KV: 2100KV (KV denotes RPM per volt), bodyweight: 200g, Input Voltage: 6.6-7.2V.

With regards to the Sensored Brushless ESC

This ESC is incredibly designed for use due to the TBLM-01S range Tamiya Brushless Motors (Sensored). And 5 preset pages,settings specially stopping system, fundamental stopping system, and deadband is modified individually. Additionally features 3 safety systems including overheating, overloading, and low voltage.

ESC Specification

• Appropriate Tamiya, KO, Futaba, JR, and SANWA receivers.
• Features Ahead, Reverse, and Brake functions. *Reverse function could be ended.
• ESC also features Overheat, Overload, and minimal Voltage security systems-Compatible with Tamiya TBLM-01S Series engines. *Only to be used with sensored brushless machines.
• Max. Constant present: 100A, Receiver Voltage: 5V, Receiver Active: 3A, Drive Frequency: 16KHz.
• Proportions: 47x35.5x31mm, Weight: 90g (Including cables).
