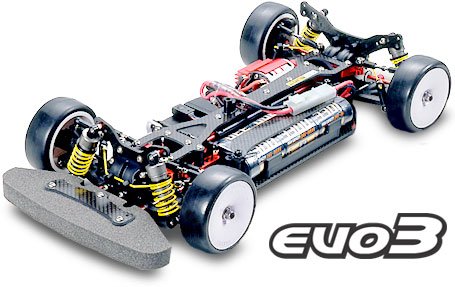

Tamiya 49283 - 1/10 RC TB Evo.3 Surikarn Ltd. - Limited Edition - TB Evolution III Chassis  [49283]

Tamiya is proud to supply the TB Evolution III that permitted Surikarn Chaidejsuriya to simply take the triumph both in Modified Class along with stock Class through the Thailand Overseas Touring automobile Championship that happened last February. This limited version kit is released to celebrate these great victories and supply champion system performance. TB Evolution III Surikarn Limited framework employs many particularly developed components and option elements. A pure racer exclusively for you! Once the greatest level of R/C framework development gets with all the choice and particularly created elements utilized by the greatest R/C racer on the planet, the end result is absolutely nothing below quality. It features a 3mm thick reduced deck (Standard Evo. III features 2.5mm thick reduced deck) to create a reduced center of gravity (paid down stability). Red anodized components raise the machine's "hot" seems.

Presenting Surikarn Style

• Red anodized aluminum elements
• Titan hex screws and titan turnbuckle shafts
• Rubber sealed ball bearings
• 3 mm thick reduced deck
• strengthened diff. joint with back lightweight universal shafts
• SOREX tires (36R)
• Newly created aluminum top supply mount
• Newly designed front/rear unique damper stay
• Newly produced carbon dish for one-way product
• Evo III unique stickers
• a whole new packaging

fundamental specs

• Total size: 365mm
• Total width: 190mm
• Clearance: 5mm, body weight Fully-Equipped: 1,440g (dimension includes TP-S3003 servo, CPR device and RC2400SP Battery with RS-540 motor)
• Wheelbase: 259mm
• Tread F/R: 163mm
• Chassis Material: Carbon
• Chassis Shape: Double-Deck Frame
• Steering Tie Rod: 3 component
• suspension system: Front and back Double Wishbone
• Caster Angle-F/R: 4deg/0deg
• Camber Angle-F/R: adjustable
• Toe Angle-F/R: adjustable/2 to 3.5deg
• Skid angle-F/R: both 0deg (adjustable)
• Damper: F/R TRF Super Minimal Friction Dampers
• Drive train: Shaft-Driven 4WD
• Gear Ratio: 7.34:1, 6.88:1 (Standard in kit)
• Diff. gear system: F/R One-Way/Ball-Diff
• Speed Controller: Electronic Speed Controller
• Tire Width: F/R both 24mm
• Tire Diameter: F/R both 64mm
• Tread Pattern: F/R Slicks.

Required items (not included)

• Body
• RS-540 Type engine
• R/C unit: Adspec GT-I or 2-channel R/C system with electronic cost controler
• Battery: Tamiya 7.2V Racing Pack or comparable
