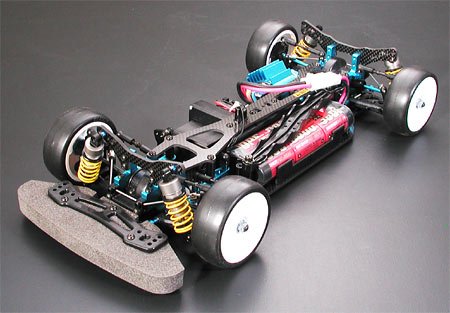

Presenting the 4th variation associated with high end TB Evolution R/C rushing car. The TB Evo IV is clearly developed predicated on rushing performance of TB Evo III and motorist feedback, causing a framework featuring your whole advantages of many up-to-date R/C rushing technology including newly developed aluminum bulkhead, a sealed bevel gear cover to safeguards gears from dirt and stones on a patio circuit and a more durable bevel gear developed from a certain carbon based item. The model could be designed with 2.5mm dense paid down and 2mm dense top carbon structures.
About the TB Evolution IV
- Newly created aluminum bulkhead to firmly secure drive train while increasing gear performance.
- A sealed bevel gear target protects gears from dirt and rocks on a backyard circuit.
- Features a durable bevel gear developed from a unique carbon based product.
- Aluminum propeller shaft is in fact created as a 3-piece shaft, reducing rate loss as a result of friction during framework roll.
- Suspension system is totally upgraded for improved cornering with new lightweight and much more compact suspension system supply, hub provider and front/rear upright.
- Increased damper attachment settings for effortless damper modification, permitting damper to suit your driving design.
- Kit includes medium narrow race slick tires.
- Motor and body not included
The Reedy Touring vehicle Race winning TB Evolution IV is now available! The shaft driven 4WD TB Evolution rushing framework just keeps boosting, developing fresh requirements inside the R/C world. Based on information removed from genuine competition performances by Tamiya's factory group, Tamiya Racing Factory (TRF), vital elements are redesigned to make you the top higher end racing framework. The main concept behind the TB Evolution IV should enhance drive train efficiency and minimize fat throughout the suspension system system. Drive train effectiveness is crucial for competition, especially in stock program and 19 change spec groups. The outcome is a fine-tuned superior framework that is the ultimate tool for each and every expert motorist.
Solid Chassis Design For solid Chassis Design, both 2.5mm lower deck and 2.0mm top deck were produced from Carbon Fiber Reinforced Polymer (CFRP). To help expand reinforce the framework frame the TB Evo IV also contains aluminum front component and straight back bulkheads, enabling you to get the complete top features of the enhanced drive train. These bulkheads furthermore assist fast access toward differentials for effortless maintenance. Kit furthermore includes 2 types of hub providers available, allowing assortment of a 2� or 4� caster angle.
3-Piece Propeller Shaft A new 3-piece lightweight aluminum propeller shaft decreases friction due to chassis roll. Combined with front side one-way bearing, speed destroyed when not accelerating in addition has been paid enhancing long-distance performance. Blue anodized aluminum motor heat sink considerably improves heat dissipation minimizing the inside aftereffects of an overheated engine.
Option Loaded right back Suspension Utilizing the standard suspension system system system mount, back toe-angle is planned at 3�, but with the addition of Tamiya's up-grade suspension system mount (offered individually) it is possible to raise the collection of 6 toe-angle settings including 0.5-3�. To obtain more accurate damper settings, standard front side component and backside paid arms is reversed increasing damper pivot alternatives to a complete of 5 functions.
choice Parts to own Optimum effectiveness
| Item No. | Product Title |
| 49345 | TB Evolution IV Titanium Screw Set (limited release) |
| 53709 | Fluorine Coated Suspension Ball (8 pcs.) |
| 53712 | TB Evolution IV Suspension Mount X (Blue) |
| 53713 | TB Evolution IV Suspension Mount A (Blue) |
| 53714 | TB Evolution IV Suspension Mount B (Blue) |
| 53715 | TB Evolution IV Suspension Mount C (Blue) |
| 53716 | TB Evolution IV Suspension Mount D (Blue) |
| 53717 | TB Evolution IV Suspension Mount E (Blue) |
| 53718 | TB Evolution IV Titanium Wheel Axle |
| 53719 | TB Evolution IV Lightweight Propeller Joint Shaft (F) |
| 53720 | TB Evolution IV Lightweight Propeller Joint Shaft (R) |
| 53721 | TB Evolution IV Aluminum One-Way Ring Gear |
| 53722 | TB Evolution IV Stabilizer Rod Set |
| 53723 | TB Evolution IV Aluminum Servo Mount (Blue) |
| 53724 | TB Evolution IV 46mm Lightweight Swing Shaft |
| 53726 | Dia. 6mm Shim Set (3 types / 10pcs. Each) |
Basic Specifications
- General length: 366mm
- Total width: 189mm
- Clearance: 5mm
- Weight Fully-Equipped: 1,440g (dimension includes TP-S3003 servo, TRF2002 ESC, RC-3600HV Battery and Super Stock Type-T engine)
- Wheelbase: 257mm
- Tread: 163mm (Front & right back)
- Chassis Material: CFRP
- Chassis Shape: Double-Deck Frame
- Steering Tie Rod: 3 component
- Suspension: Double Wishbone (F&R)
- Caster Angle: 4� (F) / 0� (R)
- Camber Angle: Adjustable (F&R)
- Toe Angle: Adjustable (F) / 2-3.5� (R)
- Skid Angle: 0� (F&R)
- Damper: TRF Super Low Friction Dampers (F&R)
- Drive train: Shaft Driven Regular 4WD
- Gear Ratio: 6.48:1, 6.07:1 (standard)
- Diff. gear system: One-Way (F) / Ball-Diff (R)
- Speed Controller: Electronic Speed Controller
- Tire Width: 24mm (F&R)
- Tire Diameter: 64mm (F&R)
- Tread Pattern: Slicks (F&R)
Necessary products (Available independently)
- Body
- RS-540 Type motor
- R/C item: Adspec GT-I or 2-channel R/C system with electronic rate control
- Battery: Tamiya 7.2V Racing Pack or comparable
