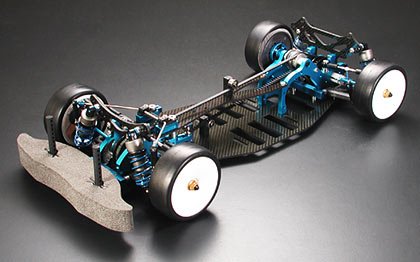

Tamiya 49225 - 1/10 R/C TRF414M CHASSIS KIT / Limited Rel  [49225]

About 1/10 Electric R/C TRF414 Chassis Kit/Limited launch Item

focused on success in touring car competition, the Tamiya Racing Factory (TRF) experimentally released final summer season Tamiya's first pure competition framework, the model TRF414X (restricted to the U.S. as a test project). It showcased a mid-ship motor, gear drive 4WD, carbon graphite double-deck framework, dual wishbone suspension system system system, and plenty of various other race-oriented elements. Considering that the TRF414X finished up being unlike other previous Tamiya framework, different little customizations on framework geometry must be made. The TRF414X ended up being tested and re-tested at every period of development, essentially causing impressive competition causes both Japan as well as the United States. Utilizing performance information and observation the races, TRF further honed this currently superb framework. Now, Tamiya is proud presenting its most useful pure competition framework so far, the TRF414. Some in regards to the primary improvements within the TRF414X consist of: modified suspension system system geometry for paid down center of gravity; resin suspension system hands, uprights, and knuckle hands for fat financial savings (formerly aluminum); resin elements made from stronger item; front part and center twin one-way drive to get more efficient cornering; newly created anodized environment wheel; TRF logo and serial volume dish for limited release formal official certification; kit also includes 1g of advanced anti-wear oil. The TRF414 framework kit guarantees a bright fresh millennium of touring automobile victories for Tamiya and so the TRF.

After many months of experimentation on TRF414 framework kit and a considerable number of battle involvement, the TRF designers are proud to generate away a larger as a type of the framework, the TRF414M framework kit. The improvements focused primarily on heightening the effectiveness associated with the drive train and increasing the cornering cost. The TRF414M Chassis Kit will provide competitive RC racers exactly what they need to win on today's track.

Specs:

• Wheelbase: 260mm (variable), general width: 189mm (varies based on tires utilized), framework fat: 780g.
• Suspension geometry optimized predicated on competition feedback of TRF414 framework. Using suspension system system supply spacer, tires is modified within 5mm range for exact settings.
• Aluminum bulkheads sit low for a standard low center of gravity. Motor dish additionally supports heat dispersion.
• Front and center pulleys follow one-way drive train. Straight back adopts ball diff. kind part-time 4WD system.
• Newly created suspension system system mount and carbon shock tower lowers roll center for smooth and stable cornering.
• 4 degree caster angle on front part hub provider sharpens steering effect. Torque-rods reliably protect angle.
• Toe-in angle from 2-2.5 quantities can be plumped for by adjusting straight back suspension system system system block and rear upright.
• Front one-way and right back ball diff. are suited to TA04.
• SOREX medium narrow tires and specifically developed dish tires are included.
• TRF Suspension Dampers (x4) included.
• Three kinds of front component and right back stabilizers included.
• 112T, 120T, and 128T 04 module gears included. Pinion gear of 40T included.
• Includes unique stickers for TRF414M
• TRF414M is probably not within Tamiya Grand Prix

  individually needed things:

• span>RC System
• Adspec GT-I or 2-channel RC system with electronic price control
• Wheels, Tires (free): Offset 0mm, moderate slim size
• engine: Any 540-type motor
• Battery: Tamiya 7.2V Racing Pack or equivalent. Separate-type batteries increases.
• Body: Any human body with wheelbase over 257mm and fundamental width over 190mm. Numbers regarding the identical program as Tamiya's "Ferrari 360 Modena Challenge" will fit. Some modification to human anatomy mount holes can be required.
