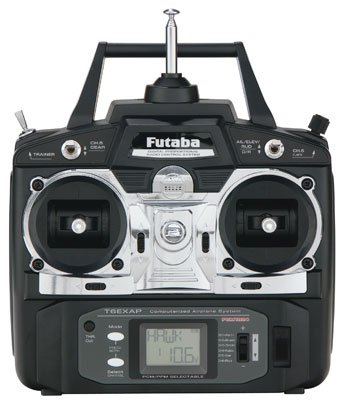

Futaba 6EXAP 6-Channel FM 40MHz/ R136F/ 4xS3003  [6EXAP_C1]

CHARACTERISTICS:

• Aileron, Elevator and Rudder double cost switch - employ this modification to flip between two aileron, elevator and rudder control throw settings. The tosses could be arranged but choose, but most of the time, whenever switch is up the throws are greater (higher-level) the minute the switch is down the throws are less (great deal). This switch additionally flips between exponential costs (if used).
• Flap control dial/Channel 6 - This dial operates the servo connected with channel 6 within the receiver when your model has flaps here is the control accustomed run them.Aileron/elevator control stick -Mounting point for optional throat strap.
• Trim levers (all) -Used to move the fundamental or center host every servo as labeled inside diagram.
• Asking jack - Port for billing the transmitter batteries using the included battery power charger.
• On-off switch
• DATA INPUT lever - accustomed replace the values applying this different functions exhibited regarding LCD display.
• Liquid-crystal display (LCD) - shows development modes and values joined.
• MODE key - often scroll through and show the ten or eleven(PCM) different functions.
• SELECT key - frequently expose the values the current function.
• Throttle-cut switch - to work with the throttle-cut function, lower the throttle stick entirely, then drive the throttle-cut key to completely shut the carburetor and shut the motor.
• Throttle/rudder control stick - operates the servos attached to channel 3 (throttle) and channel 4 (rudder) into the receiver.
• Trainer switch - operates the trainer functions. To exert effort as a trainer switch the transmitter should really be connected with another transmitter via. a trainer cable (available separately).
• Retractable landing gear switch/Channel 5 - modification operates the servo linked to channel 5 in to the receiver in the event that model has retractable landing gear this may be the control accustomed expand and retract the gear.
• Antenna - Radiates signals towards the receiver. Never ever travel a model without totally expanding the antenna or maybe you are going to create disturbance to many other modelers and decrease functional indication choice of the transmitter. The antenna might be removed and changed with another whenever it really is accidentally broken.

INCLUDES:

• Futaba 6-Channel 6EXAP transmitter
• Futaba R136F Receiver
• Four Futaba S3003 Servo
• Change Harness
• Handbook

SPECS:

Transmitter

• T6EXAP Transmitter with programmable mixing and 6-model memory.
• Transmitting on 40 / 72 MHz musical company.
• Os: 2-stick, 6-channel system
• Modulation: FM(PPM) and PCM
• Power supply: 9.6V NT8S600B Ni-Cd battery power or 12V alkaline battery pack
• Current drain: 250mA

Receiver

• R136F slim musical company, FM 6 channel receiver.
• Getting on 40 / 72 MHz musical organization.
• Type: FM, Dual conversion/FM, Solitary transformation
• Intermediate frequencies: 455kHz, 10.7MHz/455kHz
• Power requirement: 4.8V or 6V
• Present drain: 9.5mA @ 4.8V
• Size: 1.31 x 1.98 x 0.71" (33.4 x 50.3 x 18.1mm)
• fat 0.98oz (27.8g)

Servo

• S3003 standard servo with mounting gear and servo supply assortment
• Control system: Pulse width control,1.52ms neutral
• Power requirement: 4.8 or 6V (from receiver)
• Production torque: 44.4oz-in [3.2kg-cm] @4.8V
• Running rate: 0.23sec/[email protected]
• Size: 1.59x0.78x1.41" [40.4x19.8x36mm]
• Body fat: 1.3oz (38.0g)
