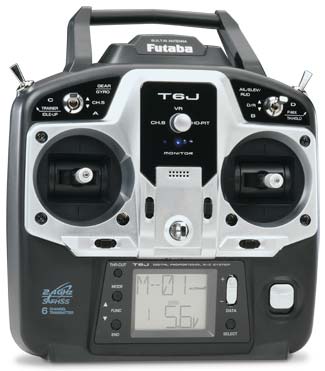

Futaba 6JH 6-Channel 2.4GHz S-FHSS Heli/4 S3001 Servos  [6JH_01]

Blazing Speed. Red-hot Value

In S-FHSS mode, the 6J’s framework rates is 6.8ms, an answer cost unrivaled by any 6-channel journey system. Nevertheless the 6J isn’t more or less speed; it’s as well as the most readily useful values you’ll find anywhere.

It’s a simple and natural intensify from a 4-channel system. Along with in example you currently get a 6-channel, it’s an excellent investment with a range of high-end features that goes far beyond what you may’d expect. Start out with 15-model memory. Throttle and pitch curves for airplanes additionally helis. Electronic swash band for helis, also four swashplate choices.

Combined with blazing price, absolute affordability and unequaled value, the 6J now provides the rock-solid security and dependability of Futaba FHSS technology.

The R2006GS auto-adapts towards the transmission mode plumped for, whether it’s FHSS or high-speed S-FHSS mode. And as it operates on many voltage, you don’t need a regulator even if you use a 2S, 7.4V LiPo pack as an electric supply.

Permit me to share are just a number of the features that create the 6J one of many better journey system values around!

• The 6J faceplate seems neat and uncrowded, yet sets sticks, the development secrets even though the rotary knob within effortless reach. An essential antenna prevents breakage and harm.
• Angled for a greater, easier hold, and balanced for effortless neck strap use, the 6J’s example also features an easy, flat base rendering it remain sturdily in the event that you set it along. Other features include a charging jack separately and a square micro-port for a trainer cable in regards to the backplate.
• A huge 40 x 30 LCD offers more details and easier viewing immediately. You'll see model title, amount and kind, voltage, modulation (and much more) on household display; push SELECT due to this comprehend timer!
• If you scroll by the big event you want, no issue; you can navigate through menus ahead and backward due to the identical simpleness.
• the majority of this 6J’s combining functions might assigned toward switch you adore, to be able to adjust the control setup towards form of traveling.
• The 6J’s rotary knob can be used for a totally proportional 6th channel, fine-tuning hover-pitch or scale flaps. It is going to keep space for another programmable mix you'll be able to trigger because of the flip regarding the switch.

System features:

• 15-model memory
• 4-character model naming
• Simple 1-lever/3-button development
• Data reset
• Airplane & heli computer software
• FHSS/S-FHSS modes
• Mode 1-4 selectable
• 127-segment, 40 x 40 LCD
• Digital trims/trim memory
• Endpoint modification (EPA), sub-trims & servo reversing
• Dual costs & exponential (ail/ele/rud)
• Fail-safe (all organizations; in S-FHSS mode only)
• Throttle cut
• Trainer system (cable needed)
• Throttle destination, mix & low battery pack warnings
• Up/down & model timer
• Number check mode
• R2006GS S-FHSS Receiver

Heli faculties:

• (2) 5-point throttle curves
• (3) 5-point pitch curves
• Throttle hold
• Hover pitch
• Gyro mixing
• Revo mixing
• 4 swash dish kinds (H1, H3, HR3 & H3 w/AFR)
• Swash AFR (ail/ele/pitch)
• Throttle mix
• Electronic swash band
• Throttle delay
• Pitch wait

Needs:

• 4 “AA” cells

Transmitter demands:

• Type: 2-stick, 6-channel, FHSS/S-FHSS selectable
• Present Drain: 170mA

Receiver requirements:

• R2006GS 2.4GHz S-FHSS 6-Channel Receiver
• Type: Full-range journey receiver
• Modes: FHSS or S-FHSS
• traits: Easy-Link™ binding, high-voltage procedure, frequency-hopping, spread-spectrum design & dual Antenna variety
• Voltage Input: 4.8V-7.4V
• Appropriate Batteries: NiCd, NiMH, LiPo, LiIon & Lifetime
• Proportions: 1-11/16 x 15/16 x 516 in (43 x 24 x 7.9 mm)
• bodyweight: 0.29 oz (8.3 g)
• Present Drain: 80mA (@ no indicator)
• inventory #: FUTL7606
