Futaba 8UAP 8-Channel PCM 40MHz/ R149DP/ 3xS3001  [8UAP_C1]

8UAP Series radios are filled up with the advanced functions pilots want in an 8-channel system. These higher level, completely programmable systems are well suited for the pattern flier or competitive pilot who would such as the modern in radio technology.

QUALITIES:

• Individualized features for airplanes
• 8-channel radio system with PPM or PCM 1024 modulation
• Readable, larger LCD display with 6 edit approaches for easier development
• Digital trims with audible indicator at fundamental enables in-flight trim alterations
• 8-model memory can use CAMPac choice for around 16 model settings
• Programmable trainer function
• Model content for duplicating settings without reprogramming
• Direct servo control for pre-flight evaluation and adjustments (with purchase of optional DSC cable and R149DP receiver)
• Trip timer

Model Functions:

• Stores models' names just as much as six figures
• 60-minute stopwatch function
• Motor cut
• All-channel servo reversing, all-channel fail-safe with PCM versions
• Selectable trim rate

Acro-Mix Functions:

• Adjustable exponential, specific part
• Elevator to flap mix
• Aileron to rudder mix
• Air brake
• Snaproll with security mode
• Aileron differential
• Flapperon
• Flap trim price
• Elevon
• V-tail
• Sub-trim 1-8
• Trim memory

INCLUDES:

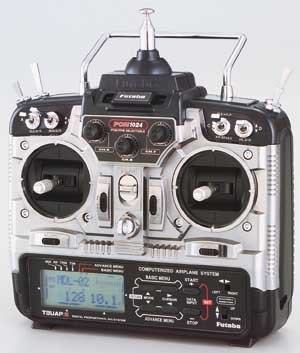

• 8UA Transmitter, including RF module
• Four S3001 Servo, with mounting gear and servo supply assortment
• R149DP Receiver
• Switch harness
• Aileron expansion cable
• Instructions

SPECS:

Transmitter:

• Operating-system: 2-stick, 8 those sites, PCM1024 system
• Transmitting regularity: 40 MHz bands
• Modulation: FM/PPM or PCM, switchable
• Power supply: 9.6V NT8S600B Ni-Cd battery
• Current drain: 250 mA

Receiver:

• Narrow Band: 20KHz
• Intermediate Frequency- 1st IF: 10.7MHz
• 2nd IF: 455kHz
• Energy needs: 4.8 to 6.0V (distributed to servos)
• Current Drain: 15mA
• Size: 2.16" x 1.27" x 0.82" (55.0 x 32.0 x 21.0mm)
• Body fat: 1.2oz (36g)

Servo:

• Control system: Pulse width control, 1.52 ms neutral
• Power requirement: 4.8V (from receiver)
• Output torque: 41.7 oz-in (3.0 kg-cm)
• Running price: 0.22 sec/60X
• Size: 1.59 x 0.78 x 1.41 (40.4 x 19.8 x 36 mm)
• body weight: 1.59 oz (45.1g)
