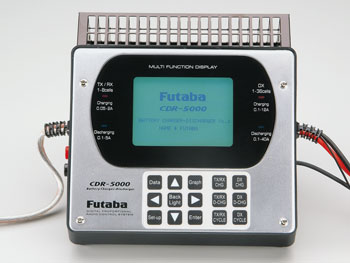

Futaba (#CDR 5000) - Futaba higher end Battery Charger/Discharger CDR-5000
This is the Futaba supreme quality Battery Charger and Discharger.
Linear present charger with higher-level top detection and automated cutoff circuit.
Only for Ni-Cd and Ni-Mh Battery
**Do not use with Lithium Polymer (LiPo) electric batteries packages**
FEATURES:
expenses, discharges (see COMMENTS), and rounds 1-8 cell NiCd and NiMH transmitter and receiver packages
costs, discharges and rounds 1-36 mobile NiCd and NiMH car packs
All recharging information including real-time graph plotting is shown on big backlit LCD display for touch-free procedure after setup
Bar graphs show the conventional voltage and peak voltage of each and every mobile inside the recharging mode, additionally shows normal voltage of every mobile towards the discharging mode
Auto cut-off might be programmed for delta peaking, mAh, as well as heat settings
Reverse polarity and overload protection
One year limited warranty
INCLUDES:
One Futaba supreme quality Battery Charger and Discharger with Tx and RX expense adapters, charger stand, input cable with alligator videos, thermo sensor cable, production videos for motor battery, terminal harness and illustrated instruction manual
REQUIRES: DC power supply 12-16V
SPECS: Length: 6.7" (170mm)
Width: 6.7" (170mm)
Height: 3.3" (83mm)
fat: 2.6lbs (1200g)
dimension: I/O Voltage, production active, Peak-Voltage, Average-
Voltage, 3-Division typical Voltage, Internal Resistance, Capacity,
Time, vitality, Matched degree, Temperature, Humidity
Input: 11-16V DC minimal 40Ah (power voltage power-off @10V)
Charging present: DX: 0.1A-12A
TX & RX: 0.05A-2A
Discharging current: DX: 0.1A-40A
TX & RX: 0.1A-5A
Battery Range: DX: 1-36 cells/50mAh-9999mAh
TX & RX: 1-8 cells/50mAh-2500mAh
Cut Off: Delta Peak and Zero Delta V, Temperature, ability, maximum- Voltage
Display: Graphic 192x128 LCD with Backlight
Safety Device: Overload, Reverse Polarity Protected and 5 Cooling Fans
REMARKS: SIGNIFICANT! If transmitter is diode protected, electric batteries needs to be utilized not even close to transmitter so that you can discharge it.
Usually will not relate with 12V car battery whilst its installed in car. The battery pack could totally discharge causeing the not practical to start vehicle. Prepare a stand alone 12V battery power to be utilized with applying this charger should you not utilizing DC power supply.
