XRAY 350009 XB8  [XR-350009]

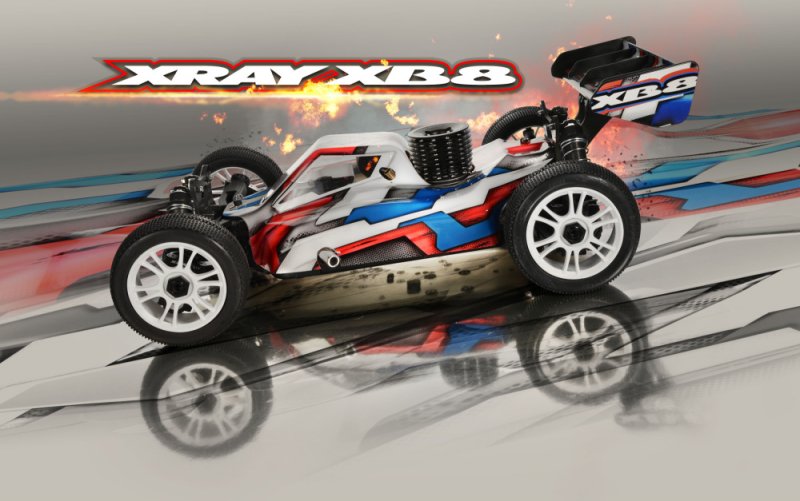

XRAY XB8

All-new 2018

• All-new framework with a rise of space between front tires and part guards, fresh jobs for rear brace for improved framework flex characteristics and chamfered front sides at a lowered expense dust pick-up

• All-new framework design is really completely appropriate between XB8 & XB8E platforms

• All-new 40per cent lighter wing mount with super low CG adequate foundation for considerably less fat behind a large part suspension system system notably improves managing traits connected with car and featuring all-new construction permits more flex furthermore features unique more optimized wing mounting positions

• All-new straight back brace between wing mount and straight back framework brace prevents back gearbox breakage during results too moves the transfer of capacity to various the key chassis

• All-new fat transfer from wing on center of vehicle with reduced stress in back diff bulkhead

• All-new straight back human body holder

• All-new back surprise tower features two lines of surprise absorber mounting functions although the updated design allows to fit groundbreaking wing mount and gearbox brace

• All-new harder back paid off hands for increased part protection and improved durability in hot conditions

• All-new better & strengthened steering ball bones for increased reliability

• All-new composite graphite shims between steering ball and nut guarantees free procedure of pivot balls in extreme dusty conditions

• All-new enhanced diff O-rings to obtain extra exact differential sealing

• All-new softer surprise membranes for improved shock performance in bumpy conditions

• Rear CVD drive shafts for increased right back traction

• New 2.6mm rear sway bar for increased traction

• All-new exhaust mounting cable with improved fit

• All-new more powerful head screws for diff bulkheads for considerably more reliable

• High-speed body for improved maneuvering on high-speed tracks & with extra rotation in tight corners

Chassis

• CNC-machined framework created from 3mm top-quality Swiss 7075 T6 aluminum
• Strategic machining for ultra-light fat and uncompromised power & rigidity
• XRAY Multi-Flex Technology
• Chassis design completely appropriate between XB8 & XB8E platforms
• Engine parallel with framework centerline, center diff placement for straight-line main drive shafts
• Countersunk screw holes on framework base for smooth underside
• Chamfered front edges into the framework for less dust pick-up
• Pre-drilled holes for additional balancing weights
• Pre-drilled centerline holes to be used with HUDY Chassis Balancing Tool
• 1-piece gadgets construction is compact and simple to remove
• Side guards for better protection and enhanced traction
• Chassis braces for increased flex, better traction, and eradication of vibration from suspension
• Rear brace between wing mount and back framework brace stops back gearbox breakage during effects and moves the transfer of capacity to different element of the chassis
• Large, easy-access, molded radio box
• Super strong diff bulkheads
• Strong brain screws for diff bulkheads for better dependability
• Composite top deck with optimized flex which results in increased traction and enhanced steering characteristics.
• Connecting website link between throttle servo and radio package, for eradication of vibrations to chassis and a lot more accurate throttle & stopping system control.
• Premium Swiss 7075 T6 shock towers.
• Rear shock tower features two lines of shock absorber mounting functions

Motor & Clutch

• High-grade, CNC-machined extensive aluminum engine mounts for greater reinforcement with this specific framework in the longitudinal means, minmise framework bending after jumps
• High-torque clutch for smooth and constant energy transfer at high RPM
• Swiss 7075 T6 aluminum flywheel has a small diameter, increased fat for smoother and several other products balanced motor operation
• Hard Swiss 7075 T6 aluminum clutch footwear enable smoother engagement
• Extra-tough Hudy Spring Steel™ flywheel nut
• Smooth-flowing, efficient 2-part environment filter
• Extra-strong vehicle's gas tank produced from unique composite combination features a floating stone filter and interior baffles to be sure constant gasoline supply
• Fuel tank mounting with synthetic grommets to just take vibration

Brakes

• Well-proven, high-performance braking system for strong, exact and dependable stopping performance.
• Laser-cut, precision flat-ground steel braking system disk is hand-ground for genuine, wobble-free rotation
• Special high-grip stopping system pads setup on laser-cut stopping system plates
• Rigid, high-precision machined brake cam articles

Drivetrain

• Conventional shaft-driven 4WD down road drivetrain
• Large quantity front & backside gear differential with adjustable oil viscosity featuring 46T top gears and 14T pinion gears
• Large amount main differential with adjustable oil viscosity featuring big 46T spur gear with standard 13T motor clutchbell
• Front universal drive shafts offer less resistance appropriate ahead at optimum steering angle.
• Rear CVD drive shafts for optimum right back traction
• Front & back primary CVD drive shafts
• All drive shafts produced from HUDY Spring Steel™
• Central big & strong outdrives work protective plastic footwear, dense 3mm pins, and a protective locking ring
• Ultra-lightweight 17mm wheel hex drive hubs CNC-machined from Swiss 7075 T6 black-coated aluminum
• Full set of 24 high-speed, greased, blue-sealed ball-bearings verify optimum effectiveness

Differentials

• Large volume high precision front part, primary, and right back gear differentials Rubber-sealed composite differential housings with strengthened inside diff gears with a rise of teeth and improved enamel profiles
• Differential inside gears produced from pushed metal, heat addressed, and machined for ultra‑high accuracy and smooth operation
• Super-lightweight diff outdrives machined from HUDY Spring Steel™
• Easy utilization of center differential
• Center diff housing is sized to aid optional spur gears
• Differential main gears crafted from HUDY Gear metal

Suspension

• Longer straight back hands result in the auto more straightforward to drive in many track conditions
• Harder straight back reduced arms increase component safety and improves durability in hot conditions
• Pivot ball suspension system concept to give up binding in dusty conditions, while ensuring stable journey height in almost every traction conditions
• Ultra-robust pivot ball suspension system with integral suspension system system geometry modification; various kingpin meals being the precise only optionally-available tuning parts
• Integrated Suspension Settings™ (I.S.S.) for fast & simple suspension system system system geometry setting
• Suspension fingers with optimal size, thickness, freedom, geometry of suspension system system system points, and product faculties.
• Suspension hands may be the results of substantial design knowledge and exhaustive testing
• Exclusive composite mixtures developed in-house by XRAY provide you with the perfect balance between dependability and gratification, rigid sufficient to supply a responsive feel yet soft enough to endure extra-long main occasions and impact
• Extra-strong & robust front side top arms look after pivot ball suspension system system.
• Front top pivot balls are alongside steel threaded part for optimum energy; aluminum ball is machined from premium Swiss 7075 T6 and of course hardcoated for longer lifespan
• 2-pivot ball, super-lightweight composite steering obstructs
• Trailing-axle steering obstructs provide a great control enhancement in almost every track conditions, making the automobile safer to drive and providing increased ahead traction
• Turnbuckles produced from unique mix of HUDY Spring Steel™ particularly developed for turnbuckles
• Front & right back anti-roll bars produced from springtime metal material
• Rear 2.6mm sway club increases back traction of vehicle

Steering

• Servo saver moulded from graphite product which will be more resistant and efficient in dusty conditions
• Redesigned steering pivot balls to get rid of wheel lock
• Dual-arm steering system with adjustable Ackermann
• Stronger & reinforced steering ball bones for increased reliability
• Composite graphite shims between steering ball and nut ensure free procedure of pivot balls even in extreme dusty conditions
• incorporated, effortlessly adjustable servo saver
• Swiss 7075 T6 aluminum steering plate
• Quick & effortless Ackermann and bump steer adjustment
• HUDY Spring Steel™ turnbuckles

Shocks

• Big-bore, long-stroke shocks for ultimate reliability and performance
• Shock systems are externally hardcoated
• Shock human anatomy external threading for fast & effortless springtime preload adjustment
• Longer back shock body for improved effectiveness in rough, bumpy conditions
• Robust 3.5mm super-smooth polished shock shafts
• Longer surprise shafts & shock collar for increased downtravel
• Ultra-fine shock protective rubbers for superior sealing against dirt
• Ultra-precise big-bore 6-, 8- and 10-hole shock pistons made from Delrin item for smooth procedure and durability
• Specially-formulated plastic shock membrane layer layer guarantees equal damping
• Shock membranes from softer item for improved shock performance in bumpy conditions
• Lower surprise installation features numerous top-quality silicone O-rings for smooth, free, leak-free operation
• Front & right back surprise springs work a combination of modern & linear rates; the springs are particularly contemporary, but under larger compression they change traits become linear to offer excellent feeling & feedback atlanta divorce or separation proceedings solicitors various track conditions.
• Specially-designed shock springs happen created specifically to use the big-bore shocks
• Shock springs are by hand calculated, plumped for and matched into pairs to be certain correctly equal size and damping characteristics
• HUDY Premium Silicone sebum are stated in European countries by a specialized premium silicone oil manufacturer. Each batch of premium oil is laboratory tested and calibrated to ensure the most perseverance and quality batch-to-batch. Based on the industry-standard cSt rating, the oils will be simple to recognize, adjust, and feel.

Body & Wing

• High-speed human body for improved managing on high-speed songs & with extra rotation in tight corners
• High-quality Lexan™ human anatomy completely fits the car and works generally in most monitor conditions
• Composite component guards protect the automobile, muffler, and vehicle's gas tank from component hits. The medial side guards entirely fit the framework and seal against dirt. Ribs into the remaining component guard protect the automobile's car's vehicle's gas tank from muffler heat.
• Stylish, effective, and strong straight back wing is constructed of strong unique composite combination, built to endure serious abusive and extreme crashes while maintaining its shape
• 40% lighter wing mount with super low CG with dramatically less fat behind a large component suspension system system system system a great deal improves handling characteristics in regards to the automobile and featuringconstruction that permits more flex and features more optimized wing mounting jobs

Assembly & Support

• Premium 3D full-color instructions & additional sheet
• Exclusive Virtual on line Setup Sheet database with 1000s of setup sheets for battle songs within the world
• Premium, unmatched XRAY on the web support

Adjustment Possibilities:

The XB8 features fully-adjustable front side and right back suspension system system geometry. For fast & easy modification, we suggest making use of set-up tools and add-ons from HUDY, our society frontrunner of RC tools.

The considerable and impressive range modification possibilities includes:

• Caster
• Camber
• Toe
• Kick-up
• Anti-dive
• Anti-squat
• Ride height
• Downstops
• Track-width
• Lower roll center
• Upper roll center
• Roll center positions
• Bump steer
• Wheelbase
• Ackermann
• Adjustable shocks
• Adjustable front and right back diffs
• Adjustable XRAY Multi-Flex™

All demands are susceptible to change without past notice. Pre-production model is shown, final requirements may significantly differ. In some images optional components might be shown. All choice elements are not included and needs to be bought individually. Along with of some aluminum elements may differ from kit to kit and several using this kits might perhaps not include all of the orange or black colored elements as shown. Many of the free elements or alternate elements may possibly not be supplied by whenever within the orange or black colored colored color as shown. A number of the pictures reveal colored stickers on wing and radio tray, they've been perhaps not in the kit plus they are present in pictures just for marketing purposes. Your competitors human body inside the industry is apparent and unpainted.
