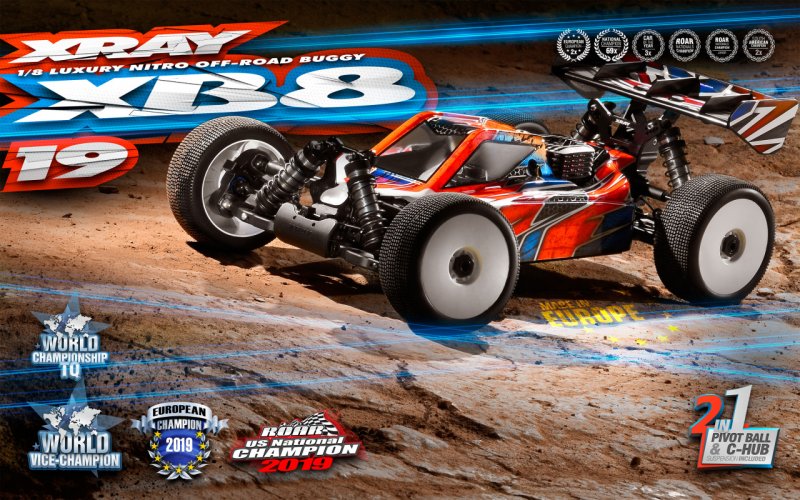

XRAY 350014 XB8 2019 Specs  [XR-350014]

XRAY XB8'19

• All-new framework with additional area between front tires and part guards, amazing functions for straight back brace for improved framework flex faculties and chamfered front edges at a lower price dust pick-up

• All-new framework design is completely suitable between XB8 & XB8E platforms

• All-new 40per cent lighter wing mount with super low CG and significantly less fat behind the trunk suspension system system significantly improves handling faculties pertaining to automobile and featuring all-new construction allows more flex aswell features groundbreaking more optimized wing mounting positions

• All-new right back brace between wing mount and straight back framework brace stops straight back gearbox breakage during impacts aswell moves the transfer of power to different the main chassis

• All-new fat transfer from wing in direction of center with this particular vehicle with just minimal anxiety regarding the straight back diff bulkhead

• All-new back human anatomy holder

• All-new right back surprise tower features two lines of shock absorber mounting jobs plus the updated design permits to fit groundbreaking wing mount and gearbox brace

• All-new harder back reduced hands for increased part safety and enhanced durability in hot conditions

• All-new more powerful & strengthened steering ball bones for increased reliability

• All-new composite graphite shims between steering ball and nut guarantees free procedure of pivot balls in extreme dusty conditions

• All-new enhanced diff O-rings for much more accurate differential sealing

• All-new softer surprise membranes for improved shock performance in bumpy conditions

• Rear CVD drive shafts for increased rear traction

• New 2.6mm back sway bar for increased traction

• All-new exhaust mounting cable with improved fit

• All-new more powerful head screws for diff bulkheads to obtain more reliable

• High-speed human anatomy for improved control on high-speed tracks  & with a rise of rotation in tight corners

Chassis

• CNC-machined chassis made out of 3mm top-notch Swiss 7075 T6 aluminum
• Strategic machining for ultra-light fat and uncompromised power & rigidity
• XRAY Multi-Flex Technology
• Chassis design completely suitable between XB8 & XB8E platforms
• Engine parallel with framework centerline, center diff positioning for straight-line main drive shafts
• Countersunk screw holes on framework base for smooth underside
• Chamfered front edges regarding framework at an inferior price dust pick-up
• Pre-drilled holes for extra balancing weights
• Pre-drilled centerline holes to be utilized with HUDY Chassis Balancing Tool
• 1-piece products installation is compact and a simple task to remove
• Side guards for better security and improved traction
• Chassis braces for increased flex, better traction, and eradication of vibration from suspension
• Rear brace between wing mount and straight back framework brace stops right back gearbox breakage during results aswell moves the transfer of power to different one of the secrets chassis
• Large, easy-access, molded radio box
• Super strong diff bulkheads
• Strong brain screws for diff bulkheads for better dependability
• Composite top deck with optimized flex which results in increased traction and improved steering characteristics.
• Connecting hyperlink between throttle servo and radio field, for eradication of vibrations to chassis and even more accurate throttle & stopping system control.
• Premium Swiss 7075 T6 shock towers.
• Rear surprise tower features two lines of shock absorber mounting jobs

Engine & Clutch

• High-grade, CNC-machined significant aluminum motor mounts for greater reinforcement of framework on longitudinal means, reduce framework bending after jumps
• High-torque clutch for smooth and constant power transfer at high RPM
• Swiss 7075 T6 aluminum flywheel has a little diameter, increased fat for smoother and much more balanced engine operation
• Hard Swiss 7075 T6 aluminum clutch footwear allow smoother engagement
• Extra-tough Hudy Spring steel flywheel nut
• Smooth-flowing, efficient 2-part environment filter
• Extra-strong vehicle's vehicle's gas tank crafted from unique composite combination features a floating stone filter and interior baffles to make sure constant fuel supply
• Fuel tank mounting with synthetic grommets to soak up vibration

Brakes

• Well-proven, superior stopping system for strong, accurate and dependable stopping performance.
• Laser-cut, accuracy flat-ground metal stopping system disk is hand-ground for genuine, wobble-free rotation
• Special high-grip stopping system pads put up on laser-cut stopping system plates
• Rigid, high-precision machined stopping system cam articles

Drivetrain

• Conventional shaft-driven 4WD down road drivetrain
• Large amount front side & straight back gear differential with adjustable oil viscosity featuring 46T top gears and 14T pinion gears
• Large amount primary differential with adjustable oil viscosity featuring big 46T spur gear with standard 13T motor clutchbell
• Front universal drive shafts provide less opposition right ahead at optimum steering angle.
• Rear CVD drive shafts for maximum straight back traction
• Front & straight back primary CVD drive shafts
• All drive shafts produced from HUDY Spring Steel
• Central spacious & strong outdrives function protective rubber footwear, thick 3mm pins, and a protective locking ring
• Ultra-lightweight 17mm wheel hex drive hubs CNC-machined from Swiss 7075 T6 black-coated aluminum
• Full number of 24 high-speed, greased, blue-sealed ball-bearings guarantee maximum effectiveness

Differentials

• Large amount high accuracy front side, main, and rear gear differentials Rubber-sealed composite differential housings with reinforced interior diff gears with a growth of teeth and enhanced enamel profiles
• Differential inside gears produced from forced steel, heat addressed, and machined for ultra‑high precision and smooth operation
• Super-lightweight diff outdrives machined from HUDY Spring Steel™
• Easy usage of center differential
• Center diff housing is sized to steer optional spur gears
• Differential main gears made of HUDY Gear metal

Suspension

• Longer back hands result in the vehicle more straightforward to drive in several track conditions
• Harder back reduced hands increase component security and improves durability in hot conditions
• Pivot ball suspension system system concept in order to avoid binding in dusty conditions, while ensuring stable journey height generally in most traction conditions
• Ultra-robust pivot ball suspension system with integral suspension system system system geometry modification; different kingpin dishes being truly certainly the sole optionally-available tuning parts
• Integrated Suspension system Settings (I.S.S.) for fast & effortless suspension system system system geometry setting
• Suspension fingers with optimal size, depth, freedom, geometry of suspension system system points, and product faculties.
• Suspension arms could be the result of significant design knowledge and exhaustive testing
• Exclusive composite mixtures developed in-house by XRAY offer perfect security between dependability and gratification, rigid enough to produce a responsive feel yet soft sufficient to endure extra-long primary occasions and impact
• Extra-strong & robust front side component top hands look after pivot ball suspension system system system.
• Front top pivot balls are along with steel threaded component for maximum energy; aluminum ball is machined from premium Swiss 7075 T6 and hardcoated for longer lifespan
• 2-pivot ball, super-lightweight composite steering obstructs
• Trailing-axle steering obstructs provide an essential handling enhancement for some monitor conditions, making the car more straightforward to drive and supplying increased ahead traction
• Turnbuckles produced from unique mixture of HUDY Spring Steel™ especially developed for turnbuckles
• Front & backside anti-roll bars made out of springtime metal material
• Rear 2.6mm sway club increases straight back traction about the vehicle

Steering

• Servo saver moulded from graphite item which will be more resistant and efficient in dusty conditions
• Redesigned steering pivot balls to get rid of wheel lock
• Dual-arm steering system with adjustable Ackermann
• Stronger & strengthened steering ball bones for increased reliability
• Composite graphite shims between steering ball and nut guarantee free procedure of pivot balls even yet in extreme dusty conditions
• built-in, effectively adjustable servo saver
• Swiss 7075 T6 aluminum steering plate
• Quick & easy Ackermann and bump steer adjustment
• HUDY Spring Steel™ turnbuckles

Shocks

• Big-bore, long-stroke shocks for ultimate dependability and performance
• Shock figures are externally hardcoated
• Shock human anatomy outside threading for fast & easy springtime preload adjustment
• Longer back shock body for improved effectiveness in rough, bumpy conditions
• Robust 3.5mm super-smooth polished shock shafts
• Longer shock shafts & surprise collar for increased downtravel
• Ultra-fine surprise protective rubbers for superior sealing against dirt
• Ultra-precise big-bore 6-, 8- and 10-hole shock pistons created from Delrin™ product for smooth procedure and durability
• Specially-formulated plastic shock membrane layer layer guarantees equal damping
• Shock membranes from softer item for improved surprise performance in bumpy conditions
• Lower shock installation features numerous top-quality silicone O-rings for smooth, free, leak-free operation
• Front & right back surprise springs function a mixture of modern & linear expenses; the springs are somewhat contemporary, but under larger compression they change faculties to be more linear available exemplary feeling & feedback in many different track conditions.
• Specially-designed shock springs are particularly made to check the big-bore shocks
• Shock springs are by hand determined, selected and matched into pairs to be certain properly equal size and damping characteristics
• HUDY Premium Silicone sebum are stated in European countries by a specialized premium silicone oil manufacturer. Each batch of premium oil is laboratory tested and calibrated to guarantee the utmost persistence and quality batch-to-batch. On the basis of the industry-standard cSt score, the natural oils may be super easy to determine, adjust, and feel.

Body & Wing

• High-speed human body for enhanced control on high-speed songs  & with a growth of rotation in tight corners
• top-notch Lexan body entirely fits the auto and works in several track conditions
• Composite component guards protect the car, muffler, and gas tank from part hits. The medial component guards perfectly fit the framework and seal against dust. Ribs in regards to the remaining component guard protect the vehicle's car's vehicle's gas tank from muffler heat.
• Stylish, effective, and strong right back wing consists of strong unique composite combination, developed to endure serious abusive and extreme crashes while maintaining its shape
• 40percent lighter wing mount with super low CG and a lot less fat behind a huge component suspension system system system system considerably improves managing characteristics of car and featuring construction that enables more flex besides features more optimized wing mounting functions

Assembly & Support

• Premium 3D full-color Recommendations & supplementary sheet
• Exclusive Virtual On The Web Setup Sheet database with thousands of setup sheets for competition tracks through the entire world
• Premium, unmatched XRAY on the web support

Adjustment Possibilities:

The XB8 features fully-adjustable front side and straight back suspension system geometry. For fast & easy modification, we recommend using set-up tools and add-ons from HUDY, the planet earth frontrunner of RC tools.

The considerable and impressive selection of modification possibilities includes:

• Caster
• Camber
• Toe
• Kick-up
• Anti-dive
• Anti-squat
• Ride height
• Downstops
• Track-width
• Lower roll center
• Upper roll center
• Roll center positions
• Bump steer
• Wheelbase
• Ackermann
• Adjustable shocks
• Adjustable front part and straight back diffs
• Adjustable XRAY Multi-Flex

All requirements are prone to change without past notice. Pre-production model is shown, final needs may notably vary. In some photos optional elements may be shown. All option elements aren't included and has now become bought independently. And of some aluminum elements may differ significantly from kit to kit and several in direction of kits might maybe not include all orange or black colored colored elements as shown. Most free elements or option elements is probably not offered by when inside orange or black color as shown. All of the pictures expose colored stickers on wing and radio tray, they truly are not inside the kit because they're present pictures linked with marketing purposes. The rushing human anatomy in package is apparent and unpainted.
